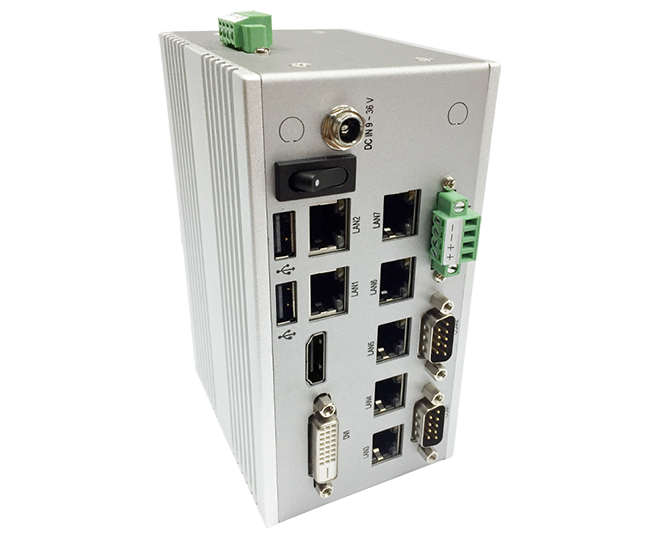

DIN-Rail System

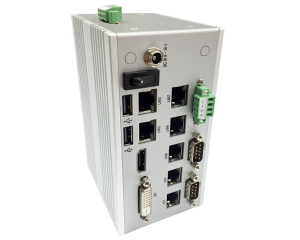

MIRO 2 - eIO 2I390CW + L2L001
Compact Fanless Embedded Computer
with Intel® Apollo Lake Processor
with Intel® Apollo Lake Processor
Features
- Intel® Apollo Lake CPU:
AtomTM E3950, Pentium® N4200, Celeron® N3350 - On Board DDR3L 2 / 4GB
- Independent display: HDMI, DVI
- 7 x Intel GbE LAN, 2 x COM, 2 x USB 2.0
- 2 x Mini PCIe
| MODEL | MIRO 2-eIO 2I390CW + L2L001 |
|
|---|---|---|
| System Dimension(WxDxH) | 140W x 92D x 72H mm | |
| Weight(Incl.M/B) | 0.95 kg | |
| CPU | Intel® Apollo Lake N4200 / N3350 / E3950 CPU | |
| Chipset | Intel Apollo Lake SoC | |
| Memory | DDR3L 2 / 4GB | |
| Storage | mSATA | |
| Expansion slots | 1 x Full-size Mini Card (PCIe / mSATA / USB) 1 x Half-size Mini Card (mSATA / USB) |
|
| I/O ports | Network | 7 x Intel GbE (5 x GbE via L2L001) |
| USB | 2 x USB 2.0 | |
| Serial ports | 2 x COM | |
| Display | 1 x HDMI, 1 x DVI | |
| Optional Modules & Accessory |

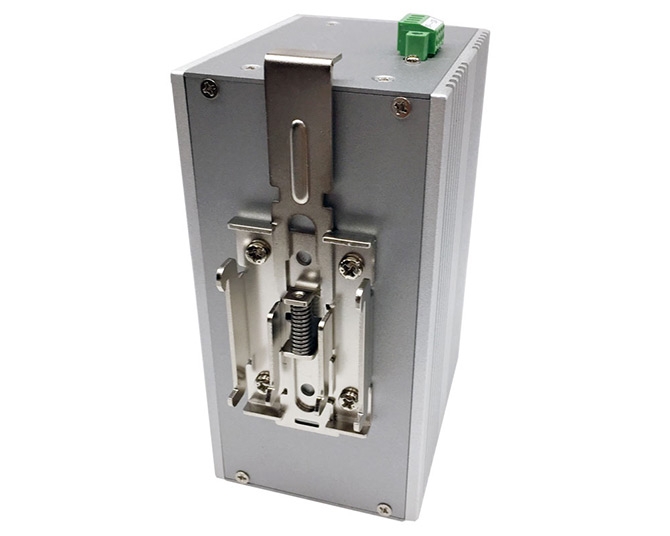

GPS, Bluetooth, WiFi, 4G LTE, DI/O, Isolated COM, *VESA Mount Kit, *DIN Rail Mounting Kit *External Power Adapter |
|
| Power | DC input : +9V~36V AC input : AC-DC External adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT (64bit), Ubuntu 16.04.1 above, Fedora 25 above |
|
