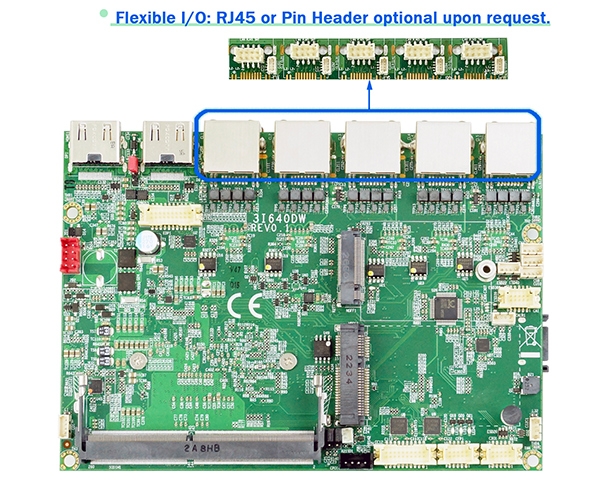

3I640DW
2 x HDMI, eDP, 5 x Intel 2.5 Gb Ethernet, 8 x USB,
2 x COM, 1 x M.2, 1 x Mini PCIe, 1 x Nano SIM, 4DI / 4DO
概览
LEX SYSTEM 3I640DW 为搭载Intel Atom® x6000E和 Celeron® J 系列处理器的 3.5 英寸（146 x 102 毫米）嵌入式主板。 3I640DW 集成 5 个 2.5 GbE LAN、8 个 USB、2 个 COM 端口、2 个 HDMI（可OEM为 DP）显示接口和1个 Mini PCIe, 2 个 M.2 扩展槽，提供使用者整合物联网、即时效能、管理与安全的高阶影像处理平台。 3I640DW 具有出色的处理器性能、5个2.5G千兆乙太网端口和宽电压9-36V DC-IN 功能，对应各种AI 加速器平台和高阶边缘 AI、智能控制、工厂自动化工业 4.0、物联网 (IoT) 和边缘计算应用的理想解决方案。
特点
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- 1 x DDR4 SODIMM, Max. 32GB
- Independent display: 2 x HDMI, eDP
- 5 x Intel 2.5 GbE LAN, 1 x USB 3.0, 7 x USB 2.0
- 2 x COM, 1 x Mini PCIe, 1 x M.2, 1 x Nano SIM
- 4DI / 4DO, TPM 2.0
| MODEL | 3I640DW |
|---|---|
| CPU | Intel® Elkhart Lake ATOM® x6413E / J6412 CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | 1 x DDR4 SODIMM, Max. 32GB |
| Storage | 1 x M.2 B Key Type 2242 SATA-SSD 1 x SATA (share with mSATA) |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI (OEM to DP), eDP |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM 2.0 |
| LAN | 5 x Intel 2.5 GbE I225 / I226 (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier (OEM) |
| Expansion Interface | 1 x M.2 B Key Type3042 (SATA / USB 2.0 / USB 3.0) 1 x Mini PCIe (USB 2.0 / PCIe-OEM to mSATA) 1 x Nano SIM |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT PW351 : 1 port PoE PSE DP001 : eDP to VGA |
| USB | 1 x USB 3.0 (external) ; 3 x USB 2.0 (external) ; 4 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| SMBus | 1 x SMBus |
| I²C | I²C |
| Power Input | DC-IN +12V or Wide Range +9~36V |
| Dimension | 3.5" (146 x 102 mm) |
| Operation Temperature
|
-20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 3, TASK, TWITTER |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
