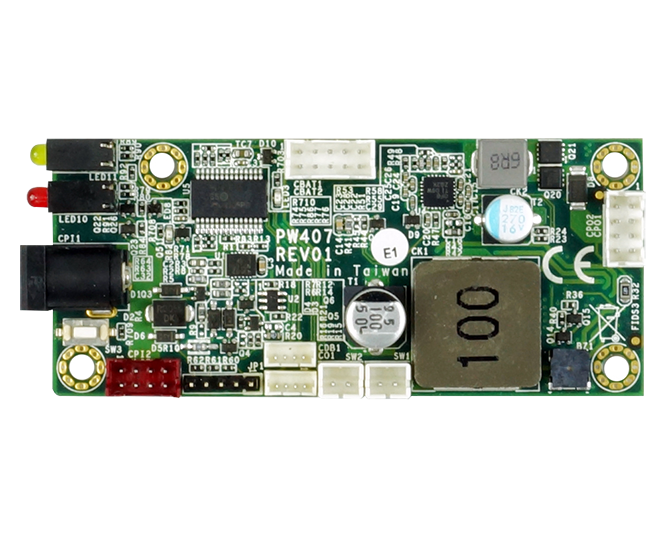

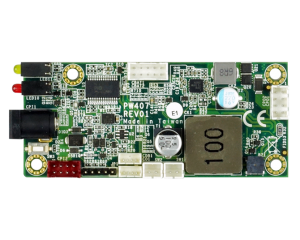

PW407
Smart Wide range input power charger board,
Wide range input voltage power charger board for 8.4V battery,
12V / 24V DC input, output voltage 12V Max. 60W
Wide range input voltage power charger board for 8.4V battery,
12V / 24V DC input, output voltage 12V Max. 60W
Features
- DC Input: 12V / 24V
- Output voltage: 12V / 5A
- Charge current: 2A
- Protections: SCP, OCP, OVP, SVP, UVP, OTP
- Charge Protections: OCCP, ODCP, OTP
- Surge stopper: LTC4356HDE surge stopper.
- Energy Saving mode: Build in a SMART Power controller (MCU)
to disable the battery enter to discharging mode
to save power by BMU SW.
| MODEL | PW407 |
|---|---|
| Type | DC 8.4V Charger board |
| Input | DC Jack & 2 x 4pin wafer |
| Output port | 2 x 4pin & 1 x 4 wafer type |
| Charger Function | SMBus wafer, BAT wafer, SW wafer |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 35 x 80 mm |
