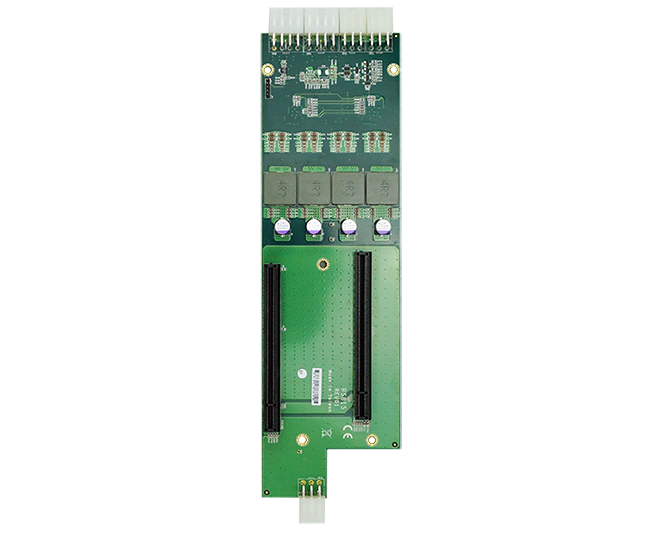

RS815
PCIe x16 Riser card to 1 PCIe x16 Expansion Slot,
Riser card for GPU / Graphics card (max 500 watt) solution
Riser card for GPU / Graphics card (max 500 watt) solution
Features
- Input voltage range: 24V to 36V, typical: 24V
- Output voltage: 12V, maximum output power: 500W.
- Over voltage threshold: > 36V
- Under voltage threshold: < 19V
- RS815 is designed with OVP (Over Voltage Protection) & UVP (Under
Voltage Protection) circuits ; it will stop the power output and send the
signal to LED indicator while overvoltage or under voltage occurs.
The alarm status (disable power output & lighted LED) will clear while
the power voltage is back to normal range and lasts for 10 seconds.
| MODEL | RS815 |
|---|---|
| Function | 500W riser card for 3I470DW / 3I370DW |
| Interface | PCIe x16 |
| Input | DC 24V~36V (ATX 2 x 3pin) |
| Output | DC 12V (ATX 2 x 4 pin) |
| Operating Temperature | -20°C ~ +50°C |
| Dimensions | 74 x 250 mm |
