Capture Card

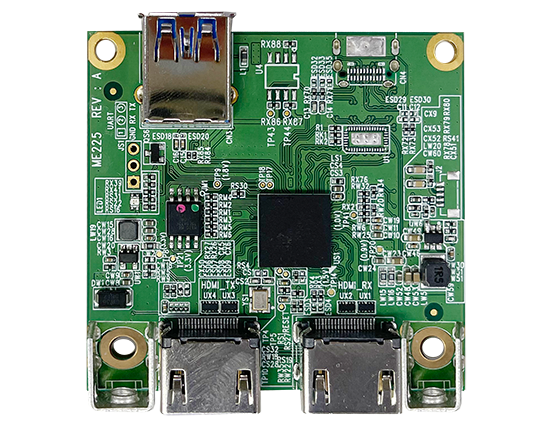

ME225

HDMI video capture card

Overview

The ME225 is built to seamlessly work with both Windows and Mac OS-based IPC systems, offering 4K@30 RAW or 4K@60fps MJPEG video recording from any HDMI device. Whether you're connecting an HDMI camera, AVoIP equipment, PS5, or Xbox, this capture card delivers professional-quality video performance.
With UVC-based driver architecture, the ME225 is fully compatible with popular third-party software like OBS and Potplayer, simplifying video broadcasting and recording. For more advanced users, OBS plugins allow for custom live video setups, offering greater flexibility and a more dynamic broadcasting experience.





Features

  • 4K@60 HDR input and pass-through for superior video quality.
  • 4K@60 MJPEG and 4K@30 RAW capture, offering versatile recording options.
  • HDMI 2.0 variable refresh rate (VRR) support for smoother and more fluid video.
  • Built-in hardware deinterlacing and scaling to
    enhance video clarity and performance.
  • UVC-based driver, ensuring easy plug-and-play compatibility across most systems.
  • Compatible with OBS software, granting quick access to streaming
    and recording tools.
  • HDCP compliant, ensuring support for protected content and secure transmission.
ME225 Datasheet
MODEL ME225
Interface USB 3.0
HDMI Input HDMI 2.0 (up to 4k@60 HDR)
Video pass-through HDMI 2.0 (up to 4k@60 HDR)
2160p60/1440p144/1080p240
Input & pass-through Resolution 3840 x 2160p 60/50/30/25/24Hz
2560 x 1440p 50/30/25/24Hz
1920 x 1080p 120/60/50/30/25/24Hz
1920 x 1080i 60/50Hz
(can be transformed to1080p/720p/576p/480p at UVC output)
1280 x 720p 60/50Hz
Capture ResolutionUSB 3.1 Gen1
NV12  YUY2
3840x2160p 30/25 fps
2560x1440p 60/50/30/25 fps
1920x1080p 120/60/50/30/25 fps
1280x720p 120/60/50/30/25 fps		 2560x1440p 60/50/30/25 fps
1920x1080p 60/50/30/25 fps
1280x720p 60/50/30/25 fps
 MJPEG P010(HDR)
 3840x2160p 60/50/30/25 fps
2560x1440p 120/60/50/30/25 fps
1920x1080p 120/60/50/30/25 fps
1280x720p 120/60/50/30/25 fps		  1920x1080p 60/50/30/25 fps


USB 2.0
NV12  MJPEG
 1280x720p 30/25 fps
720x576p 50/25 fps
720x480p 60/30 fps
640x480p 60/30 fps		  1920x1080p 60/50/30/25 fps
1280x720p 60/50/30/25 fps
720x576p 50/25 fps
720x480p 60/30 fps
640x480p 60/30 fps
HDMI Color format RGB/YUV444/YUV422/YUV420
UVC Output Format :
NV12, YUY2, MJPEG, P010

Compression :
Raw data or compressed (MJPEG)

HDR :
Support 2160p 10 bit HDR recording
Support 2160p 10 bit HDR→
1080p 8 bit SDR
Audio Sampling Input :
Support 32KHz/44.1KHz/48KHz (output 48KHz to UAC)
Operation Temp. 0°C ~ +70°C
Dimension 59 x 55 mm
