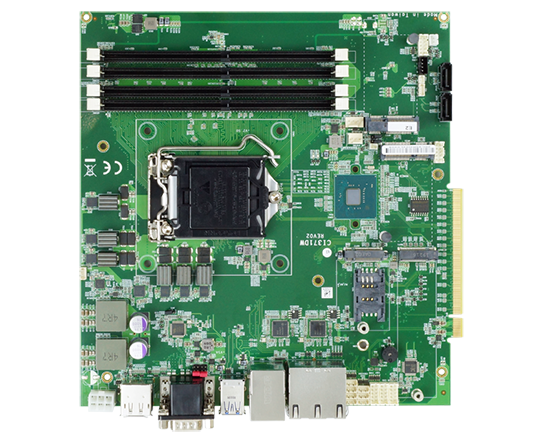

CI371D
Coffee Lake-S, i9 / (65W) i7 / i5 / i3,
Pentium / Celeron CPU, Intel® Q370 chipset,
DP, HDMI, 5 x Intel Gb Ethernet, 11 x USB, 2 x COM, 8DI / 8DO,
2 x Mini PCIe, 1 x PCIe, 1 x SIM, 2 x M.2, SMBus
Overview
LEX SYSTEM CI371D, with Intel 9th/8th Gen Coffee Lake-S Core i CPU integrated with HDMI & DP independent display, 5 x GbE, 4 x USB 3.1, 7 x USB 2.0, 2 x RS232/422/485,2 x SATA.
Plus with 2 x Mini PCIe and 1 x PCIe x16, 1 x SIM & 2 x M.2 expansion, CI371D is designed for harsh environments, automation, machine vision, industrial communication, military and intelligent transportation applications.
Features
- 8th / 9th Gen Intel® Coffee Lake-S,
i9 (65W) i7 / i5 / i3 / Pentium / Celeron CPU - Intel® Q370
- 4 x DDR4 UDIMM, Max. 128GB
- Multiple Independent display: DP & HDMI
- 5 x Intel GbE LAN, 4 x USB 3.1, 7 x USB 2.0, 8DI / 8DO
- 2 x COM, 2 x Mini PCIe, 1 x PCIe, 1 x SIM, 2 x M.2, SMBus
- TPM 2.0
| MODEL | CI371D |
|---|---|
| CPU | 8th / 9th Gen Intel® Coffee Lake-S, i9(65W) i7 / i5 / i3 / Pentium / Celeron CPU |
| MB Chipset | Intel® Q370 |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 4 x DDR4 UDIMM, Max. 128GB |
| Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 2 x mini card socket for mSATA 1 x M.2 M key Type 2280 (PCIe x4 + mSATA ) 1 x M.2 B key Type 3042 / 3052 / 2280 (PCIe x2 / mSATA / USB 3.0 / USB 2.0) |
| BIOS | AMI UEFI BIOS |
| Display | 1 x DP, 1 x HDMI |
| TPM | TPM 2.0 |
| LAN | 1 x Intel GbE I219LM (external), 4 x Intel 2.5 GbE I225-V (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x PCIe x16 1 x M.2 M key Type 2280 (PCIe x4 + mSATA) 1 x M.2 B key Type 3042 / 3052 / 2280 (PCIe x2 / mSATA / USB 3.0 / USB 2.0) 1 x SIM (M.2 B Key) |
| Expansion Module |
PCIe Card via riser Card : 2 x USB 3.1, 2 x 10 GbE LAN, 4 x PoE, 4 x GbE Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT |
| USB | 4 x USB 3.1 (external), 7 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
2 x RS232 / 422 / 485 (external) *COM1, COM2 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | DC IN +24V |
| Dimension | 217 x 223 mm |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 8700T / i7 8700) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support | Windows® 10 IOT (64bit), Ubuntu 18.04.2 above, Fedora 29 above |
| Chassis (OEM I/O Expansion by request) | Box PC: 1U |
