UPS motherboard

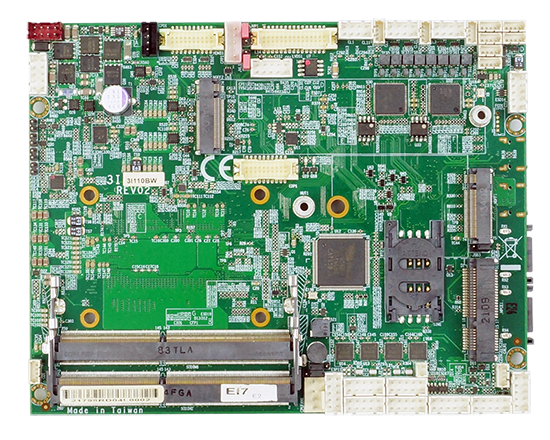

3I110HW / 3I110BW
i7 / i5 / i3 / Celeron CPU, VGA, HDMI (or DP),
eDP / LVDS, 3 x Intel Gb Ethernet,
Audio, 2 x M.2, Touch Screen controller, 4DI / 4DO, 6 x USB,
4 x COM, 1 x Mini PCIe, 1 x SIM, Battery Charger, SMBus
Overview
LEX SYSTEM 3.5” Plus Industrial embedded board3I110HW/BW is with 11th Gen. Intel® Tiger Lake-UP3 i7/i5/i3/Celeron processor which offers users powerful and flexible solution for industrial and embedded applications. 3I110HW/BW, equipped with 3 x GbE, 4 x RS232/RS422/485 serial ports, 7 x USB, 4 DI /4 DO, DP, HDMI ,VGA & LVDS with 1 x mPCIe, 2 x M.2 and 1 x SIM expansion slots. 3I110HW/BW's all wafer IO design delivers high flexibility toward expanded functions & and also provides user hassle-free solution of integrating the SBC board within various mechanical enclosures. Plus with battery charger features make this platform well suited for reliability and mobility constrained AIoT applications, such as Medical Video Analysis, Intelligent Transportation, Factory Automation and Edge AI solutions.
Features
- 11th Gen Intel® Tiger Lake-UP3,
i7 / i5 / i3 / Celeron CPU - 2 x DDR4 SODIMM (Max. 64GB)
- Multiple Independent display:
VGA, HDMI (or DP), eDP or LVDS - 3 x Intel GbE LAN, 6 x USB 2.0
- 4 x COM, 4DI / 4DO, 1 x Mini PCIe, 1 x SIM
- 1 x M.2 B Key, 1 x M.2 M Key
- TPM 2.0 (Firmware), SMBus
- Battery Charger Function (3I110BW)
- OEM Option:
DP (Type C),
1 x PCIe x 1 (Type C*)
*LEX-defined Type C pin configuration
MODEL | 3I110HW / 3I110BW |
---|---|
CPU Type | Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU |
MB Chipset | Intel® Tiger Lake-UP3 SoC |
Graphics | Intel® Iris® Xe Graphics and media encode / decode engine Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
System Memory | 2 x DDR4 SODIMM, Max 64GB |
Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 3042 (PCIe x2 / mSATA / USB 3.0 / 2.0)-share SATA2 1 x M.2 M key Type 2280 (PCIe x4), Support NVMe |
BIOS | AMI UEFI BIOS |
Display | 1 x VGA, 1 x HDMI (or DP), eDP or Dual Channel, 48 bits LVDS |
Touch | USB touch screen controller |
TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
LAN | 1 x Intel GbE I219LM (internal) 2 x Intel 2.5 GbE I225-IT (internal) w/Core CPU or 2X I225-V w/Celeron CPU |
Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
Expansion Interface | 1 x Full size Mini PCIe (PCIe / USB 2.0) 1 x M.2 B key Type 3042 (PCIe x2 / mSATA / USB 3.0 / 2.0) 1 x M.2 M key Type 2280 (PCIe x4), Support NVMe 1 x SIM |
Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
USB | 6 x USB 2.0 (internal) |
Serial IO |
4 x RS232 / 422 / 485 (internal) *COM1~COM4 pin9 5V / 12V (Option) |
GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
SMBus | 1 x SMBus |
WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
Power Input | Wide Range +9~36V ; Battery Charger function (3I110BW) |
Dimension | 3.5" Plus (146 x 115 mm) |
Operation Temperature (100 % CPU Usage) |
-40°C~+70°C (Core i GRE series CPU) -20°C~+70°C (Core i G7E / G7 series CPU) |
Operation Humidity | 5~95%, non-condensing |
Chassis (OEM I/O Expansion by request) | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
