Single Board Computer

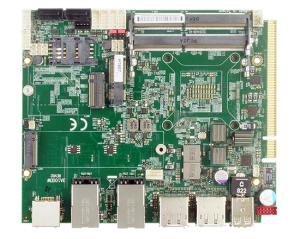

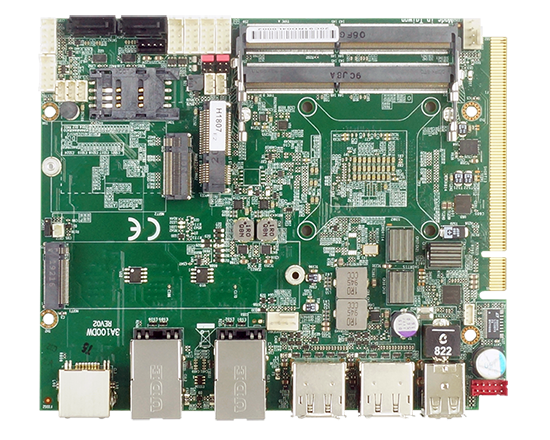

3A100DW-V
3.5" Plus SBC AMD® Ryzen™ Embedded V1000 Series SoC
With Four Independent 4K Display
2 x HDMI, 2 x DP, 3 x GbE, 7 x USB, 8DI / 8DO,
2 x COM, 1 x Mini PCIe, 2 x SIM, 2 x M.2, 1 x PCIe, SMBus
With Four Independent 4K Display
2 x HDMI, 2 x DP, 3 x GbE, 7 x USB, 8DI / 8DO,
2 x COM, 1 x Mini PCIe, 2 x SIM, 2 x M.2, 1 x PCIe, SMBus
Features
| |
- AMD® Ryzen™ Embedded V1000 Series SoC
AMD® V 1807B 3.35 GHz (Quad Core), TDP 35-54 Watt
AMD® V 1404I 2.0 GHz (Quad Core), TDP12-25 Watt - 2 x DDR4 SODIMM socket, Max. 32GB
- Multiple Independent display: 2 x HDMI, 2 x DP
- 3 x Intel GbE, 2 x USB 3.1, 5 x USB 2.0, 2 x COM
- 8DI / 8DO, 1 x Mini PCIe, 2 x M.2, 1 x PCIe, 2 x SIM, SMBus
- TPM 2.0 (Optional)
| MODEL | 3A100DW-V |
|---|---|
| CPU Type | AMD® Ryzen™ Embedded V1000 Series SoC AMD® V1807B 3.35 GHz up to 3.8 GHz (Quad Core), TDP 35-54 Watt AMD® V1404I 2.0 GHz up to 3.6 GHz (Quad Core), TDP12-25 Watt |
| MB Chipset | AMD® Ryzen™ Embedded V1000 Series SoC |
| Graphics | AMD Raden™ Vega 8 integrated |
| System Memory | 2 x DDR4 2400 MHz SODIMM, Max. 32GB (V1807B CPU supports single bank 3200 MHz memory) |
| Storage | 1 x M.2 M Key, Type 2280 (PCIe x 4), Support NVMe 1 x M.2 B Key, Type 3042 (PCIe / mSATA / USB) 1 x mini card socket (PCIe / mSATA / USB) 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s), optional to 2 x mSATA |
| BIOS | AMI UEFI BIOS |
| Display | 2 x HDMI, 2 x DP |
| TPM | TPM 2.0 (Option) |
| LAN | 3 x Intel GbE (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) + 1 x Nano SIM 1 x PCIe x 16 Golden finger (support PCIe x 4 signal only) 1 x M.2 M Key, Type 2280 (PCIe x 4), Support NVMe 1 x M.2 B Key, Type 3042 (PCIe / mSATA / USB) + 1 x SIM |
| Expansion Module |
PCIe Card via Backplanes : 2 x USB 3.1, 2 x 10 GbE LAN, 4 x PoE, 4 x GbE Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT |
| USB | 2 x USB 3.1 (external) ; 2 x USB 2.0 (external), 3 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +12V~24V |
| Dimension | 155 x 130 mm |
| Operation Temperature | -20°C~70°C (100% CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: PALM |
| OS Support | Windows® 10 IOT (64bit), Ubuntu 18.04.2 above, Fedora 29 above |
