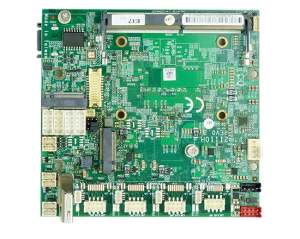

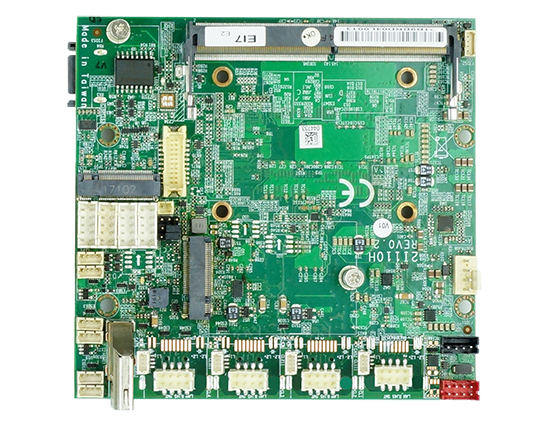

Single Board Computer
2I110H
2.5" Plus SBC supports Intel® 11th Gen Tiger Lake-UP3 i7 / i5 / i3, Celeron CPU,
HDMI, eDP, 4 x Intel Gb Ethernet, 2 x M.2, 1 x Nano SIM
4DI / 4DO, 3 x USB 3.2, 6 x USB 2.0, 2 x COM, SMBus
HDMI, eDP, 4 x Intel Gb Ethernet, 2 x M.2, 1 x Nano SIM
4DI / 4DO, 3 x USB 3.2, 6 x USB 2.0, 2 x COM, SMBus
Overview
LEX SYSTEM 2I110H is the 2.5" SBC with 11th Gen Intel® Tiger Lake-UP3 i7/i5/i3/Celeron processor designed for AI computing. The 2I110H combines Intel's new graphics architecture and up to 32GB DDR4 memory to ensure improved graphics performance. The 2I110H also provides high-speed 4 x GbE LAN ports (3 x 2.5G and 1x GbE) as wafer type I/O ports & 3 x USB 3.2, 6 x USB 2.0 , 2 x serial ports and M.2 B-key with Nano SIM, M.2 M -key supports NVMe with high flexibility toward expanded functions & and also provides user hassle-free solution of integrating the SBC board within various mechanical enclosures.
Features
- 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
- 1 x DDR4 SODIMM (Max. 32GB)
- Multiple Independent display: eDP, 1 x HDMI
- 4 x Intel GbE LAN, 3 x USB 3.2 (type A), 6 x USB 2.0
- 2 x COM, 4DI / 4DO, 1 x Nano SIM
- 1 x M.2 B Key, 1 x M.2 M Key
- TPM 2.0, SMBus
| MODEL | 2I110H |
|---|---|
| CPU | Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Tiger Lake-UP3 SoC |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.0 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI, 1 x eDP ; optional to VGA or DVI or HDMI |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 1 x Intel GbE I219LM (internal) 3 x Intel 2.5 GbE I225 (internal) |
| Expansion Interface | 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0), 1 x Nano SIM 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 3 x USB 3.2 (Type A) 6 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) ; eSPI *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | DC IN +12V |
| Dimension | 2.5" Plus (108 x 102 mm) |
| Operation Temperature
|
-40°C~+70°C (Core i GRE series CPU) -20°C~+70°C (Core i G7E / G7 series CPU) |
| Operation Humidity | 5~95%, non-condensing |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
