2I640PW
Pico Express Computer on Module supports
Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
HDMI, LVDS, 2 x Intel 2.5 Gb Ethernet, 7 x USB, Touch Screen,
4 x COM, 1 x M.2,1 x Mini PCIe, HD Audio, 4DI / 4DO
Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
HDMI, LVDS, 2 x Intel 2.5 Gb Ethernet, 7 x USB, Touch Screen,
4 x COM, 1 x M.2,1 x Mini PCIe, HD Audio, 4DI / 4DO
Overview

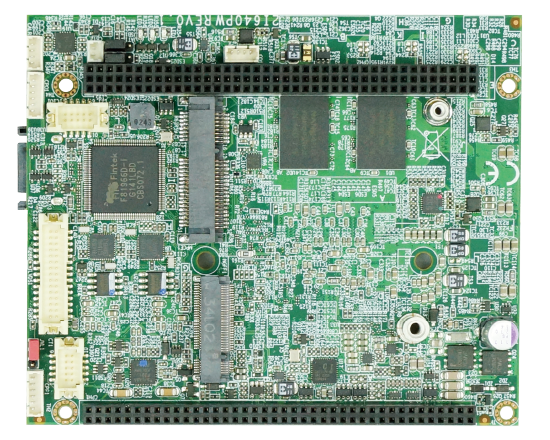

LEX SYSTEM 2I640PW is a next-generation compact computer module (102 x 85mm) equipped with the Intel Atom® x6000E series processor, LPDDR4 onboard memory, and Pico-Express technology connector. Connecting to the carrier board via LEX Pico-Express pin-connectors, it provides HDMI, LVDS, VGA, 2 x Intel 2.5GbE, 4 x COM, 2 x USB 3.0, 5 x USB 2.0, 1 x Mini PCIe, 1 x M.2, 1 x PCIe x1, and 1 x PCIe x2 for efficient I/O expansion. With a focus on low power consumption, flexibility, and rapid development, the 2I640PW allows for the creation of tailored I/O carrier boards for diverse industries, making it an ideal platform for fanless industrial IoT applications, including industrial automation, military, and transportation.
Features
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- On Board LPDDR4 4GB or 8GB
- Independent display: 1 x HDMI, 1 x LVDS, 1 x VGA
- 2 x Intel 2.5 GbE LAN, 2 x USB 3.0, 5 x USB 2.0
- 4 x COM, 1 x Mini PCIe, 1 x M.2
- 1 x PCIe x1, 1 x PCIe x2 (Pico-Express)
- Touch Screen, HD Audio, 4DI / 4DO
- TPM 2.0
| MODEL | 2I640PW |
|---|---|
| CPU | Intel® Elkhart Lake ATOM® x6413E / J6412 CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | On Board LPDDR4, 4GB or 8GB |
| Storage | 1 x M.2 B Key-SSD 1 x SATA |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x HDMI, 1 x VGA, 18 / 24bits 2-channel LVDS |
| Touch | USB interface Touch Screen controller |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 2 x Intel 2.5 GbE I226 (internal) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x M.2 B Key Type 3042 (USB 2.0 / PCIe / SATA) 1 x Mini PCIe (USB 2.0 / PCIe) 1 x PCIe x1 & 1 x PCIe x2 of Pico Express 200-pin connector |
| Expansion Module IO expanded via 160-200 pin connector Carrier Board: | DK001 : DVI, VGA, 5 x USB, 2 x LAN, 4 x COM, 4 x Mini PCIe, 4 x SIM DK002 : HDMI, VGA, 5 x USB, 2 x LAN, 4 x COM, 2 x Mini PCIe, 2 x SIM DK005 : HDMI, VGA, 5 x USB, 4 x COM, 8 x PoE, 1 x GbE, 4 x Mini PCIe, 2 x SIM DK006 : VGA, 5 x USB, 2 x LAN, 4 x COM, 4 x BNC Board DK007 : VGA, 5 x USB, 4 x COM, 2 x PoE, 2 x Mini PCIe, 2 x SIM DM001 : M12 Board (mini HDMI, VGA, 2 x USB, 4 x COM, 8 x PoE, 1 x GbE, 3 x Mini PCIe, 1 x SIM) DM002 : M12 Board (mini HDMI, VGA, 2 x USB, 4 x COM, 2 x GbE, 1 x Mini PCIe, 1 x SIM) DK008 : HDMI, VGA, 2 x LAN, 5 x USB, 4 x COM, 1 x mini card, 1 x M.2 B-Key 3042 / 2280, Audio |
| USB | 2 x USB 3.0 ; 5 x USB 2.0 |
| Serial IO | 4 x RS232 / 422 / 485 |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| I²C | 1 x I²C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| PS2 KB/MS | PS2 Keyboard / Mouse |
| Power Input | Wide Range +9~36V |
| Dimension | 2.5" Plus (102 x 85 mm) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (100 % CPU Usage) ; -40°C by OEM |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
Box PC: TERA, SKY 2, ARK |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
