Computer-on-Module

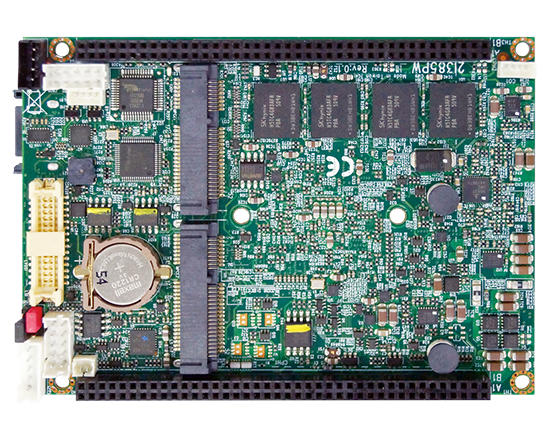

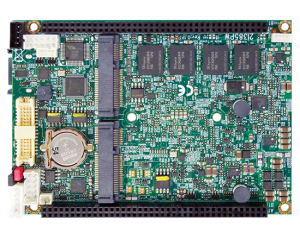

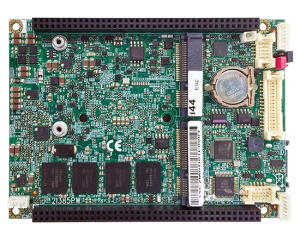

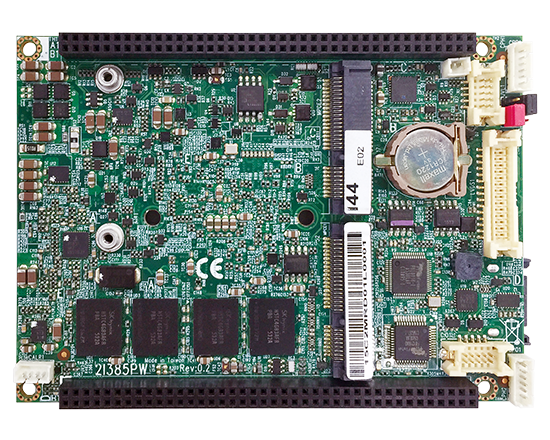

2I385PW

Pico Express Computer on Module supports,
Intel® Bay Trail Atom / Celeron CPU,
VGA, HDMI, LVDS, Touch, 2 x Intel Gb Ethernet,
4DI / 4DO, 6 x USB, 4 x COM, 2 x Mini PCIe, 1 x PCIe

Features

  • Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
    Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
    Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core)
  • On Board DDR3L 1066 / 1333 MHz 2GB / 4GB
  • Multiple Independent display: VGA, HDMI & LVDS
  • 2 x Intel GbE LAN, 1 x USB 3.0, 5 x USB 2.0
  • 4 x COM, 4DI / 4DO, 2 x Mini PCIe, 1 x PCIe

Watch Video

2I385PW Datasheet
MODEL 2I385PW
CPU Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core)
MB Chipset Intel® Bay Trail SoC
Graphics Intel Gen7 graphic engine
DirectX11, OpenGL3.2, OpenCL1.1 ; Full HW acceleration,
decode: H.264, MPEG 2 / 4, VC-1, WMV9. Encode: H.264, MPEG2
System Memory On Board DDR3L 1066 / 1333 MHz 2GB / 4GB
Storage 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s), Share with mSATA 2
2 x mini card socket for mSATA
BIOS Insyde UEFI BIOS
Display 1 x VGA, 1 x HDMI, Dual Channel, 48 bits LVDS
Touch COM touch screen controller
LAN 2 x Intel GbE (internal)
Audio High Definition Audio Specification, Support Line-out / Mic-in / Line-in
Two channel Class D Audio Amplifier
Expansion Interface 1 x Full size Mini PCIe (PCIe / mSATA / USB)
1 x Full size Mini PCIe (mSATA)
1 x PCIe 1x
Pico Express 160-pin connector
Expansion Module IO expanded via 160-pin connector
Carrier Board :
DK001: DVI, VGA, 5 x USB, 2 x LAN, 4 x COM, 4 x Mini PCIe, 4 x SIM
DK002: HDMI, VGA, 5 x USB, 2 x LAN, 4 x COM, 2 x Mini PCIe, 2 x SIM
DK006: VGA, 5 x USB, 2 x LAN, 4 x COM, 4 x BNC Board
DK007: VGA, 5 x USB, 4 x COM, 2 x PoE, 2 x Mini PCIe, 2 x SIM
DM002: M12 Board (mini HDMI, VGA, 2 x USB, 4 x COM, 2 x GbE, 1 x Mini PCIe, 1 x SIM)
USB 1 x USB 3.0 (internal), 5 x USB 2.0 (internal)
Serial IO 4 x RS232 / 422 / 485 (internal)
GPIO Hardware digital Input & Output, 4 x DI / 4 x DO
WDT Hardware Watch Dog Timer, 0~255 sec programmable
PS2 KB / MS PS2 KB / MS
Power Input Wide Range +9~36V
Dimension Pico-ITX 2.5" (102 x 73 mm)
Operation Temperature -20°C~70°C (100 % CPU Usage)
Operation Humidity 5~95%, non-condensing
MTBF 45℃ @ >100,000Hr
OS Support Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above

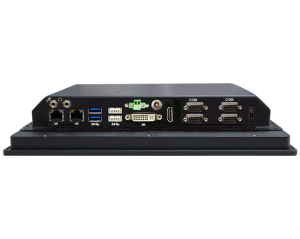

Chassis (OEM I/O Expansion by request) Box PC: TWIN, TINO, ARK-I
