NET-II 2N8MP01
Compact Fanless Embedded Computer
with NXP i.MX8M Plus Processor
with NXP i.MX8M Plus Processor
Overview

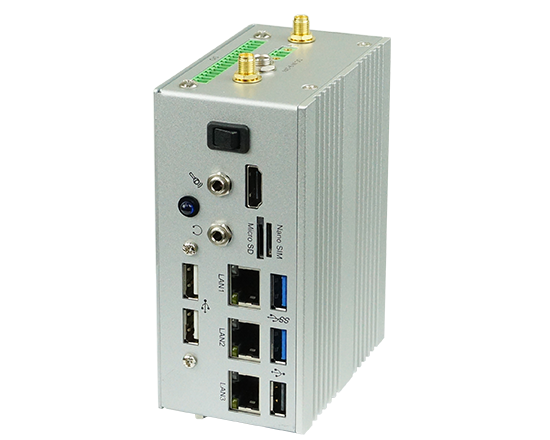

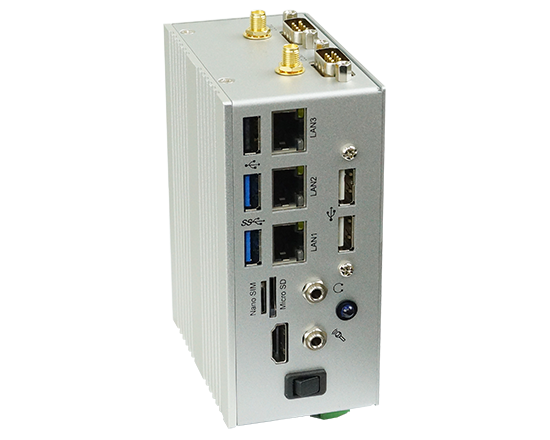

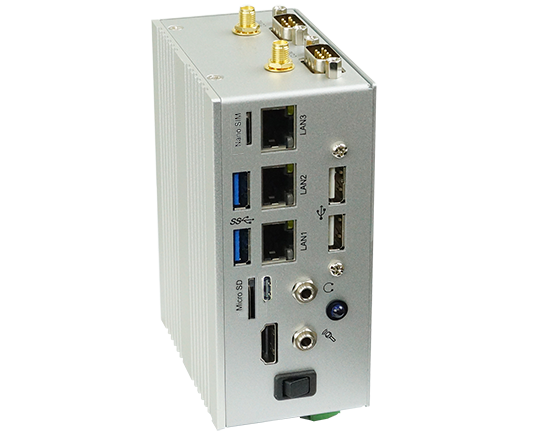

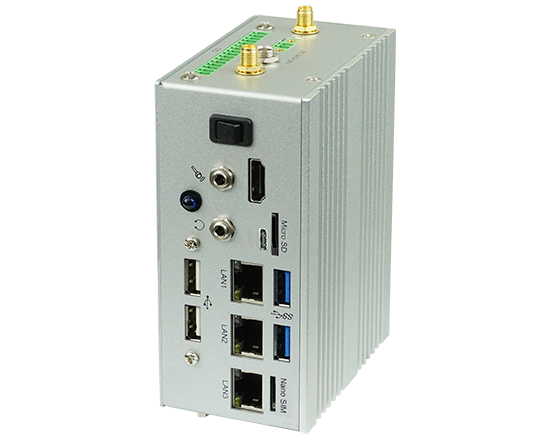

NET-II 2N8MP01 is an extremely compact fanless DIN-Rail computer with dimensions measuring just 120W x 90D x 55H mm. It features NXP i.MX8M Plus (Quad-core) ARM Cortex A53 processor & onboard 4GB /8GB LPDDR4 for space-restricted applications such as factory data collection, AIoT , Machine Learning and Edge gateway. NET-II 2N8MP01 integrated 3 x LAN,5 x USB, 2 x COM Port , 1 x HDMI, 1 x Mirco SD, 1 x Nano SIM and 3 x M.2 expansion slot offers the ideal platform projects that require space-constrained edge computing applications for intelligent robotic control, smart traffic, smart medical, visual inspection and analysis.
Features
- NXP i.MX8M Plus (Quad core) ARM Cortex A53
+ M7 processor - On Board LPDDR4, 4GB / 8GB
- HDMI®, HD Audio, 1 x Micro SD
- 3 x GbE LAN, 2 x USB 3.0, 2 x USB 2.0
- 1 x Type C USB 3.0 / 2.0 (OTG)
- 3 x M.2, 1 x Nano SIM, 2 x COM
| MODEL | NET-II 2N8MP01 | |
|---|---|---|
| System Dimension(WxDxH) | 120W x 90D x 55H mm | |
| Weight(Incl.M/B) | 0.7 kg | |
| Mounting | DIN-Rail Mount* | |
| CPU | NXP i.MX8M Plus (Quad core) ARM Cortex A53 + M7 processor |
|
| Chipset | Vivante GC700UL GPU | |
| Memory | LPDDR4, 4GB / 8GB | |
| Storage | 64GB eMMC 5.1, 1 x Micro SD, M.2-SSD | |
| Expansion slots | 1 x M.2 B Key 3042 / 3052 (USB 3.0 / 2.0) 1 x M.2 E Key 2230 (SDIO) 1 x M.2 B Key 2242 / 2280 (PCIe x1) 1 x Nano SIM |
|
| I/O ports | Network | 2 x GbE (RTL8211) + 1 x LAN 7800 |
| USB | 2 x USB 3.0 2 x USB 2.0 1 x Type C USB 3.0 / 2.0 (OTG) |
|
| DI/O | 6DI / 6DO (Option) | |
| Audio | Mic-in / Line-out | |
| Series Port | 1 x RS422, 1 x RS485, 1 x CANBus (Option) |
|
| Display | 1 x HDMI® | |
| Power | DC input : Wide Range +9~24V | |
| Operating Temp. (100 % CPU usage) |
-40°C to +65°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Linux | |
