Embedded Box PC
PALM - 2NOR02
Compact Fanless AI Box:
NVIDIA® Jetson Orin™ SoM + 2NOR02
NVIDIA® Jetson Orin™ SoM + 2NOR02
Overview

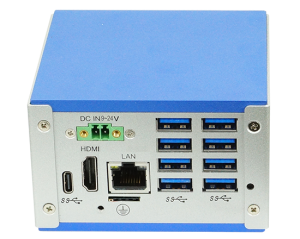

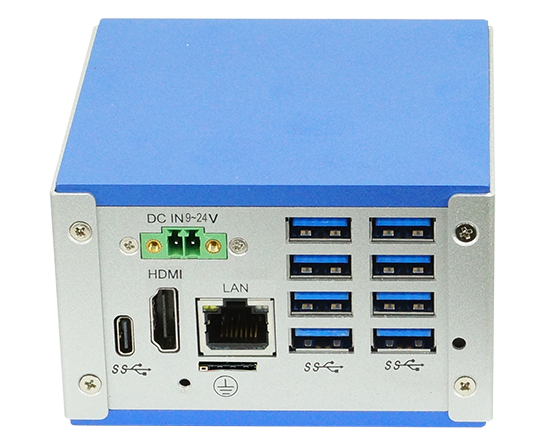

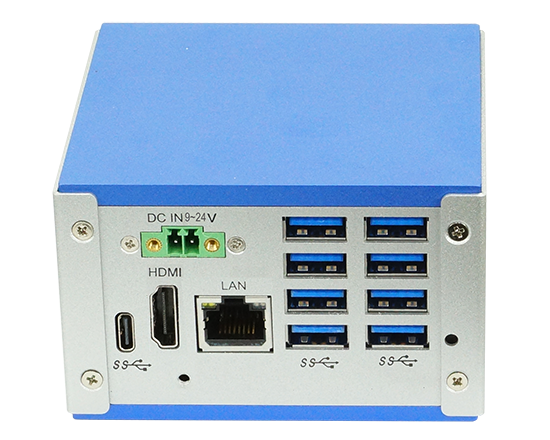

The PALM 2NOR02 is an ultra-compact Edge AI system, measuring 90W x 88D x 56.6H mm and weighing 535g. Powered by NVIDIA Jetson Orin NX / Nano (Super) modules, it delivers outstanding AI performance ranging from 40 to 100 TOPS at the edge. Purpose-built for compute-intensive AI video applications, the PALM 2NOR02 offers a rich set of I/O interfaces, including 1 x GbE, HDMI®, 8 x USB 3.1, 1 x USB Type-C (USB 3.1/2.0 OTG), 2 x M.2 slots, and Nano SIM connectors. With support for wide-range DC-IN power input, the PALM 2NOR02 is the ideal choice for deploying high-performance AI video solutions and addressing the evolving demands of Edge AI applications.
Features
CPU Board :
- NVIDIA Jetson Orin Nano (Super):
4 / 8GB LPDDR5, 20 / 40 TOPs - NVIDIA Jetson Orin NX:
8 / 16GB LPDDR5, 70 / 100 TOPs - 1 x HDMI®, 1 x GbE, 8 x USB 3.1, 1 x Type C USB 3.1 / 2.0 (OTG)
- 1 x M.2 M key, 1 x M.2 B key, 1 x Nano SIM
| MODEL | PALM - 2NOR02 | |
|---|---|---|
| Motherboard | NVIDIA® Jetson Orin™ SOM + 2NOR02 | |
| Dimension(WxDxH) | 90W x 88D x 60.6H mm | |
| Weight(Incl.M/B) | 535 g | |
| Mounting | System Mount* | |
| CPU | 8-core Arm® Cortex®-A78AE 2.0 GHz 6-core Arm® Cortex®-A78AE 1.5 Ghz |
|
| AI Accelerator | NVIDIA Jetson Orin NX: 70 / 100 TOPs NVIDIA Jetson Orin Nano (Super): 20 / 40 TOPs |
|
| Memory | Jetson Orin NX: LPDDR5, 8 / 16GB Jetson Orin Nano (Super): LPDDR5, 4 / 8GB |
|
| Storage | M.2 SSD | |
| M.2 | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe 1 x M.2 B key Type 3042 (PCIe x 2 / USB 2.0) |
|
| I/O ports | Network | 1 x GbE |
| USB | 8 x USB 3.1 (external) ; 1 x USB 3.0 / 2.0 (Type C, OTG) |
|
| Display | 1 x HDMI® | |
| SIM | 1 x Nano SIM | |
| Optional Modules & Accessory |
M.2 Module: PCIe System Mouniting Kit |
|
| Power | DC input : DC-IN +9~24V | |
| Operating Temp. (100 % CPU usage) |
TBD | |
| Storage Temp. | TBD | |
| Relative Humidity | TBD | |
