Embedded Box PC

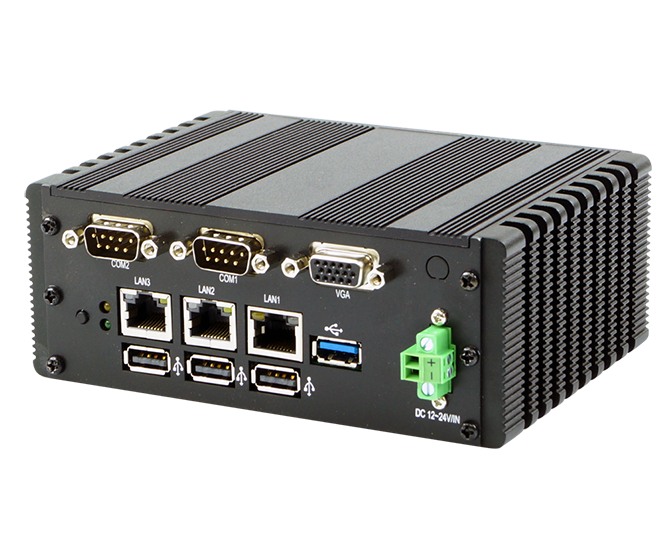

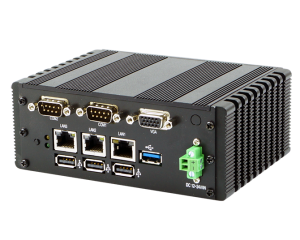

TERA 2I380D
Compact Fanless Embedded Computer
with Intel® Bay Trail Processor
with Intel® Bay Trail Processor
Features
- Intel® Bay Trail CPU: Atom™ E3845 / E3825, Celeron® J1900
- On Board DDR3L 2 / 4GB
- 3 x GbE, 2 x COM, VGA, 4 x USB
- Wide Range 12~24V DC input
| MODEL | TERA 2I380D | |
|---|---|---|
| System Dimension(WxDxH) | 145W x 106.2D x 56.5H mm | |
| Weight(Incl.M/B) | 0.9 kg | |
| CPU | Intel® Bay Trail E3845 / E3825 / J1900 | |
| Chipset | Intel® Bay Trail SoC | |
| Memory | On Board DDR3L 2 / 4GB | |
| Storage | M.2, mSATA | |
| Expansion slots | 1 x Full-size Mini PCIe (PCIe / USB / mSATA) 1 x M.2 B Key (SATA) |
|
| I/O ports | Network | 3 x Intel GbE |
| USB | 1 x USB 3.0, 3 x USB 2.0 | |
| Serial ports | 2 x COM | |
| Display | 1 x VGA | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input VESA Mount*, Wall Mount* |
|
| Power | DC input : +12~24V AC input : External AC / DC adapter 100 / 240V 30W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA / SSD 0°C to +50°C with HDD |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
|
