HAWK - 3I130DW
13th Gen Intel® Raptor Lake-U/P Processor
Overview

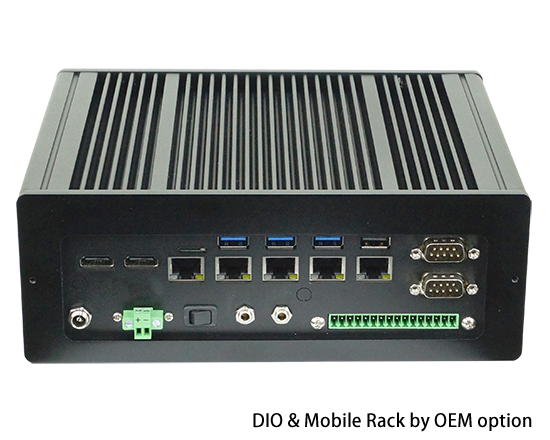

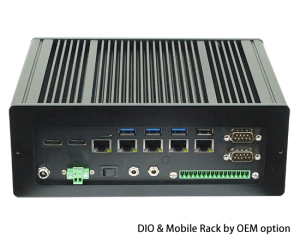

HAWK 3I130DW is a fanless embedded computer with dimensions measuring at 220W x 180D x 80H mm. It features with 13th Gen Intel(r) Raptor Lake-P/U & 12th Intel(r) Alder Lake-P/U i7/i5/i3 processor and is designed for delivering high performance Edge AI solutions. HAWK 3I130DW is equipped with multiple I/O: 2 x HDMI, 5 x 2.5 Gb Ethernet ports, 3 x USB 3.2 ports, 1 x USB 2.0 ports , HD Audio and 2 x COM ports and optional digital I/Os for industrial communication and control. In addition, by adopting M.2 & Mini PCIe slots, HAWK 3I130DW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission and features comprehensive storage options including one 2.5” mobile rack Bays for AIoT and edge gateway applications. The attributes of high performance with compact & rugged mechanical design also make HAWK 3I130DW an ideal Edge AI solution for visual inspection, Video analysis, smart traffic, smart factory, intelligent medical application projects that require advanced computing at harsh environments.
Features
- Intel® 13th Gen Raptor Lake-U/P , i7 / i5 / i3, Pentium CPU
Intel® 12th Gen Alder Lake-U/P, i7 / i5 / i3, Celeron CPU - 2 x DDR5 SODIMM, Max 64GB
- Multiple Independent display: 2 x HDMI (OEM to DP)
- 5 x Intel 2.5 GbE LAN, 3 x USB 3.2, 1 x USB 2.0, HD Audio
- 1 x M.2 M Key, 1 x M.2 BKey, 1 x Mini PCIe, 1 x Nano SIM
- 2 x COM, 4DI / 4DO, TPM 2.0, SMBus, I2C
- Wide Range DC-IN
| MODEL | HAWK-3I130DW | |
|---|---|---|
| System Dimension(WxDxH) | 220W x 172.6D x 80H mm 220W x 176.6D x 80H mm (Mobile Rack) |
|
| Weight(Incl.M/B) | 3.6 kg | |
| Mounting | *System Mount *VESA Mount | |
| CPU | Intel® 13th Gen Raptor Lake-U/P, i7 / i5 / i3, Pentium CPU Intel® 12th Gen Alder Lake-U/P, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel Raptor Lake-U/P ; Alder Lake-U/P SoC | |
| Memory | 2 x DDR5 SODIMM, Max 64GB | |
| Storage | M.2-SSD, 1 x Mobile Rack (option) | |
| Expansion slots | 1 x Mini PCIe (PCIe x1 / USB 2.0) 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 / 3052 (USB 3.2 Gen 1 x 1/ USB 2.0 /mSATA) 1 x Nano SIM |
|
| I/O ports | Network | 5 x Intel 2.5GbE I226-IT |
| USB | 3 x USB 3.2 Gan 1 x 1, 1 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI (OEM to DP) | |
| GPIO | 4 x DI / 4 x DO (Option) | |
| HD Audio | Line-out / Mic-in | |
| Optional Modules & Accessory |
*SATA Kit *VESA Mounting Kit *System Mounting Kit |
|
| Power | DC input : Wide Range DC IN +9~36V |
|
| Operating Temp. (100 % CPU usage) |
-40°C~70°C (under specific environmental & CPU power consumption conditions.) | |
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
