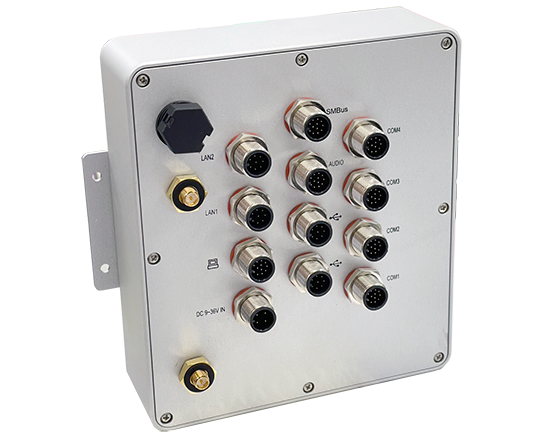

ARK-I+2I640PW + DM003 (Waterproof)
with Intel® Elkhart Lake ATOM Processor
Overview
The LEX SYSTEM ARK-I 2I640PW + DM003 (Waterproof) is a next-generation compact computer module powered by the Intel Atom® x6000E series processor, featuring onboard LPDDR4 memory and a Pico-Express connector for high-speed communication.
Designed for seamless integration, the 2I640PW connects to the DM003 carrier board via LEX Pico-Express pin-connectors and is built with a rugged M12 I/O interface — including VGA, dual Intel 2.5GbE LAN, four COM ports, USB, audio, and wide-range DC-IN — ensuring stable performance in harsh environments.
With low power consumption, fanless design, and support for flexible customization, the ARK-I 2I640PW + DM003 (waterproof ) enables rapid development of tailor-made I/O carrier boards, making it an ideal solution for industrial IoT, automation, defense, and transportation applications.
Features
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- On Board LPDDR4 4 / 8GB
- Independent display: VGA (M12)
- M12 IO: 2 x Intel 2.5GbE , 4 x COM, 4 x USB 2.0, 1 x DC-Input,
Audio, SMBUS / I2C / SPI
| MODEL | ARK-I + 2I640PW + DM003 (Waterproof) | |
|---|---|---|
| Motherboard | 2I640PW+DM003 | |
| System Dimension(WxDxH) | 133W x 150D x 57H mm | |
| Weight(Incl.M/B) | 1.4 kg | |
| Mounting | DIN Rail Mount*, VESA Mount* | |
| CPU | Intel® Elkhart Lake x6413E / J6412 CPU | |
| Chipset | Intel® Elkhart Lake SoC | |
| Memory | On Board LPDDR4 4 / 8GB | |
| Storage | M.2 SSD | |
| Expansion slots | 1 x Full-size Mini Card (PCIe / USB 2.0), 1 x M.2 B Key Type 3042 (USB 2.0 / PCIe / SATA) 1 x M.2 B Key Type3042 (PCIe x 2) |
|
| I/O ports | Network | 2 x Intel 2.5GbE (M12) |
| USB | 4 x USB 2.0 (2 x M12) | |
| Serial ports | 4 x COM (M12 x 4) | |
| AUDIO | Line-out / Mic-in (M12) | |
| Communication Protocol | SMUBS / I2C / SPI (M12) | |
| Display | 1 x VGA (M12) | |
| Optional Modules & Accessory |
*VESA Mount Kit, *DIN Rail Mounting Kit *External Power Adapter |
|
| Power | DC input : +9V~36V (M12) AC input : AC-DC External adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
