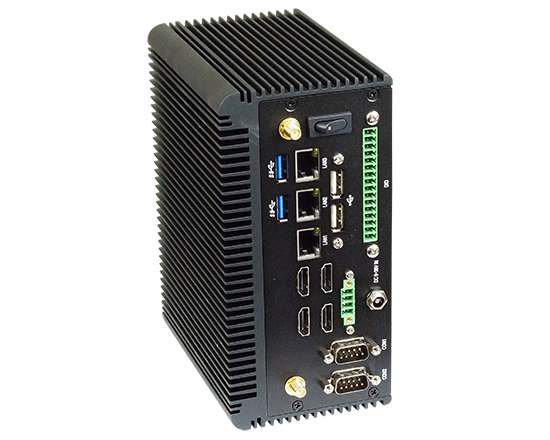

ROCK - 2I110AW
with 11th Intel® Tiger Lake-UP3 Processor
Overview
ROCK 2I110AW is a rugged fanless DIN-Rail computer with dimensions measuring just 173W x 130D x 85H mm. It features 11th Gen Intel® Tiger Lake-UP3 i7/i5/i3/Celeron processor and is designed for delivering powerful Edge AI solutions. ROCK 2I110AW is equipped with multiple I/O, such as 4 x HDMI, 3 x 2.5 Gb Ethernet ports, 2 x USB 3.2 ports, 2 x USB 2.0 ports and 2 x COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting M.2 slots, the ROCK 2I110AW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of high performance with compact & rugged mechanical design also make ROCK 2I110AW an ideal Edge AI solution for visual inspection, Video analysis, smart traffic, smart factory, intelligent medical application projects that require advanced computing at harsh environments.
Features
- 11th Gen Intel® Tiger Lake-UP3,
i7 / i5 / i3 / Celeron CPU - 1 x DDR4 SODIMM socket, Max. 32GB
- Independent display: 4 x HDMI
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.2, 2 x USB 2.0
- 2 x COM, 2 x M.2, DI/DO, SMBus
| MODEL | ROCK - 2I110AW | |
|---|---|---|
| Motherboard | 2I110AW | |
| Dimension(WxDxH) | 173W x 130D x 85H mm | |
| Weight(Incl.M/B) | 2.2 kg | |
| Mounting | VESA Mount* (VESA 75), DIN-Rail Mount*, Wall Mount* | |
| CPU | 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU | |
| Chipset | Intel Tiger Lake-UP3 SoC | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Storage | M.2-SSD*, SATA* | |
| Expansion slots | 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA) Support NVMe |
|
| I/O ports | Network | 3 x Intel 2.5 GbE I225 |
| USB | 2 x USB 3.2 ; 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 4 x HDMI® | |
| DIO | 4DI / 4DO (optional) | |
| Optional Modules & Accessory |
Converter card CN064 for Wifi 6 Module Converter card CN067 for 4G / 5G Module *SATA Kit *VESA Mounting Kit, DIN Rail Mounting Kit, *Wall Mount Kit |
|
| Power |
DC input : Wide Range +9~36V |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (Core i7 1185GRE) | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 10 IOT, Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
