Converter Board
CN048

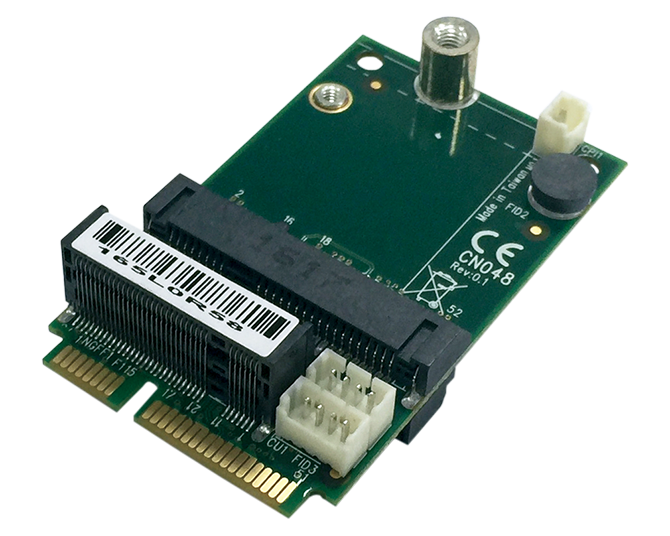

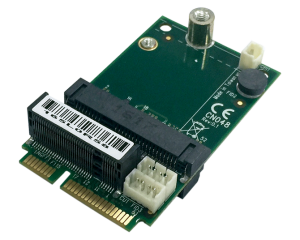

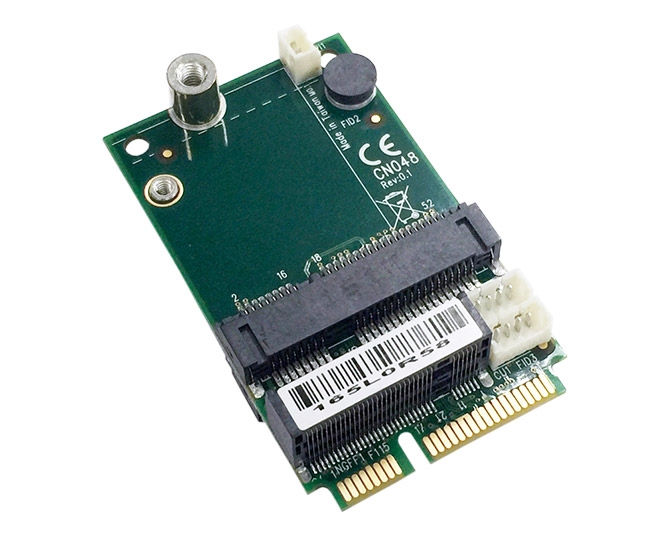

1 x Mini PCIe to 2 x Mini PCIe + 1 x M.2 Slot converter board,
CN048 converts Mini PCIe to 2 x Mini PCIe slot for achieving the purpose of expanding of Mini PCIe slots.
CN048 consists 1 x PCIe M.2 B key 2242 socket which supports SATA-based SSD.
CN048 converts Mini PCIe to 2 x Mini PCIe slot for achieving the purpose of expanding of Mini PCIe slots.
CN048 consists 1 x PCIe M.2 B key 2242 socket which supports SATA-based SSD.
Features

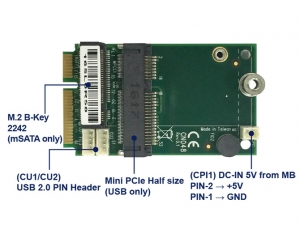

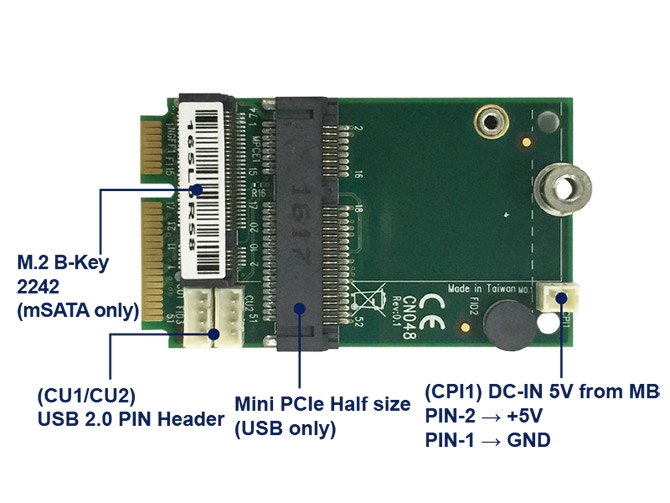

- 1 x Mini PCI-e Golden finger to 2 x Mini PCI-e Slot (Half size)
+ 1 x M.2 B key Slot
| MODEL | CN048 |
|---|---|
| Function | 2 x Half Size Mini Card (USB) 1 x M.2 B Key 2242 (mSATA) |
| Interface | Mini PCIe interface |
| USB Connector | 1.25 pitch 1 x 4pin (CU1) (CU2) |
| Operating Temperature | -40°C ~ +60°C |
| Dimensions | 50.95 x 30 mm |
