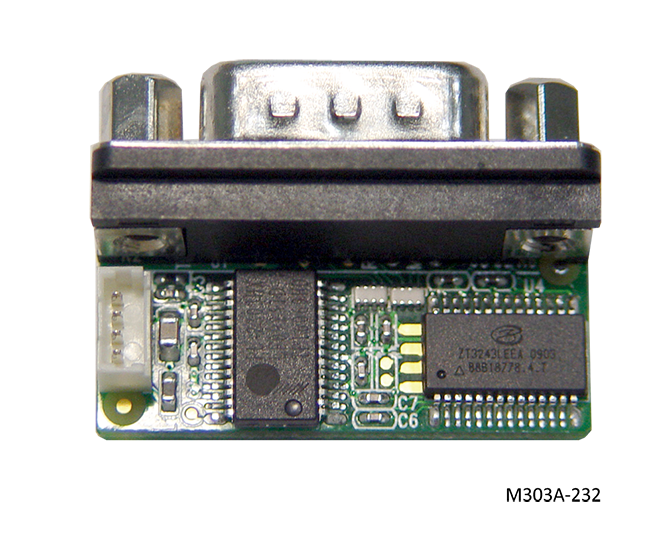

Serial Board
M303A
M303A-232: USB to RS232,
M303A-485: USB to RS485

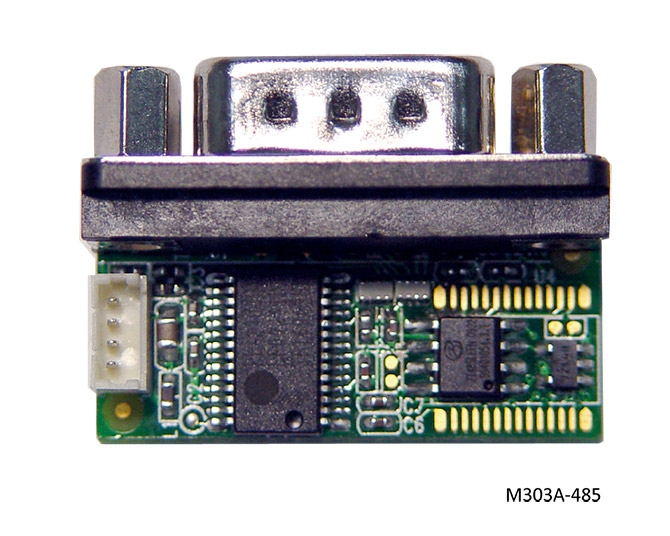

M303A-485: USB to RS485
Features
- Fully Compliant with USB Specification v2.0 (Full-Speed)
- On-chip 96MHz clock generator
- Full-duplex transmitter and receiver (TXD and RXD)
- 5, 6, 7 or 8 data bits
- Programmable baud rate from 75bps to 250kbps
| MODEL | M303A |
|---|---|
| Type | USB to RS232 / RS485 |
| Input | USB 1 x 4 pin 1.25 wafer connector |
| Output | D-Sub |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 30.8 x 15.25 mm |
