PoE modules

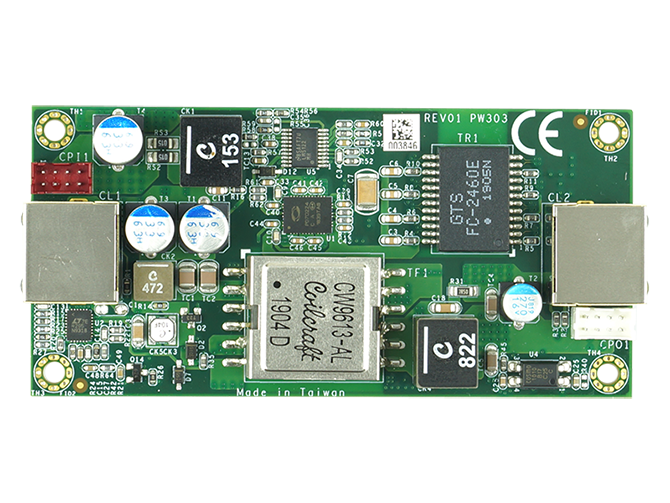

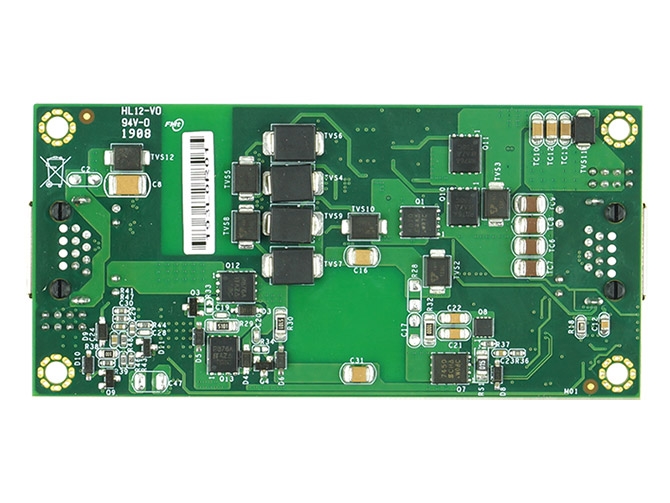

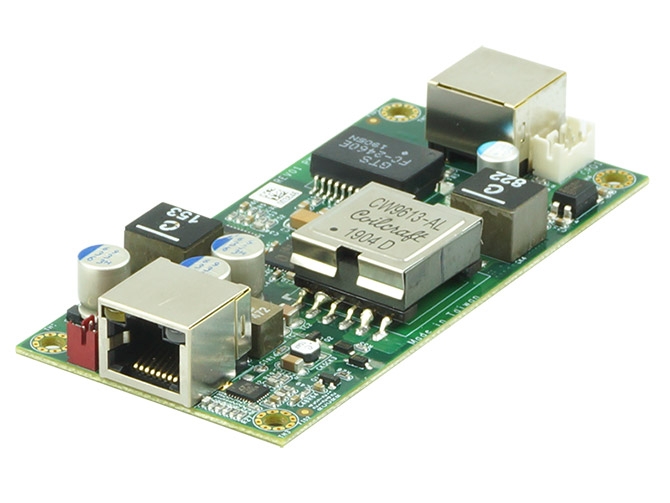

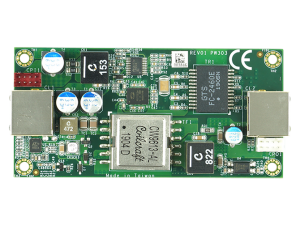

PW303
PW303 is a PD power solution board which compliant IEEE 802.3 bt class 8. It provides up to 71W at +12V output
device used. And plus with over current protection and short protection.
device used. And plus with over current protection and short protection.
Features
- DC Input: +48V to +57V
- Output voltage: +12V / 6A
- Current: Compliant IEEE802.3 bt class 8 up to 71W
| MODEL | PW303 |
|---|---|
| Type | PoE Device to DC & LAN |
| Input | RJ45 |
| Output port | 2 x 4 pin power & RJ45 or 2 x 4 pin LAN wafer |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 48 x 100 mm |
