Converter Board
Serial Board

CC007

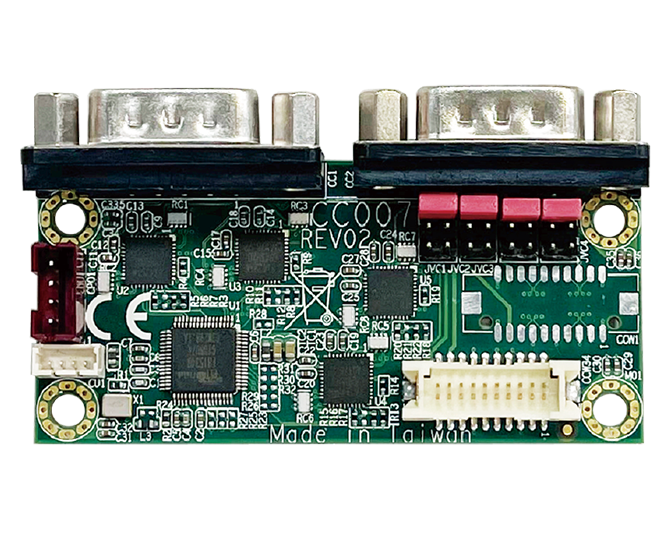

USB to 4 Port RS232 / RS485 / RS422 converter board

Features

  • 4 x RS232 / 422 / 485 switched by SW
  • Pin 9 RI / 5V / 12V selectable by jumper
MODEL CC007
Type USB 2.0 to RS232 / 422 / 485
Input 1.25mm, 1 x 4 pin
Output port D-Sub x 2,
2 x 10pin pinheader (need cable)
Operating Temperature -40°C ~ +85°C
Dimensions 65 x 30 mm
