PoE modules
Converter Board
Networking / Communication
Converter Board
Networking / Communication

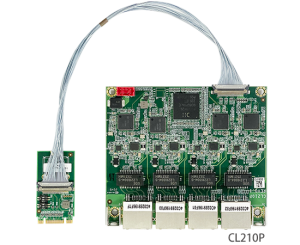

CL210P + CN073

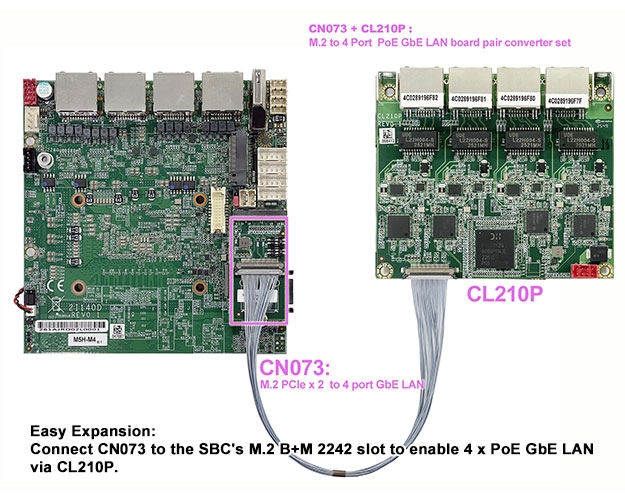

M.2 to 4 Port 802.3af (PoE) GbE LAN converter set
Features
- 4 Independent Gigabit Ethernet ports (Intel® i210-IT)
- IEEE802.3 AF for Power over Ethernet
- PCI Express switch PI7C9X2G608GPCNJE
of PCI Express Gen 2 switching - Supports Jumbo frame 9.5kB and link aggregation
- Supports 12 VDC AT/ATX input power boost up
to max 25 watts at 52 VDC per PoE - Port, total power 60W
| MODEL | CL210P + CN073 |
|---|---|

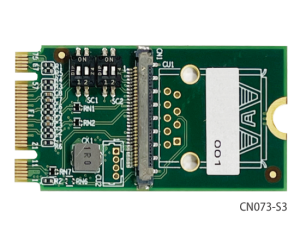

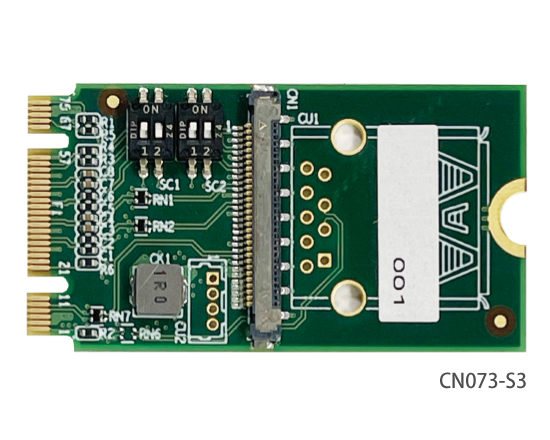

| Type | 4Port 802.3af (PoE) GbE LAN board (CL210P) M.2 2242 B+M key to PCIe signal (CN073) |
| Interface | 30 pin SSL connector |
| Operating Temperature | -40°C ~ +85°C |
| Ethernet | 4 GbE RJ45 LAN port |
| Dimensions | 93 x 80 mm (CL210P) 22 x 42 mm (CN073) |
