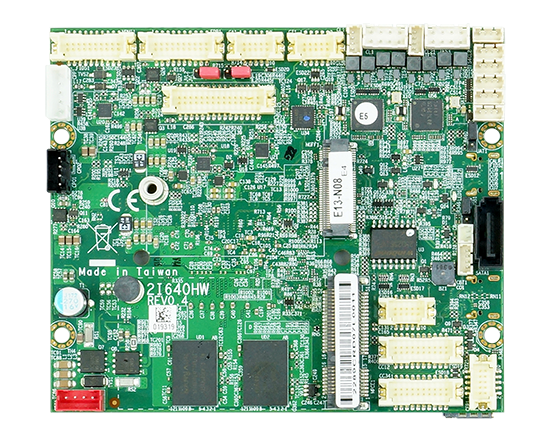

2I640HW
Intel® Elkhart Lake ATOM® x6000E Series,
HDMI, LVDS, eDP, 2 x Intel 2.5 Gb Ethernet, 6 x USB, Touch Screen, 4 x COM,
1 x Mini PCIe, 1 x PCIe x 2*, 1 x M.2, 1 x Nano SIM, HD Audio, 4DI / 4DO, SMBus
Overview
LEX SYSTEM 2I640HW is a 2.5” Plus (102 x 88 mm) embedded board and base on Intel Atom® x6000E Series and Celeron® J (formerly Elkhart Lake )Series processors. Running with Intel® UHD Graphics ,2I640HW provide high-performance and full –features with integrated 2 x GbE LAN, 6 x USB, 4 x COM Port , HDMI,LVDS and eDP display interface and 1 x M.2, 1 x Mini Card expansion slot offers the ideal platform for graphics performance with integrated IoT features, real-time performance, manageability, and security.
2I640HW's all wafer IO design delivers high flexibility toward expanded functions & and also provides user hassle-free solution of integrating the SBC board within various mechanical enclosures. The compact size feature makes 2I640HW well suited for many space-limited and thermally constrained embedded applications, such as In-Vehicle Infotainment, Intelligent Control, Factory Automation Industry 4.0,Internet of Things (IoT) and Edge Computing applications.
Features
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- On Board LPDDR4 up to 8GB
- Independent display: 1 x HDMI, 1 x LVDS, 1 x eDP
- 2 x Intel 2.5 GbE LAN, 1 x USB 3.0*, 5 x USB 2.0
- 1 x Mini PCIe, 1 x M.2, 1 x Nano SIM, 1 x PCIe x 2*
- 4 x COM, SMBus
- Touch Screen, HD Audio, 4DI / 4DO
- TPM 2.0
| MODEL | 2I640HW |
|---|---|
| CPU | Intel® Elkhart Lake ATOM® x6413E / J6412 CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | On Board LPDDR4 3200 MHz, Max. 8GB |
| Storage | 1 x M.2 B Key 2242 / 3042 SATA 1 x SATA |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x HDMI, 1 x eDP, 1 x Dual Channel, 48 bits LVDS |
| Touch | USB interface Touch Screen controller |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 2 x Intel 2.5 GbE I225 (internal) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Mini PCIe (USB 2.0 / PCIe) 1 x M.2 B Key 2242 / 3042 (SATA / USB 3.0 / 2.0) 1 x Nano SIM (M.2) 1 x PCIe x 2 (Type C*) *LEX-defined Type C pin configuration |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 1 x USB 3.0 (Type C*) *LEX-defined Type C pin configuration ; 5 x USB 2.0 (internal) |
| Serial IO |
1 x RS232 / 422 / 485 *COM1~COM4 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V |
| Dimension | 2.5" Plus (102 x 88 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) -40°C by OEM Option |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: Waterproof Box PC, Waterproof PPC |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
| Model | Function Category | Description |
|---|---|---|
| M061R | Mini PCIe Card | PCIe to SATA x 2 RAID mini card |
| M113A+CIO116 | Digital I/O board | Optocouplerrr isolated 16DI 16DO solution |
| M212A-1S+CL001 | Networking / Communication | PCIe to GbE LAN |
| M212A-2S+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| M212A-1S+PW351 | PoE Module | 1 port PSE up to 25.5W |
| M212A-2S+PW352 | PoE Module | 2 port PSE up to 30.8W |
| M213A+CN052 | Networking / Communication | 1000Base-BX fiber board |
| M504B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954C | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073+ME225 | Capture Card | HDMI video capture card |
| CN073+CL006 | Converter Board | USB 3.0 to 4 x USB 3.0 |
| M113A-S+CIO116-B | Digital I/O board | Optocoupler isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
