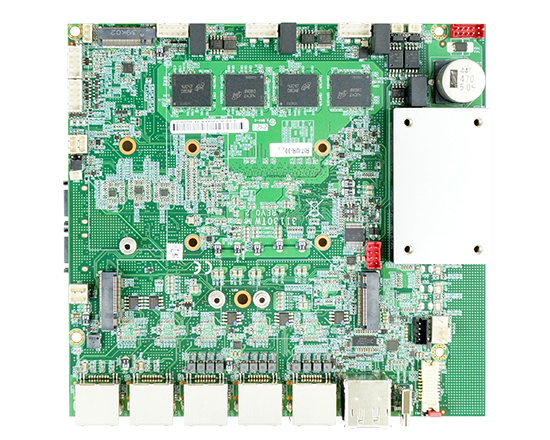

3I130TW
Intel® 13th Gen Raptor Lake-U i7 / i5 / i3, Pentium CPU,
1 x HDMI, 1 x DP, 1 x eDP, 1 x Type C, 5 x Intel 2.5Gb Ethernet,
3 x M.2, 1 x Nano SIM, 4DI / 4DO, 3 x USB 3.2, 4 x USB 2.0, 2 x COM,
2 x CABus, ISO Wide Range DC-IN, CPC-Ignition on/off control
Overview
LEX System 3I130TW is the 3.5" Plus SBC based on Intel® 13th Raptor Lake-U Core i processor, integrated 5 x 2.5 GbE, 7 x USB , 2 x ISO-COM Port , 2 x ISO-CANBus , HD Audio, DI/DO, HDMI,DP & Type C DP ALT mode display interface ;plus with 3 x M.2 and 1 x Nano SIM expansion , ISO wide range 9~+36V DC input (optional to 18-75V),1.5KVDC I/O isolation and Power ignition delay on/off control which could protect computing systems from damage causing by unexpected voltage and current and makes sure it operates normally. 3I130TW supports onboard LPDDR5 16GB/32GB memory , onboard 256 / 512GB & 1TB NVME and could expand, M12 I/O ,PoE and comprehensive storage options including 2 x SATA and one M.2-SSD make it the ideal for in-vehicle /Railway applications.
Features
- Intel® 13th Gen Raptor Lake-U i7 / i5 / i3, Pentium CPU
- Onboard LPDDR5, 16GB / 32GB
- Multiple Independent display:
1 x HDMI, 1 x DP, eDP, 1 x Type C DP ALT Mode - 5 x Intel 2.5 GbE LAN, 3 x USB 3.2 ,
4 x USB 2.0, 1 x Type C - 1 x M.2 M Key, 2 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO, TPM 2.0, SMBus, I2C
- ISO Wide Range DC-IN, CPC-Ignition on/off control
| MODEL | 3I130TW |
|---|---|
| CPU | Intel® 13th Gen Raptor Lake-U i7 / i5 / i3, Pentium CPU Intel® 12th Gen Alder Lake-U i7 / i5 / i3, Celeron CPU |
| MB Chipset | Intel® Raptor Lake-U SoC Intel® Alder Lake-U SoC |
| Graphics | Intel Iris Xe Graphics (i7, i5), Intel UHD Graphics (i3, Celeron) |
| System Memory | Onboard LPDDR5, 16GB / 32GB |
| Storage | OEM option-Onboard (256GB / 512 GB / 1TB) NVMe 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 3042 / 3080 (PCIe x4 ), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI, 1 x DP, eDP, 1 x Type C DP ALT Mode |
| TPM | TPM 2.0 |
| LAN | 5 x Intel 2.5GbE I226-IT (external) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x M.2 B key Type 3042 (PCIe x1 / USB 2.0) 1 x M.2 M key Type 3042 / 3080 (PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 / 3052 (USB 3.2 Gen 1 x 1 / USB 2.0) 1 x Nano SIM |
| Expansion Module |
Converter Card : |
| USB | 3 x USB 3. 2 Gen 1 x 1 (external) ; 1 x Type C, USB 3.0 (external) 1 x USB 2.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO | 2 x ISO RS232 / 422 / 485 (internal) ; 2 x ISO CANBus |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus ; 1²C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | ISO Wide Range DC IN +9~36V ; CPC-Ignition on/off control Wide Range DC IN +18~75V (option), 1.5KVDC I/O isolation power brick 1/4 CQB100W-24S12 9~36V IN / 12V Out 100W(SYS) (Standard SPEC) power brick 1/4 CQB100W-48S12 18~75V IN / 12V Out 100W(SYS) (OEM SPEC) |
| Dimension | 161 x 150 mm |
| Operation Temperature (100 % CPU Usage) | -40°C~+70°C (under specific environmental & CPU power consumption conditions) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | HAWK |
| OS Support | Windows 10/11 (64bit) Linux Ubuntu 22.04/Kernel 5.15 |
