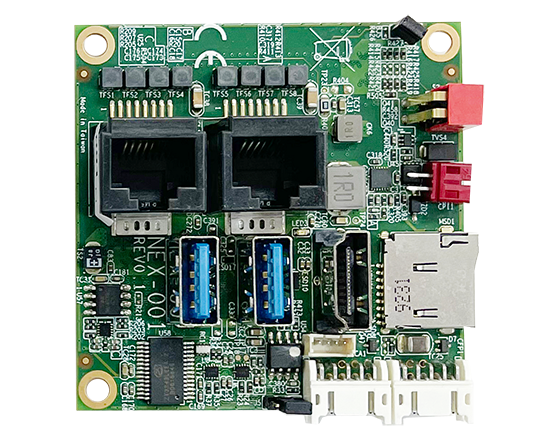

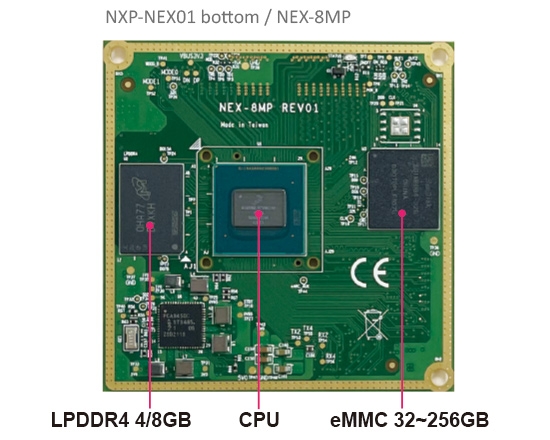

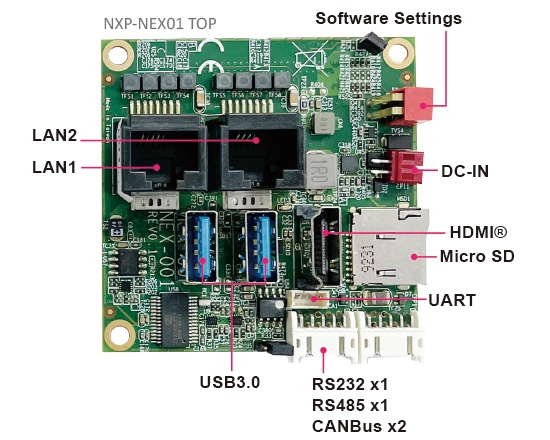

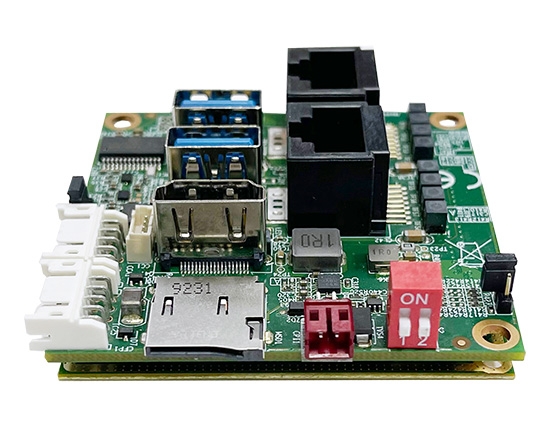

NXP-NEX01
NXP i.MX8M Plus with Compact Edge Gate way Board
Features
- NXP i.MX8M Plus (Quad core) ARM Cortex-A53
processor up to 1.8 GHz (NEX-8MP) - LPDDR4, 4/8GB (NEX-8MP)
- 32GB eMMC 5.1 (NEX-8MP), expandable to 256GB
- HDMI® ; 2 x GbE ; 2 x USB 3.0 / 2.0
- 1 x Micro SD, 1 x RS232, 1 x RS485, 2 x CANBus
| MODEL | NXP-NEX01 |
|---|---|
| CPU | NXP i.MX8M Plus (Quad core) ARM Cortex-A53 processor up to 1.8 GHz (NEX-8MP) |
| GPU | Vivante GC700UL GPU (NEX-8MP) |
| System Memory | LPDDR4 4/8GB (NEX-8MP) |
| Storage | 32GB eMMC 5.1 ; (NEX-8MP), expandable to 256GB, 1 x Micro SD |
| Display | 1 x HDMI® |
| LAN | 2 x GbE |
| USB | 2 x USB 3.0 / 2.0 |
| Serial IO | 1 x RS232 ; 1 x RS485, 2 x CANBus |
| Power Input | DC +5V |
| Dimension | NXP-NEX01: 60 x 60 mm (NEX-8MP: 58.42 x 58.42 mm) ; Weight: NEX-8MP: 12.5g ; NXP-NEX01: 31g |
| Operation Temperature | -40°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: PALM |
