IP65 Panel PC
VITA 23.8" PPC + 3I610CW

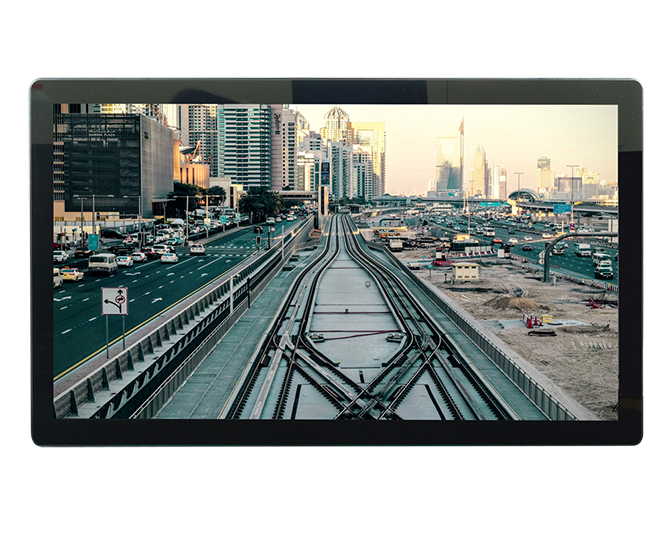

23.8" Frameless Panel PC with
6th / 7th Gen Intel® Skylake / Kaby Lake-U,
i7 / i5 / i3 / Celeron CPU
6th / 7th Gen Intel® Skylake / Kaby Lake-U,
i7 / i5 / i3 / Celeron CPU
Features
- 23.8" LCD with capacitive touch screen
- Intel® Skylake / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
- 1 x DDR4 1866 / 2133 MHz SODIMM, Max. 32GB

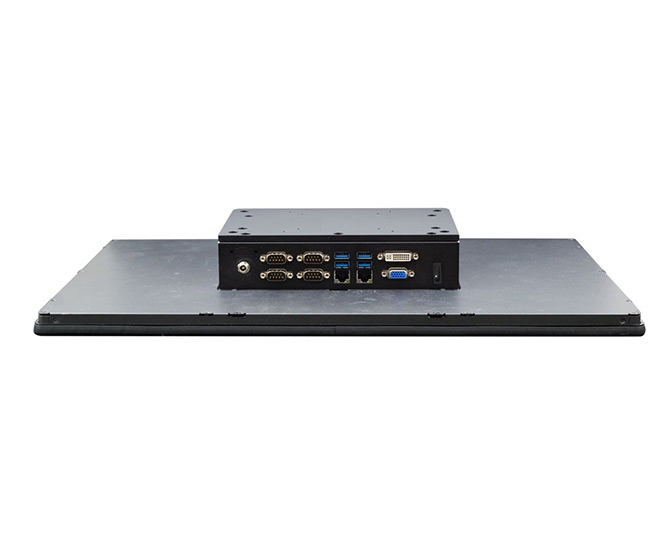

- 2 x GbE, 4 x COM, DVI, VGA, 4 x USB, 1 x SIM
- Wide Range 9~36V DC input
- Frameless Panel & Aluminum housing
VITA 23.8" PPC + 3I610CW Datasheet
VITA 23.8" PPC + 3I610CW CE
VITA 23.8" PPC + 3I610CW FCC
VITA 23.8" PPC + 3I610CW LVD
| MODEL | VITA 23.8" PPC + 3I610CW | |
|---|---|---|
| System Dimension(WxDxH) | 575.06W x 347D x 73.8H mm | |
| Weight(Incl.M/B) | 6.8 kg | |
| Motherboard | 3I610CW | |
| CPU | Intel® Skylake / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU | |
| Chipset | Intel Skylake / Kaby Lake-U SoC | |
| Memory | 1 x DDR4 SODIMM, Max. 32GB | |
| Storage | mSATA | |
| Expansion slots | 1 x Full-size Mini PCIe (USB / mSATA) 1x Full-size Mini PCIe (PCIe / USB 2.0) 1 x SIM |
|
| I/O ports | Network | 2 x Intel GbE |
| USB | 4 x USB 3.0 | |
| Serial ports | 4 x RS232 / 422 / 485 | |
| Display | 1 x VGA, 1 x DVI | |
| Optional Modules & Function |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS *VESA Mount Kit, *External power adapter |
|
| Power | DC input : +9~36V AC input : External adapter 100 / 240V AC-DC (optional) |
|
| Display Type | 23.8 inch 16:9 | |
| Max. Resolution | 1920 x 1080 | |
| Viewing Angle | 89(U), 89(D), 89(R), 89(L) | |
| Luminance (cd/m2) | 250 | |
| Contrast Ratio | 3000:1 | |
| Touch Type | Projected Capacitive Touch Screen | |
| Operating Temp. (100 % CPU usage) |
-20°C to +50°C with mSATA | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| IP Rating | Front panel IP65 Compliant | |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), |
|
