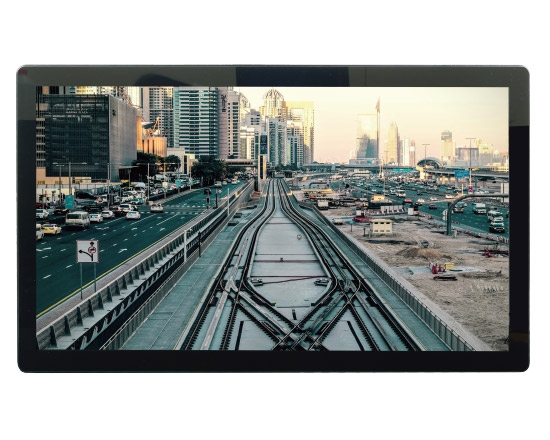

IP65 Panel PC

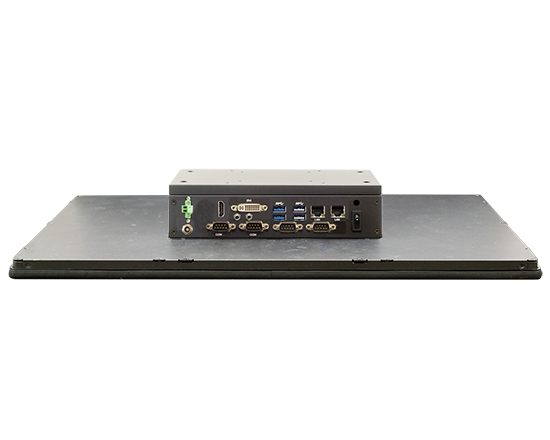

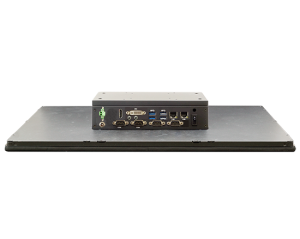

VITA 23.8" PPC + 3I640CW
23.8 " Frameless Panel PC with
Intel® Elkhart Lake ATOM® 6000 series Processor
Intel® Elkhart Lake ATOM® 6000 series Processor
Features
- 23.8" LCD with capacitive touch screen
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- 1 x DDR4 SODIMM, Max. 32GB
- 2 x 2.5GbE, 4 x COM, DVI, HDMI, 4 x USB
- Wide Range 9~36V DC input
- Frameless Panel & Aluminum housing
| MODEL | VITA 21.5" PPC + 3I640CW | |
|---|---|---|
| Dimension (mm) | 575.06W x 347D x 83.8H mm | |
| Weight | 6.8 kg | |
| Mounting | Support Panel Mount / Wall mount VESA mount & Stand (optional) |
|
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel® Elkhart Lake SoC | |
| Memory | 1 x DDR4 SODIMM, Max. 32GB | |
| Storage | SSD, M.2 | |
| Expansion slots | 1 x M.2 B Key Type 2242 / 3042 (SATA / USB 2.0 / USB 3.0) 1 x M.2 B Key Type 2242 (PCIe x2 / USB 2.0), support NVMe 1 x Mini PCIe (USB 2.0 / PCIe) 1 x Mini SIM |
|
| I/O ports | Network | 2 x Intel 2.5 GbE |
| USB | 2 x USB 3.0 2 x USB 2.0 |
|
| Serial ports | 2 x RS232 / 422 / 485 2 x RS232 |
|
| Display | 1 x DVI, 1 x HDMI | |
| HD Audio | Line-out / Mic-in | |
| Optional Modules & Function |
4G / 5G, Wifi 6, Bluetooth, Digital I/O *HDD Kit, *VESA Mount Kit *External power adapter |
|
| Power | DC input : +9~36V AC input : External adapter 100 / 240V AC-DC (optional) |
|
| Display Type | 23.8 inch 16:9 | |
| Max. Resolution | 1920 x 1080 | |
| Viewing Angle | 89(U) 89(D) 89(R) 89(L) | |
| Luminance (cd/m2) | 250 | |
| Contrast Ratio | 3000 : 1 | |
| Touch Type | Capacitive Touch Screen | |
| Operating Temp. (100 % CPU usage) |
-20°C to +50°C with SSD | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| IP Rating | Front panel IP65 Compliant | |
| Certification | CE / FCC | |
| OS Support | Windows® 11 IOT , Windows® 10 IOT Ubuntu 22.04 above, Fedora 36 above |
|
