Embedded Box PC

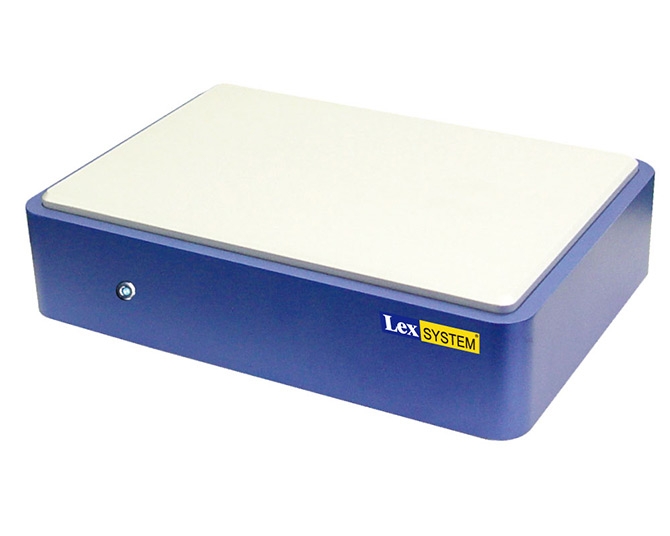

BRIK 3I380A / 3I380CW

Fanless Embedded Computer
with Intel® Bay Trail Processor

Features

  • Intel® Bay Trail CPU: Atom™ E3845 / E3825, Celeron® J1900
  • On Board DDR3L 2GB / 4GB (SODIMM, Max. 8GB-OEM)
  • Independent display: VGA, HDMI
  • 2 x GbE, 2 x COM, 4 x USB
  • 2 x Mini PCIe, 1 x SIM

＊BRIK system will be OEM system with MOQ.

Please contact sales representative prior to order placement

BRIK 3I380A / 3I380CW Datasheet
MODEL BRIK 3I380A / 3I380CW
System Dimension(WxDxH) 187W x 130D x 52H mm
Weight(Incl.M/B) 1.3 kg
CPU Intel®Bay Trail E3845 1.91 Ghz (Quad Core)
(Optional J1900 ; E3825)
Chipset Intel® Bay Trail SoC
Memory On Board DDR3L 2GB / 4GB ;
1 x DDR3L SODIMM socket, Max. 8GB (OEM)
Storage mSATA, HDD / SSD*
Expansion slots 1 x Full-size Mini PCIe ( PCIe / mSATA / USB)
1 x Full-size Mini PCIe (PCIe / USB)
1 x SIM

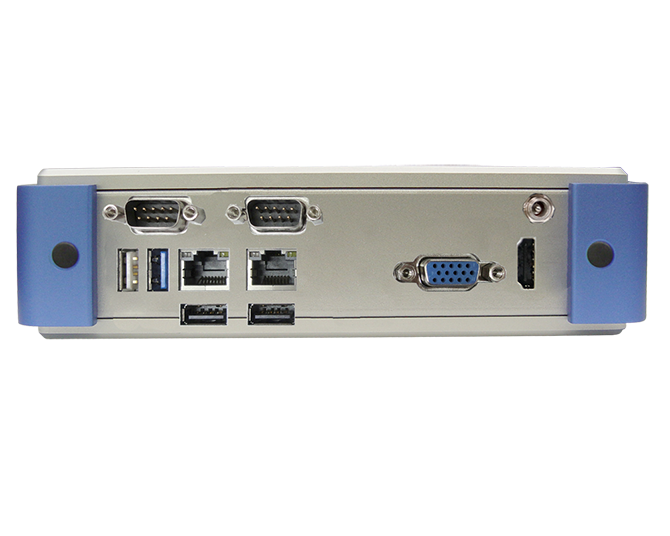

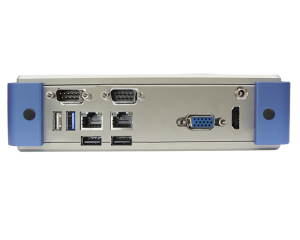

I/O portsNetwork 2 x Intel GbE
USB 1 x USB 3.0, 3 x USB 2.0
Serial ports 2 x COM
Display VGA & HDMI
Optional Modules
& Accessory		 GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM,
battery UPS, DI/DO, Video Input
*SATA Kit , VESA Mounting Kit
Power DC input : +12V
+9~36V (Option-3I380CW)
AC input : External adapter 100 / 240V
AC-DC 30W
Operating Temp.
(100 % CPU usage)		 -20°C to +60°C with mSATA / SSD
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
OS Support Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
