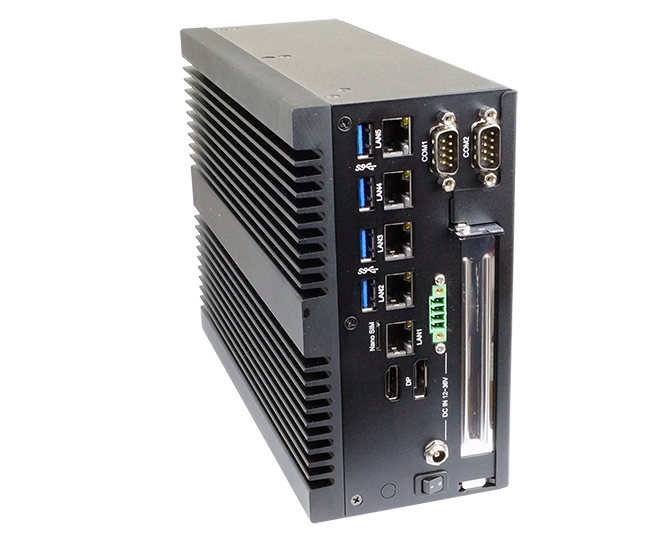

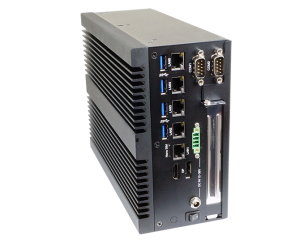

Box PC with PCIe/ PCI Expansion
APOLLO-RS 3I370DW
High Performance 8th / 9th Gen
Intel® Coffee Lake-S i9 / i7 / i5 / i3 Pentium /
Celeron (35W) CPU Fanless Embedded Computers
Intel® Coffee Lake-S i9 / i7 / i5 / i3 Pentium /
Celeron (35W) CPU Fanless Embedded Computers
Features
- 8th / 9th Gen Intel® Coffee Lake-S i9 / i7 / i5 / i3 Pentium
/ Celeron (35W) CPU - Intel® Q370 Chipset
- 2 x DDR4 2400 MHz SODIMM, Max. 64GB
- Multiple Independent display: HDMI, DP
- 5 x Intel GbE LAN, 4 x USB 3.1, 2 x COM
- 1 x M.2 B Key, 1 x Mini PCIe, 1 x PCIe, 1 x Nano SIM
| MODEL | APOLLO-RS 3I370DW | |
|---|---|---|
| System Dimension(WxDxH) | 230 x 89 x 173 mm | |
| Weight(Incl.M/B) | 3.7 kg | |
| Mounting | Wall Mount* | |
| CPU | 8th / 9th Gen Intel® Coffee Lake-S i7 / i5 / i3 CPU | |
| Chipset | Intel® Q370 | |
| Memory | 2 x DDR4 SODIMM socket, Max. 64GB | |
| Storage | mSATA, HDD / SSD*, M.2 | |
| Expansion slots |
1 x Full size Mini PCIe (PCIe / mSATA / USB 3.0 / USB 2.0) |
|
| I/O ports | Network | 5 x Intel GbE (1 x I219LM + 4 x I225) |
| USB | 4 x USB 3.1 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x DP, 1 x HDMI | |
| PCIe | 1 x PCIe 16x / 8x / 4x / 1x golden finger | |
| SIM | 1 x Nano SIM | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, *SATA Kit, Wall Mount Kit |
|
| Power | DC input : +12~36V AC input : External adapter 100 / 240V AC-DC 120W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +50°C (Core i7 8700T) *W / Industrial SSD |
|
| Storage Temp. | -20°C to +70°C | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
