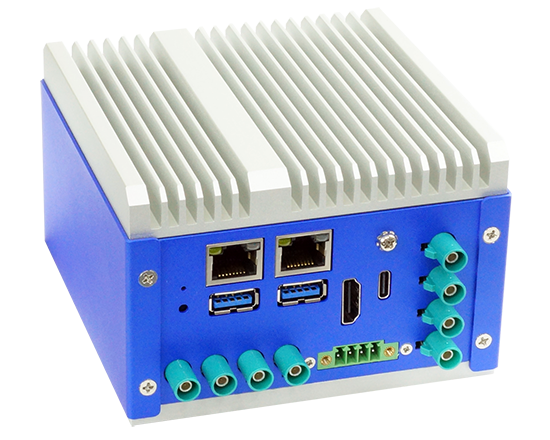

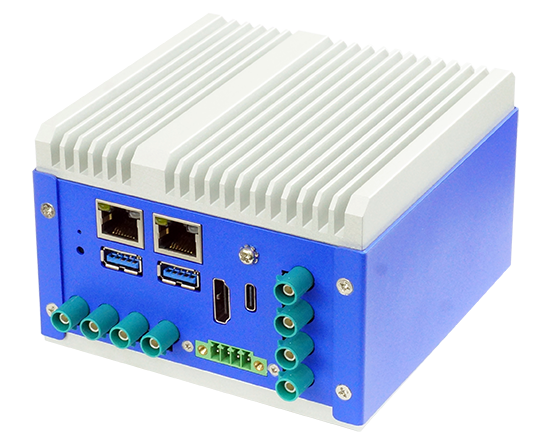

FOX - 2NOR03 + GM04
NVIDIA® Jetson Orin™ SoM + 2NOR03 + GM04
Overview
Unlock powerful AI performance at the edge with the FOX 2NOR03+GM04 — a compact yet robust system purpose-built for space-constrained environments. Measuring only 112.5 W x 112.5 D x 74 H mm, the FOX 2NOR03+GM04 is powered by NVIDIA® Jetson Orin NX / Nano (Super) modules, delivering an impressive 40 to 100 TOPS of AI computing power. Designed for compute-intensive AI vision and video analytics applications, it offers versatile connectivity, including 2 x 4-port GMSL camera interfaces, 1 x GbE, 1 x 2.5GbE, HDMI®, 2 x USB 3.1, 1 x USB Type-C (USB 3.1/2.0 OTG), and 2 x M.2 slots for flexible expansion. With wide-range DC-IN power input and rugged design, the FOX 2NOR03+GM04 delivers the ideal balance of performance, efficiency, and reliability, making it the perfect solution for high-performance edge AI deployments where space and power efficiency are critical.
Features
CPU Board:
- NVIDIA® Jetson Orin™ Nano (Super): 4 / 8GB LPDDR5, 20 / 40 TOPs
- NVIDIA® Jetson Orin™ NX: 8 / 16GB LPDDR5, 70 / 100 TOPs
- 1 x HDMI®, 2 x GbE, 2 x USB 3.1, 1 x Type C USB 3.1 / 2.0 (OTG)
- 1 x M.2 M key, 1 x M.2 B key, 2 x 4 Port GMSL Camera interface
| MODEL | FOX - 2NOR03 + GM04 | |
|---|---|---|
| Motherboard | NVIDIA® Jetson Orin™ SOM + 2NOR03 + GM04 | |
| Dimension(WxDxH) | 112.5W x 112.5D x 74H mm | |
| Weight(Incl.M/B) | 1.236 kg | |
| Mounting | System Mount* VESA Mount* | |
| CPU | 8-core Arm® Cortex®-A78AE 2.0 GHz 6-core Arm® Cortex®-A78AE 1.5 Ghz |
|
| AI Accelerator | NVIDIA® Jetson Orin™ NX: 70 / 100 TOPs NVIDIA® Jetson Orin™ Nano (Super): 20 / 40 TOPs |
|
| Memory | Jetson Orin™ NX: LPDDR5, 8 / 16GB Jetson Orin™ Nano (Super): LPDDR5, 4 / 8GB |
|
| Storage | M.2 SSD | |
| M.2 | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe 1 x M.2 B key Type 3042 (PCIe x 2) |
|
| I/O ports | Network | 1 x GbE, 1 x 2.5GbE |
| USB | 2 x USB 3.1 (external) ; 1 x USB 3.0 / 2.0 (Type C, OTG) |
|
| Display | 1 x HDMI® | |
| Video Input | 2 x 4 Port GMSL Camera interface | |
| Optional Modules & Accessory |
M.2 Module: 4G, 5G, PCIe System Mounting Kit, VESA Mounting Kit | |
| Power | DC input : DC-IN +9~24V | |
| Operating Temp. | -25°C to +60°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
