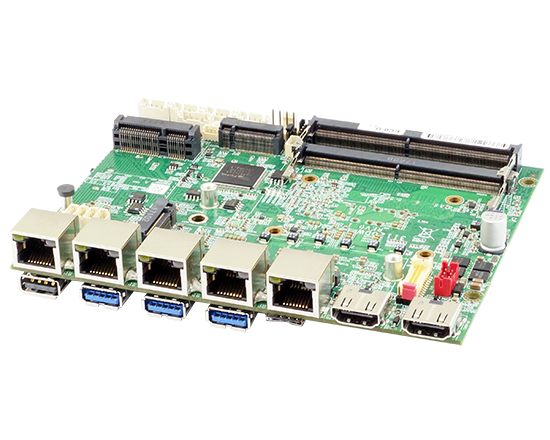

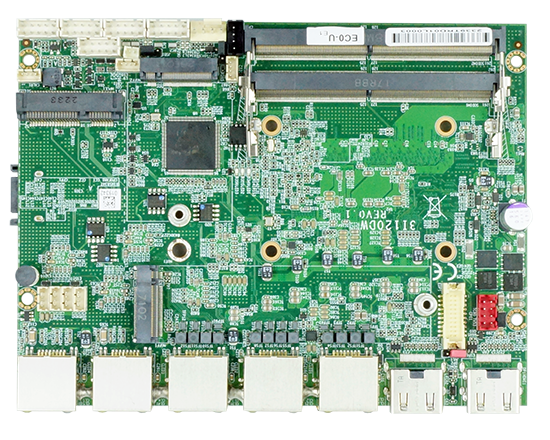

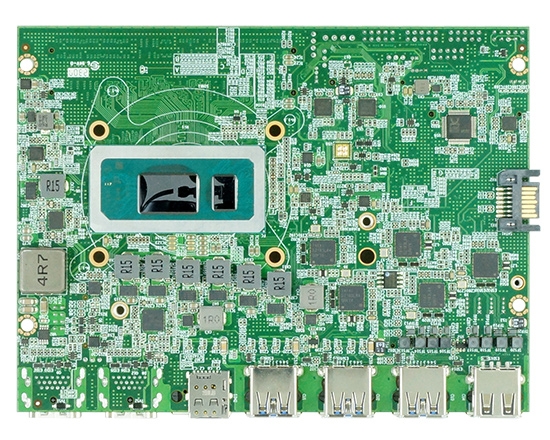

Single Board Computer
3I130DW
3.5" Plus Embedded SBC supports
Intel® 13th Gen Raptor Lake-P/ Raptor Lake-U i7 / i5 / i3 CPU,
Intel®12th Gen Alder Lake-P / Alder Lake-U i7 / i5 / i3 CPU,

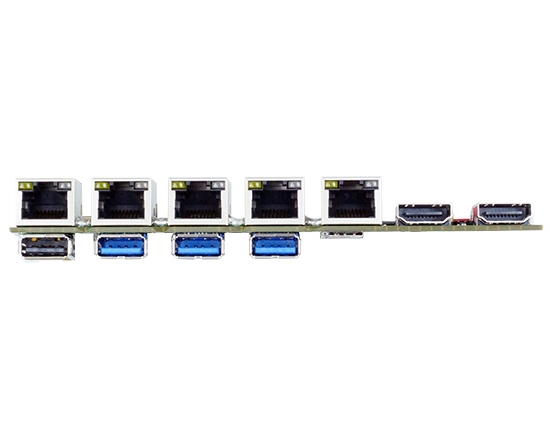

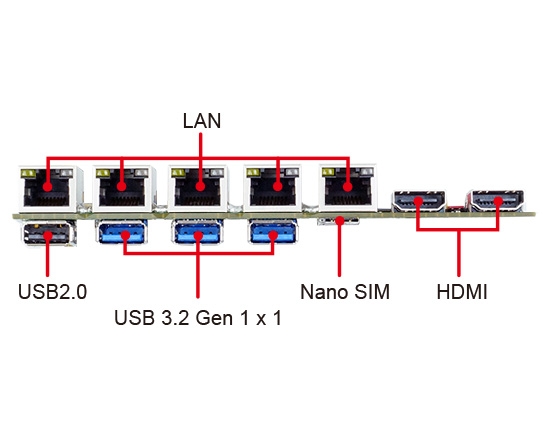

2 x HDMI, 1 x eDP, 5 x Intel 2.5Gb Ethernet, 2 x M.2, 1 x Mini PCIe
4DI / 4DO, 3 x USB 3.2, 5 x USB 2.0, 2 x COM,1 x Nano SIM
Intel® 13th Gen Raptor Lake-P/ Raptor Lake-U i7 / i5 / i3 CPU,
Intel®12th Gen Alder Lake-P / Alder Lake-U i7 / i5 / i3 CPU,
2 x HDMI, 1 x eDP, 5 x Intel 2.5Gb Ethernet, 2 x M.2, 1 x Mini PCIe
4DI / 4DO, 3 x USB 3.2, 5 x USB 2.0, 2 x COM,1 x Nano SIM
Overview
LEX SYSTEM 3I130DW is the 3.5" SBC with Intel® 13th Gen Raptor Lake-P/U & 12th Gen Alder Lake-P/U i7/i5/i3/Celeron processor designed for high performance Edge Computing and AI computing. The 3I130DW combines Intel's new graphics architecture and up to 64GB DDR5 memory to ensure improved graphics performance. LEX SYSTEM 3I130DW also provides high-speed 5 x 2.5 GbE LAN ports, wide range 9~36VDC input , 2 x HDMI, eDP & 3 x USB 3.2, 5 x USB 2.0 , 2 x serial ports , 1 x Mini PCIe slot, 2x M.2 and 1 x Nano SIM with high flexible expansions which provides users the ideal platform for Machine Vision, Motion control , Smart Manufacturing applications.
Features
- Intel® 13th Gen Raptor Lake-P/ Raptor Lake-U
Intel® 12th Gen Alder Lake-P / Alder Lake-U
i7 / i5 / i3 CPU - 2 x DDR5 SODIMM (Max. 64GB)
- Multiple Independent display: 2 x HDMI, eDP

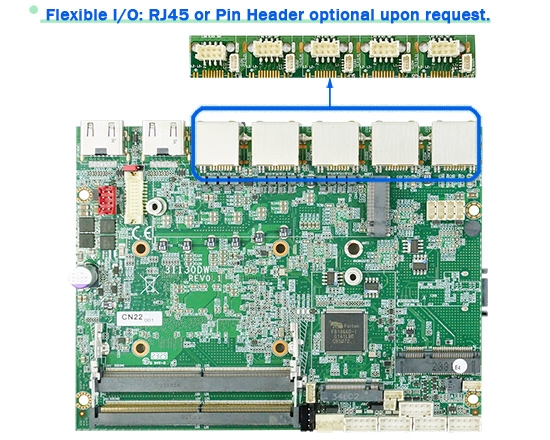

- 5 x Intel 2.5 GbE LAN, 3 x USB 3.2, 5 x USB 2.0
- 1 x Mini PCIe, 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO
- TPM 2.0, SMBus, I2C
| MODEL | 3I130DW |
|---|---|
| CPU | Intel® 13th Gen Raptor Lake-P/ Raptor Lake-U i7 / i5 / i3, Pentium CPU Intel® 12th Gen Alder Lake-P / Alder Lake-U i7 / i5 / i3, Celeron CPU |
| MB Chipset | Intel® Alder Lake-P / Alder Lake-U SoC Intel® Gen Raptor Lake-P/ Raptor Lake-U SoC |
| Graphics | Intel Iris Xe Graphics (i7, i5), Intel UHD Graphics (i3, Celeron) |
| System Memory | 2 x DDR5 4800 MHz SODIMM, Max 64GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2280 (PCIe x4), Support NVMe 1 x M.2 B key Type 3042 (SATA) |
| BIOS | AMI UEFI BIOS |
| Display | 2 x HDMI (OEM to DP), 1 x eDP |
| TPM | TPM 2.0 |
| LAN | 5 x Intel 2.5GbE I226-IT (external) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |

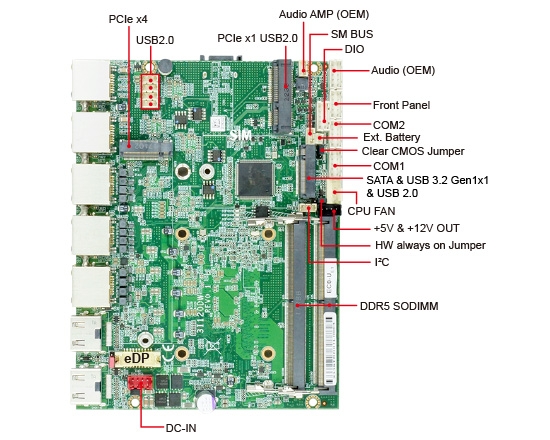

| Expansion Interface | 1 x Full Size Mini PCIe (PCIe / USB 2.0), 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe, 1 x M.2 B key Type 3042 / 3052 (mSATA / USB 3.2 Gen 1 x 1 / USB 2.0) 1 x Nano SIM |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 3 x USB 3.2 Gen 1 x 1 (external) 1 x USB 2.0 (external) ; 4 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (option) |
| SMBus / 1²C | 1 x SMBus ; 1²C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +9~36V |
| Dimension | 3.5" Plus (146 x 110 mm) |
| Operation Temperature | -40°C~70°C (under specific environmental & CPU power consumption conditions.) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 3 |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
