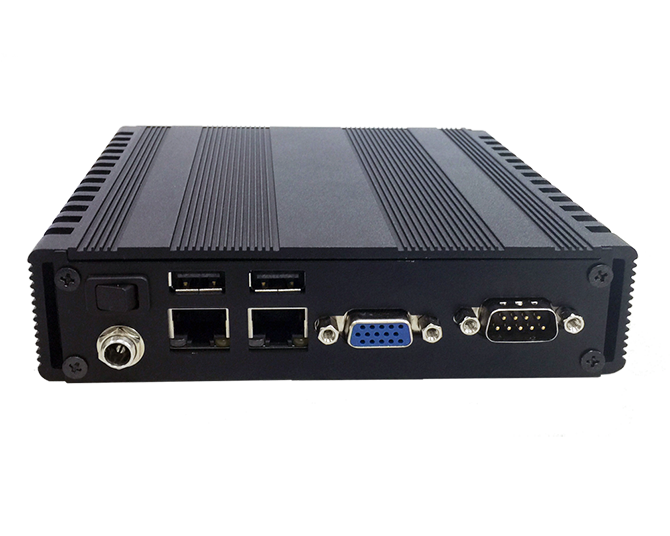

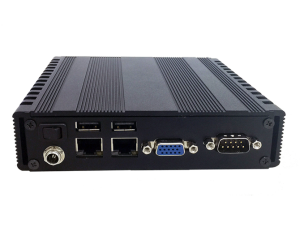

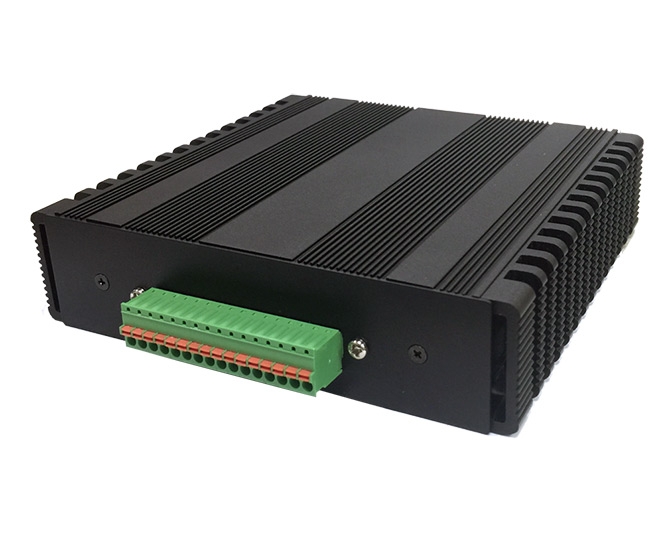

Embedded Box PC
TWIN(L) 2I385PW + DK007
Fanless Embedded Computer with Intel® Bay Trail Processor
Features
- Intel® Bay Trail CPU: Atom™ E3845 / E3825, Celeron® J1900
- On Board DDR3L 2GB / 4GB
- Independent display: VGA
- 2 x PoE, 2 x USB, 1 x COM, 2 x Mini PCIe
- 2 x SIM, DI/O (Option)
| MODEL | TWIN(L) 2I385PW + DK007 | |
|---|---|---|
| System Dimension(WxDxH) | 145W x 136.5D x 35H mm | |
| Weight(Incl.M/B) | 900 g | |
| CPU | Intel® Bay Trail E3845 1.91 Ghz (Quad Core) (Optional J1900 ; E3825) |
|
| Chipset | Intel® Bay Trail SoC | |
| Memory | On Board DDR3 L 4GB (optional 2GB) | |
| Storage | mSATA | |
| Expansion slots | 1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Half-size Mini PCIe ( mSATA / USB) 2 x SIM |
|
| I/O ports | Network | 2 x PoE |
| USB | 2 x USB 2.0 | |
| COM | 1 x RS232 Optional to RS422 / 485 | |
| Display | VGA | |
| DI/O | 4DI / 4DO (Optional) | |
| Optional Modules & Accessor |
Optional module: GPS, 3G / 4G, Wi-Fi, USB, CANBus, 2 / 4 LAN, SDI / AHD Video, Bluetooth, DI/O, PoE |
|
| Power | DC input : Wide Range +9~36V | |
| Operating Temp. (100 % CPU usage) |
-20°C to +70°C with mSATA | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
|
