2I640HL + Hailo-8™ edge AI processor

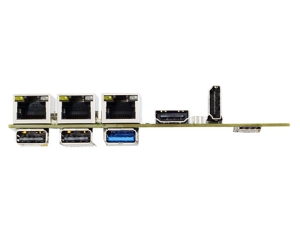

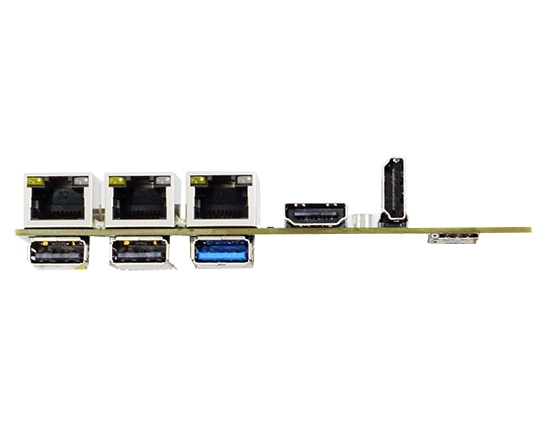

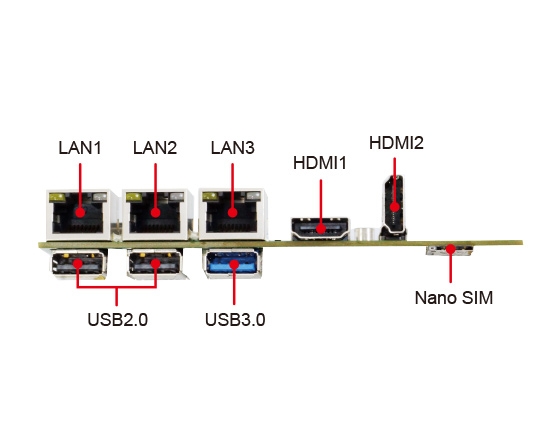

2 x HDMI, 3 x Intel 2.5 Gb Ethernet, 4DI / 4DO, 5 x USB, 2 x COM,
2 x M.2, 1 x Nano SIM, SMBus,
Hailo-8™ edge AI processor
Overview
 |

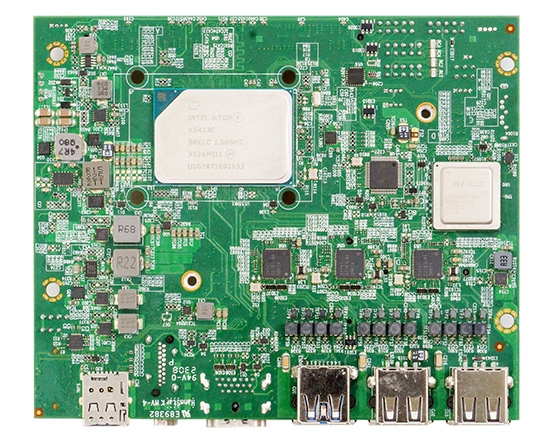

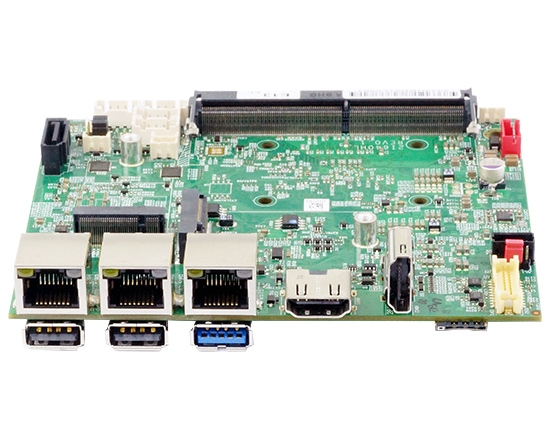

LEX System 2.5” Plus (122 x 100 mm) SBC: 2I640HL is with Intel Atom® x6000E Series and Celeron® (formerly Elkhart Lake ) Series processors & onboard Hailo-8™ edge AI processor . 2I640HL integrated 3 x 2.5 GbE LAN, 6 x USB, 2 x COM Port , 2 x HDMI (or DP) display interface and 2 x M.2 expansion slot offers the ideal platform for graphics performance with integrated IoT features, real-time performance, manageability, and security.
In addition, via wide range 9-24V DC input and onboard Hailo-8™ edge AI processor, 2I640HL can easily be adopted to space limited AI applications. 2I640HL with onboard Hailo-8™ edge AI processor provides maximum power of Edge AI and helping customers speed up time to market and run complicated deep learning and machine vision applications with lower power consumption.
Features
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU

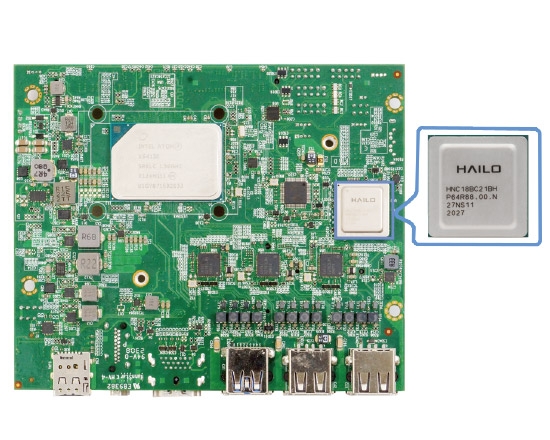

- Hailo-8™ edge AI processor
- 1 x DDR4 SODIMM socket, Max. 32GB
- Independent display: 2 x HDMI (1 x OEM to DP), 1 x eDP
- 3 x Intel 2.5 GbE LAN, 1 x USB 3.0, 5 x USB 2.0
- 2 x COM, 4DI / 4DO, 2 x M.2, 1 x Nano SIM
- TPM 2.0 (Firmware), SMBus
| MODEL | 2I640HL |
|---|---|
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| AI Accelerator | Hailo-8™ edge AI processor |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max. 32GB |

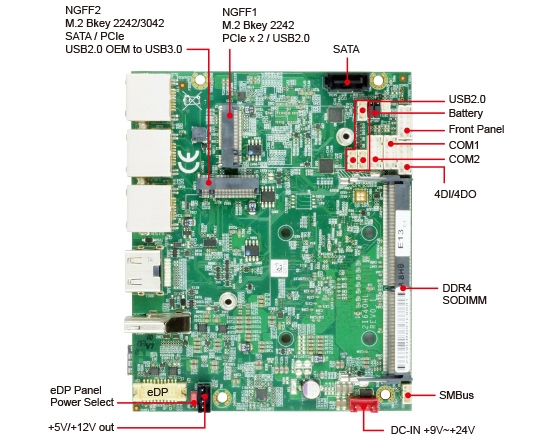

| Storage | 1 x M.2 B Key Type 3042 / 2242 PCIe-SSD / SATA-SSD 1 x M.2 B Key Type 2242 PCIe-SSD 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI (1 x OEM to DP), eDP |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM 2.0 |
| LAN | 3 x Intel 2.5 GbE I226-IT (external) |
| Expansion Interface | 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0) 1 x M.2 B Key Type2242 / 3042 (SATA / PCIe / USB 2.0-OEM to USB 3.0), 1 x Nano SIM |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 1 x USB 3.0 (external) ; 2 x USB 2.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~24V |
| Dimension | 2.5" Plus (122 x 100 mm) |
| Operation Temperature (100 % CPU Usage) |
-40°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
Box PC: SKY 2, NET-III |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
