ARM-based SBC
2N8MP01
ARM CortexA53 + M7 CPU,

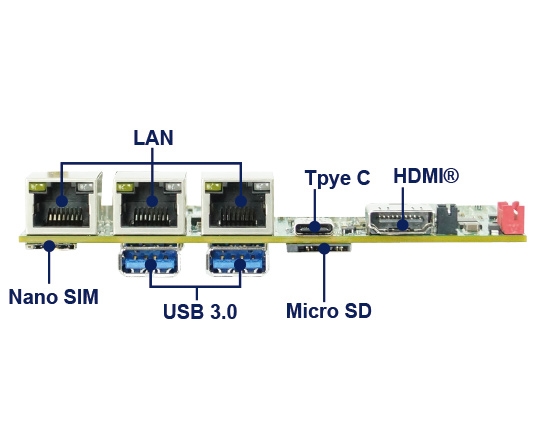

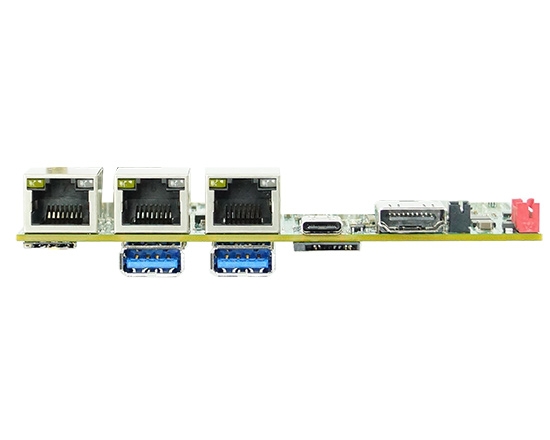

1 x HDMI, 1 x LVDS, 3 x Gb Ethernet,
2 x USB 3.0, 3 x USB 2.0, 2 x COM, MIPI-CSI, CANBus, 1 x TypeC,
1 x Micro SD, 3 x M.2, 1 x Nano SIM, 6DI / 6DO
Overview

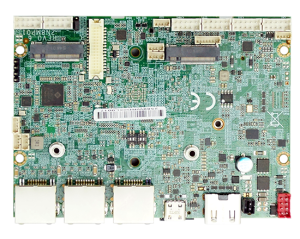

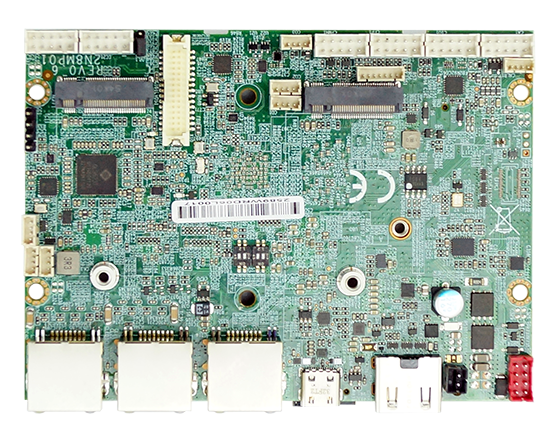

2N8MP01 is a 2.5-inch Plus (115.4 x 84.5 mm) embedded board based on NXP i.MX8M Plus (Quad-core) ARM Cortex A53 processors. 2N8MP01 integrates the visual and auditory capabilities required for AI and supports HDMI/LVDS, MIPI-CSI for multi-display. 2N8MP01 is equipped with industrial I/O interfaces, including 3 x GbE LAN, 2 x USB 3.0, 3 x USB 2.0, 2 x COM, 1 x CANBus, 3 x M.2, 1 x Nano SIM, 6DI/ 6DO, making it an ideal solution for machine vision, security, IoT gateway, and healthcare applications.
Features
- NXP i.MX8M Plus (Quad core) ARM Cortex A53 + M7 CPU
- LPDDR4, 4GB / 8GB
- Independent display: 1 x HDMI®, LVDS
- 3 x GbE LAN, 2 x USB 3.0 / 2.0 (Type A),
Type C USB 3.0/2.0 (OTG), 3 x USB 2.0 (internal) - 2 x COM, 3 x M.2, 1 x Nano SIM
- 6DI / 6DO
- 1 x MIPI (CSI)
- 1 x CANBus
- 1 x Micro SD

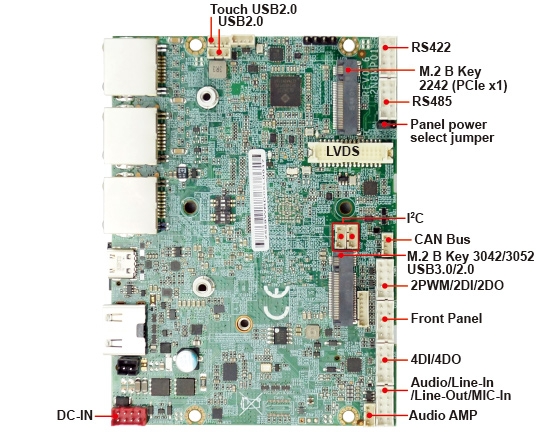

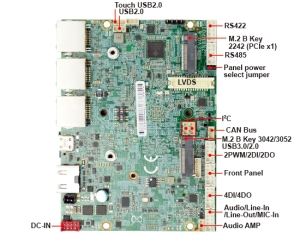

| MODEL | 2N8MP01 |
|---|---|
| CPU |
NXP i.MX8M Plus (Quad core) ARM Cortex A53 + M7 processor |
| GPU | Vivante GC700UL GPU |
| System Memory | LPDDR4, 4GB / 8GB |
| Storage | 64GB eMMC 5.1 ; 1 x Micro SD, M.2 SSD |
| Display | 1 x HDMI®, 1 x LVDS |
| LAN | 2 x GbE (RTL8211) + 1 x LAN 7800 |
| Audio (Option) | HD Audio Line-in / Line-out / AMP |
| Expansion Interface | 1 x M.2 B Key 3042 / 3052 (USB 3.0 / 2.0) 1 x M.2 E Key 2230 (SDIO) 1 x M.2 B Key 2242 (PCIe x1) 1 x Nano SIM |
| USB | 2 x USB 3.0 / 2.0 (Type A), Type C USB 3.0/2.0 (OTG) 3 x USB 2.0 (internal) |
| Serial IO | 1 x RS422, 1 x RS485, 2 x I²C |
| CANBus | 1 x CANBus |
| GPIO | Hardware digital Input & Output, 6 x DI / 6 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Camera Interface | 1 x MIPI (CSI) |
| Power Input | Wide Range DC IN +9~24V |
| Dimension | 2.5" (115.4 x 84.5 mm) ; Weight: 92g |
| Operation Temperature (100 % CPU Usage) |
-40°C~70°C (100% CPU Usage, not-underclocking) |
| Operation Humidity | 5~95%, non-condensing |

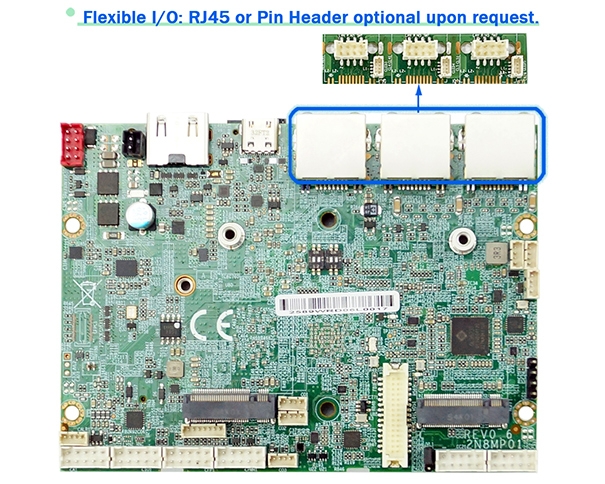

| Chassis (OEM I/O Expansion by request) |
NET-II |
| OS Support | Linux |
|
