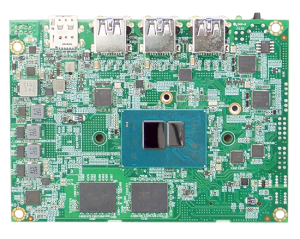

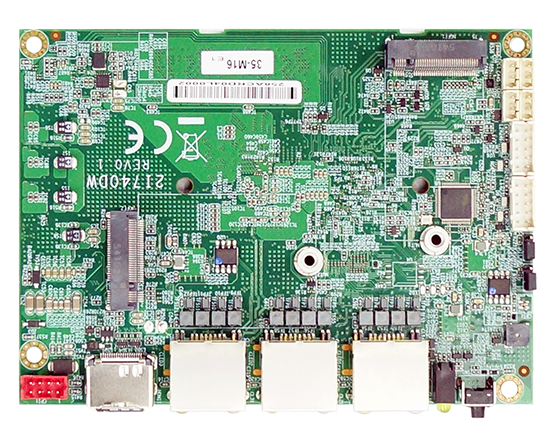

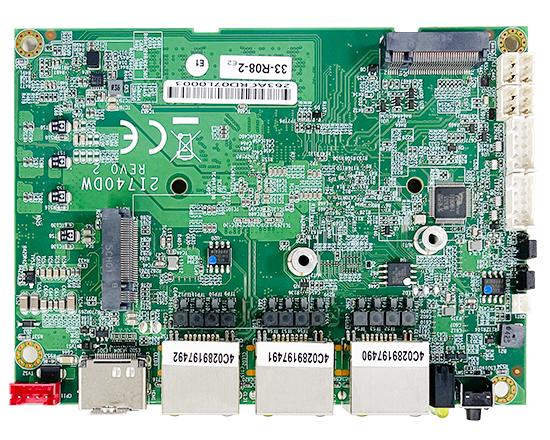

Single Board Computer
2I740DW
2.5" SBC supports Intel® Amston Lake ATOM® x7000 series CPU

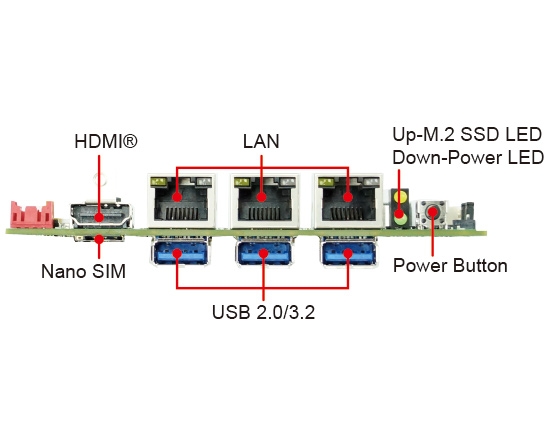

1 x HDMI®, 3 x Intel 2.5Gb Ethernet, 5 x USB, 2 x COM, 2 x M.2,
1 x Nano SIM
1 x HDMI®, 3 x Intel 2.5Gb Ethernet, 5 x USB, 2 x COM, 2 x M.2,
1 x Nano SIM
Overview
LEX System 2.5”Plus SBC (115.4 x 84.5 mm): 2I740DW is with Intel Atom® x7000 (formerly Amston Lake ) Series processors. 2I740DW integrated 3 x 2.5GbE LAN, 5 x USB, 2 x COM Port , HDMI® and 2 x M.2 expansion slot offers the ideal platform for graphics performance with integrated IoT features, real-time performance, manageability, and security. 2I740DW with excellent processor performance, multiple 2.5 Giga Ethernet ports and wide range 9-24V DC-IN features is the ideal solution for OpenVINO based AI accelerators platform and advanced Edge AI, Intelligent Control, Factory Automation Industry 4.0,Internet of Things (IoT) and Edge Computing applications
Features
- Intel® Amston Lake ATOM® x7000 series CPU
- Onboard LPDDR5, Max. 32GB
- Independent display: HDMI®
- 3 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x USB 2.0
- 2 x COM, 2 x M.2, 1 x Nano SIM
- TPM 2.0
| MODEL | 2I740DW |
|---|---|
| CPU | Intel® Amston Lake ATOM® x7000 series CPU |
| MB Chipset | Intel® Amston Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.6 |
| System Memory | Onboard LPDDR5 4800 MHz , Max. 32GB |
| Storage | 1 x M.2 B Key Type 3042 / 2242 SATA-SSD 1 x M.2 B Key Type 2242 PCIe-SSD |
| BIOS | Insyde UEFI 64BIOS |
| Display | 1 x HDMI® |
| TPM | Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0 |

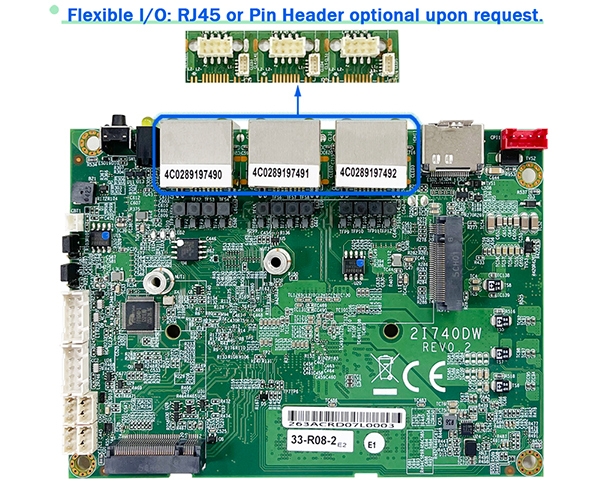

| LAN | 3 x Intel 2.5 GbE I226 (external) |

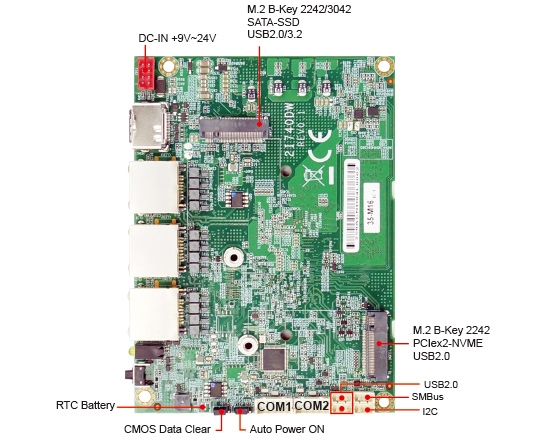

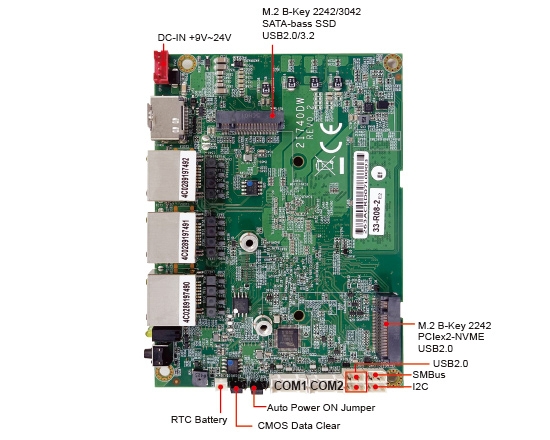

| Expansion Interface | 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0) 1 x M.2 B Key Type2242/3042 (SATA / USB 3.2 / USB 2.0 ) 1 x Nano SIM |
| Expansion Module | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic-in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) |
| USB | 3 x USB 3.2 Gen 1 (external) ; 2 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1~COM2 pin9 5V (Option) |
| SMBus / I2C | 1 x SMBus, 1 x I2C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~24V |
| Dimension | 2.5" Plus (115.4 x 84.5 mm) ; Weight: 85g |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: NET-II |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073-S5+ME225-S | Capture Card | HDMI video capture card |
| CN073-S5+CU006-S | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S5+CN063 | Converter Board | USB 3.0 to 4 x M.2 B Key 3042/3052 slot with 4*SIM |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN073-S3+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CC107 | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW209 | Power Board | Wide range DC IN with Surge stopper function |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
請左右滑動表格
