Single Board Computer

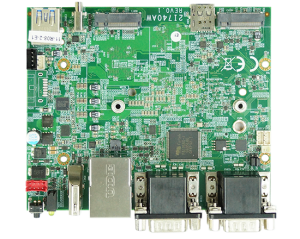

2I740AW
2.5" Plus SBC supports Intel® Amston Lake ATOM® x7000 series CPU

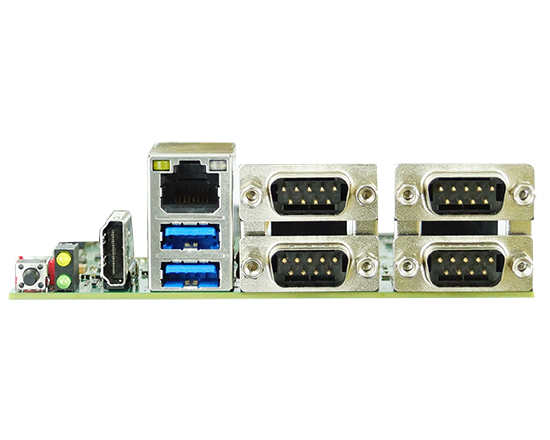

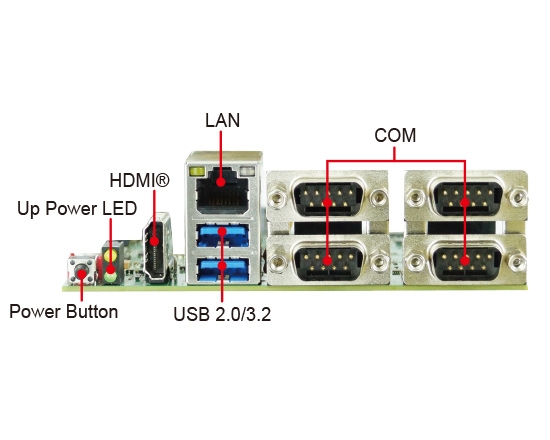

1 x HDMI®, 1 x USB 3.2 Type C DP ALT, 1 x Intel 2.5Gb Ethernet,

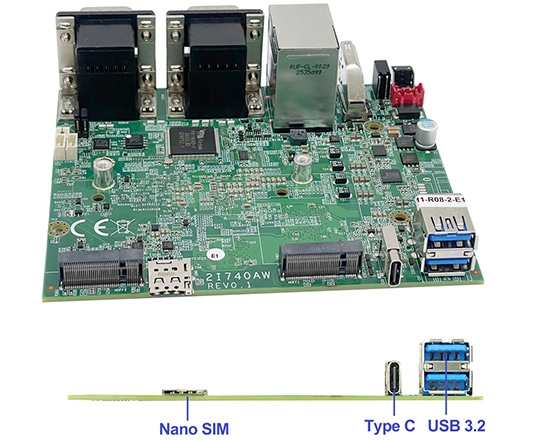

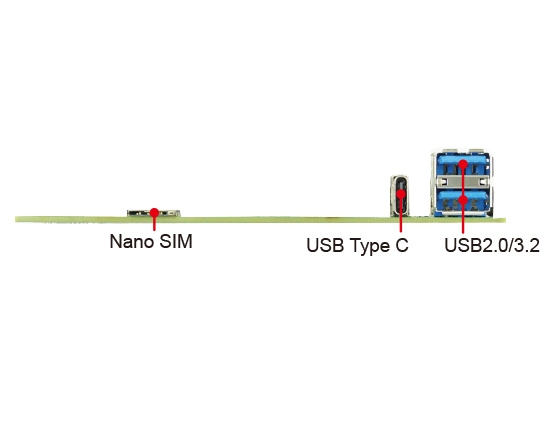

5 x USB, 4 x COM, 2 x M.2, 1 x Nano SIM
1 x HDMI®, 1 x USB 3.2 Type C DP ALT, 1 x Intel 2.5Gb Ethernet,
5 x USB, 4 x COM, 2 x M.2, 1 x Nano SIM
Overview

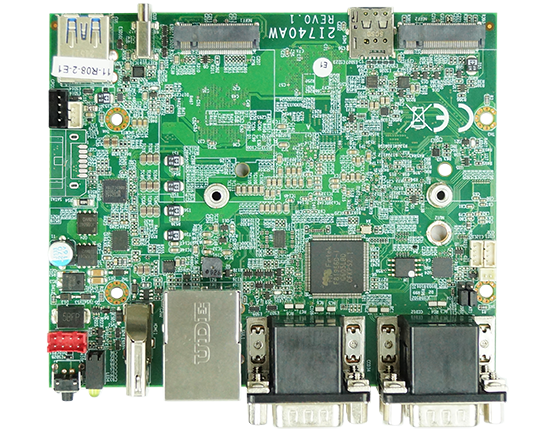

LEX SYSTEM 2.5” Plus SBC (117 x 98.2 mm) - 2I740AW is powered by Intel Atom® x7000 Series processors (formerly Amston Lake). Featuring 4 x COM ports, 1 x 2.5GbE LAN, 5 x USB ports, 1 x USB 3.2 Type-C (DP ALT mode), 1 x HDMI®, onboard LPDDR5 memory, onboard eMMC (32-256 GB), and 2 x M.2 along with 1 x Nano SIM expansion slots, it offers the perfect platform for superior graphics performance, integrated IoT features, real-time processing, manageability, and security.
Combined with excellent CPU performance, flexible RS-232/422/485 connectivity, and a wide-range 9-24V DC-IN power input, the 2I740AW is the ultimate solution for OpenVINO™-based AI accelerator platforms. It is ideal for advanced Edge AI, Intelligent Control, Factory Automation (Industry 4.0), Internet of Things (IoT), and Edge Computing applications.
Features
- Intel® Amston Lake ATOM® x7000 series CPU
- Onboard LPDDR5, 8GB / 16GB / 32GB
- eMMC 5.1 32GB~256GB
- Independent display: 1 x HDMI® ; 1 x Type C DP ALT*
- 1 x Intel 2.5 GbE LAN, 4 x USB 3.2, 1 x USB 2.0,
1 x USB 3.2 Type C* - 4 x COM, 2 x M.2, 1 x Nano SIM
- TPM 2.0
| MODEL | 2I740AW |
|---|---|
| CPU | Intel® Amston Lake ATOM® x7000 series CPU |
| MB Chipset | Intel® Amston Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.6 |
| System Memory | Onboard LPDDR5 4800 MHz, 8GB / 16GB / 32GB |
| Storage | eMMC 5.1 32GB~256GB 1 x M.2 PCIe-SSD (NVMe) 1 x M.2 SATA-SSD |
| BIOS | Insyde UEFI 64BIOS |
| Display | 1 x HDMI® ; 1 x Type C DP ALT * (Full-featured: DP Alt Mode, USB 3.2, PD input / output, Touch Screen) |
| TPM | TPM 2.0 |
| LAN | 1 x Intel 2.5 GbE I226IT (external) |

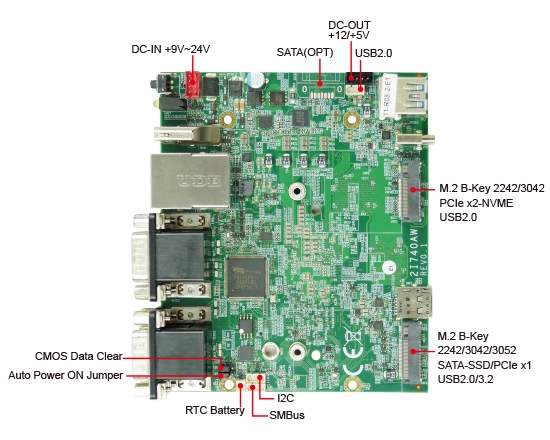

| Expansion Interface | 1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 2.0) 1 x M.2 B Key Type2242 / 3042 (SATA / PCIe / USB 3.2 / 2.0)-OEM to Type 3052 1 x Nano SIM |
| Expansion Module | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) |
| USB | 4 x USB 3.2 Gen 1 (external) ; 1 x USB 2.0 (internal) ; 1 x USB 3.2 Type C |
| Serial IO | 4 x RS232 / 422 / 485 *COM1~COM4 Pin9 5V / 12V (option) |
| SMBus / I2C | 1 x SMBus, 1 x I2C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~24V |
| Dimension | 2.5" Plus (117 x 98.2 mm) ; Weight: 120g |
| Operation Temperature | -40°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: TERA, FOX |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073-S5+ME225-S | Capture Card | HDMI video capture card |
| CN073-S5+CU006-S | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S5+CN063 | Converter Board | USB 3.0 to 4 x M.2 B Key 3042/3052 slot with 4*SIM |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN073-S3+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CC107 | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW209 | Power Board | Wide range DC IN with Surge stopper function |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
