Mini PCIe模組／轉換板
M202A

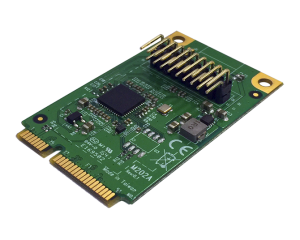

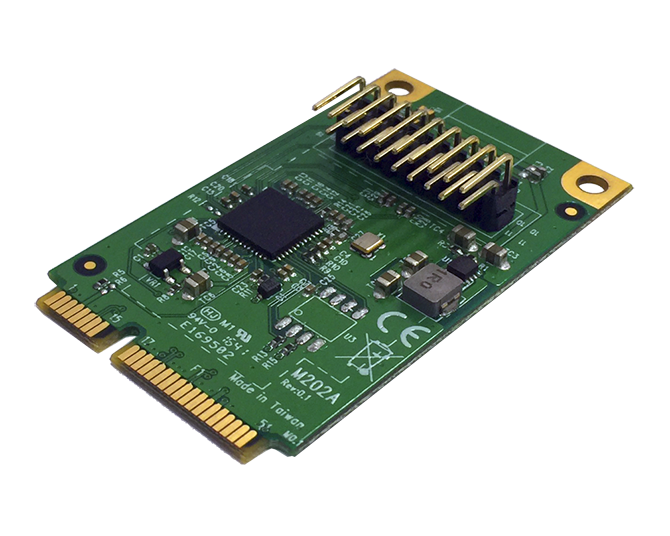

Mini PCIe to 2 Ports USB 3.0 / 2.0 module
特色
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
- Expands two external USB3.0 Super-Speed ports on the system
- Each USB port supplies maximum +5V / 900mA power output to USB device
- Built-in 4-pin power connector for receiving extra power supply from system
- Hot-swappable feature helps to replace/ plug into devices without stopping, shutting down or rebooting the system.
- Supports Microsoft Windows 2000, XP, Vista, and 7 operation system .
| MODEL | M202A |
|---|---|
| Type | Mini PCIe to 2 Ports USB 3.0 / 2.0 |
| Input | Mini PCIe |
| Output | 2 x Type A USB Connector (UB006) 2 x Type B USB Connector (UB007) |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | M202A: 50.95 x 30 mm UB006 / UB007: 74 x 25 mm |
