嵌入式單板電腦
2I110D + Hailo-8™ AI module
2.5" Plus SBC supports Intel® 11th Gen Tiger Lake-UP3 i7 / i5 / i3,
Celeron CPU, HDMI, eDP, 4 x Intel Gb Ethernet, 2 x M.2,
1 x Nano SIM, 4DI / 4DO, 3 x USB 3.2, 6 x USB 2.0,
2 x COM, SMBus

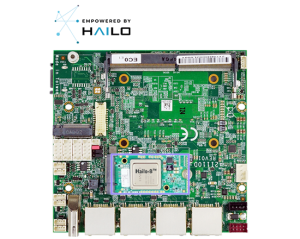

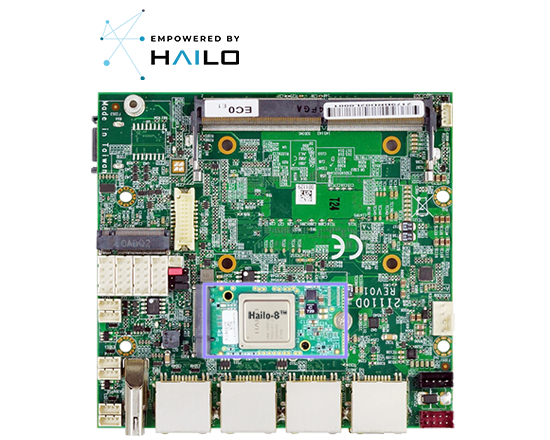

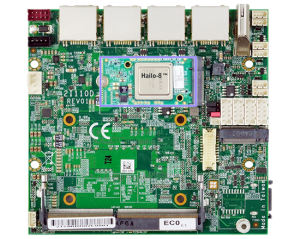

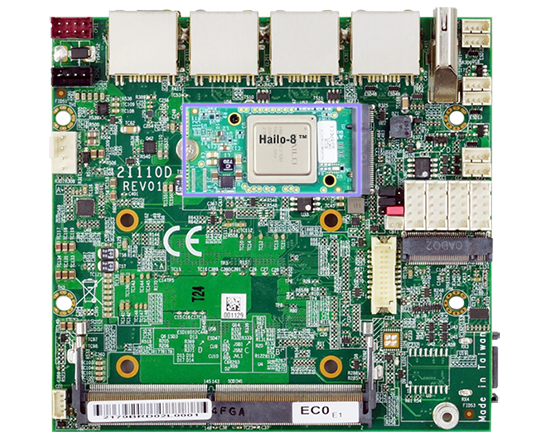

Pre-installed M.2 Hailo-8™ AI Accelerator
Celeron CPU, HDMI, eDP, 4 x Intel Gb Ethernet, 2 x M.2,
1 x Nano SIM, 4DI / 4DO, 3 x USB 3.2, 6 x USB 2.0,
2 x COM, SMBus
Pre-installed M.2 Hailo-8™ AI Accelerator
總覽
LEX SYSTEM 2I110D 是第 11 代Intel® Tiger Lake-UP3 i7/i5/i3/Celeron 處理器，專為邊緣視覺運算而設計。全新整合的高效能、低功耗SoC，更結合AI加速功能，進一步提升邊緣運算中 AI人工智慧的效能，輕鬆、精準地處理電腦視覺、高工作負載等複雜運算的應用。 2I110D 還提供高速I/O 端口，包括4 x GbE LAN 端口（3 x 2.5G 和1x GbE）、3 x USB 3.2、6 x USB 2.0、2 x 串口和1 x M.2 B-key與Nano SIM和支援NVMe的1 x M.2 M-key插槽。
此外，透過採用M.2插槽，2I110D可輕鬆安裝Hailo-8™ AI加速模組，用於AI應用。 Hailo-8™ AI 模組與 2I110D 的高度相容性最大限度地發揮邊緣 AI 的功能並幫助客戶加快上市時間。 2I110D 與 Hailo-8™ 模組的配對使開發人員能夠以更低的功耗運行複雜的深度學習和機器視覺應用程序，適用於智慧交通、工廠自動化和遠距醫療應用程式。

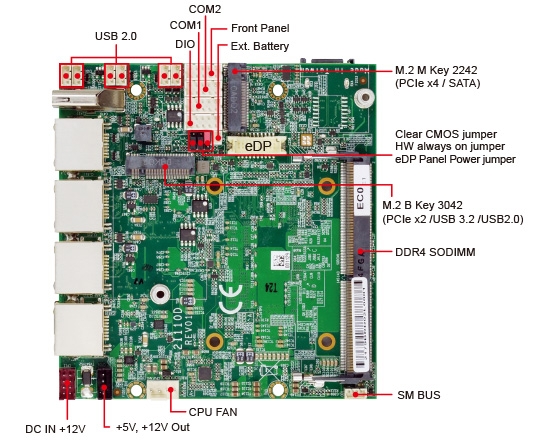

特色
- 11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
- Pre-installed M.2 Hailo-8™ AI Accelerator
- 1 x DDR4 SODIMM (Max. 32GB)
- Multiple Independent display: HDMI, eDP

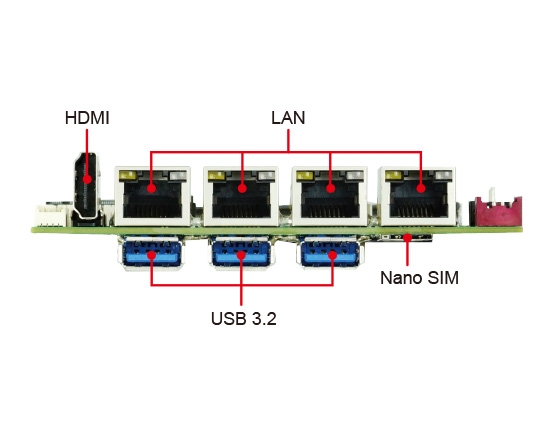

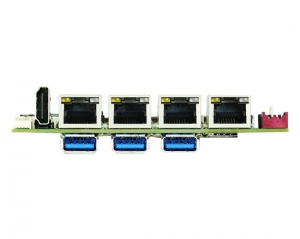

- 4 x Intel GbE LAN, 3 x USB 3.2 (type A), 6 x USB 2.0
- 2 x COM, 4DI / 4DO, 1 x Nano SIM
- 1 x M.2 B Key, 1 x M.2 M Key
- TPM 2.0, SMBus
| MODEL | 2I110D + Hailo-8™ AI module |
|---|---|
| CPU | Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Tiger Lake-UP3 SoC |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.0 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI, eDP |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 1 x Intel GbE I219LM (external) 3 x Intel 2.5 GbE I225-IT (external) w/Core CPU or 3X I225-V w/Celeron CPU |
| Expansion Interface | 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0), 1 x Nano SIM 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 3 x USB 3.2 (Type A) 6 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) ; eSPI *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | DC IN +12V |
| Dimension | 2.5" Plus (108 x 102 mm) |
| Operation Temperature (100 % CPU Usage) |
-40°C~+70°C (Core i GRE series CPU) -20°C~+70°C (Core i G7E / G7 series CPU) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2 |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
