Single Board Computer
3I640A / 3I640CW
3.5" Embedded IPC Board supports Intel® Elkhart Lake ATOM® x6413E / J6412 CPU,
HDMI, DVI, LVDS, 2 x Intel 2.5 Gb Ethernet, 6 x USB, Touch Screen,
6 x COM, 2 x M.2, 1 x Mini PCIe, 1 x Mini SIM, 8DI / 8DO
HDMI, DVI, LVDS, 2 x Intel 2.5 Gb Ethernet, 6 x USB, Touch Screen,
6 x COM, 2 x M.2, 1 x Mini PCIe, 1 x Mini SIM, 8DI / 8DO
Overview

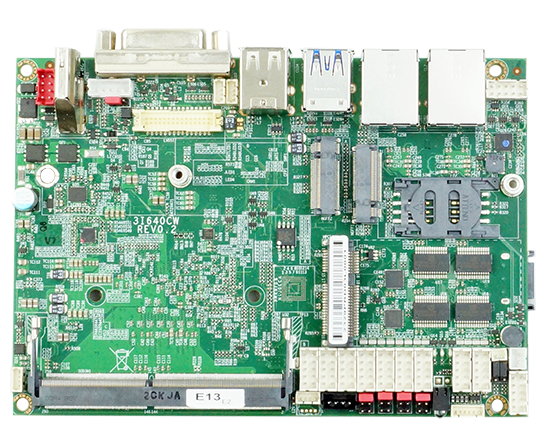

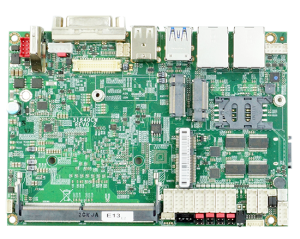

LEX System 3.5” (146 x 102 mm) SBC: 3I640A/CW is with Intel Atom® x6000E Series and Celeron® J (formerly Elkhart Lake ) Series processors. 3I640A/CW integrated 2x 2.5 GbE LAN, 6 x USB, 6 x COM Port , 1 x HDMI, 1 x DVI, 1 x LVDS display interface and 1 x Mini PCIe, 2 x M.2 expansion slot offers the ideal platform for graphics performance with integrated AIoT features, real-time performance, manageability, and security. 3I640A/CW with excellent processor performance, multiple Serial ports and touch screen controller features is the ideal solution for AI accelerators platform and advanced Edge AI, Intelligent Control, Factory Automation Industry 4.0,Internet of Things (IoT) and Edge Computing applications.
Features
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- 1 x DDR4 SODIMM, Max. 32GB
- Independent display: HDMI, DVI, LVDS
- 2 x Intel 2.5 GbE LAN, 2 x USB 3.0, 4 x USB 2.0
- 6 x COM, 1 x Mini PCIe, 2 x M.2, 1 x Mini SIM
- Touch Screen, 8DI / 8DO
- TPM 2.0 (option)
| MODEL | 3I640A / 3I640CW |
|---|---|
| CPU | Intel® Elkhart Lake ATOM® x6413E / J6412 CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | 1 x DDR4 SODIMM, Max. 32GB |
| Storage | 1 x M.2 B Key Type 2242 PCIe-SSD, Suppore NVMe 1 x SATA 1 x M.2 SATA-SSD |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x HDMI, 1 x DVI, 24 / 48bits LVDS Touch USB interface Touch Screen controller |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM 2.0 |
| LAN | 2 x Intel 2.5 GbE I225 / I226 (external) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x M.2 B Key Type3042 (SATA / USB 2.0 / USB 3.0) 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0), support NVMe 1 x Mini PCIe (USB 2.0 / PCIe) 1 x Mini SIM |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) |
| USB | 2 x USB 3.0 (external) ; 2 x USB 2.0 (external) + 2 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) 4 x RS232 (internal) *COM1~COM4 pin9 5V / 12V (by Jumper) ; com5 / 6 (OEM BOM) |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| SMBus | 1 x SMBus |
| Power Input | DC-IN +12V or Wide Range +9~36V |
| Dimension | 3.5" (146 x 102 mm) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (100 % CPU Usage) -40°C by OEM Option |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC : SKY 3, TASK, TWITTER |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| M061R | Mini PCIe Card | PCIe to SATA x 2 RAID mini card |
| M113A+CIO116 | Digital I/O board | Optocouplerrr isolated 16DI 16DO solution |
| M212A-1S+CL001 | Networking / Communication | PCIe to GbE LAN |
| M212A-2S+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| M212A-1S+PW351 | PoE Module | 1 port PSE up to 25.5W |
| M212A-2S+PW352 | PoE Module | 2 port PSE up to 30.8W |
| M213A+CN052 | Networking / Communication | 1000Base-BX fiber board |
| M504B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954C | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073+ME225 | Capture Card | HDMI video capture card |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CN073+CL006 | Converter Board | USB 3.0 to 4 x USB 3.0 |
| M113A-S+CIO116-B | Digital I/O board | Optocoupler isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP001 | Display & Audio board | eDP to LVDS |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
