Single Board Computer
2I130HW
2.5" Plus Embedded SBC supports
Intel® 13th Gen Raptor Lake-P / U ;
Intel® 12th Gen Alder Lake-P / U i7 / i5 / i3 CPU
1 x HDMI, 1 x eDP, 1 x LVDS, 2 x Intel 2.5Gb Ethernet, 1 x M.2,
1 x Mini PCIe, 4DI / 4DO, 4 x USB 3.2, 4 x USB 2.0, 2 x COM, Audio
Intel® 13th Gen Raptor Lake-P / U ;
Intel® 12th Gen Alder Lake-P / U i7 / i5 / i3 CPU
1 x HDMI, 1 x eDP, 1 x LVDS, 2 x Intel 2.5Gb Ethernet, 1 x M.2,
1 x Mini PCIe, 4DI / 4DO, 4 x USB 3.2, 4 x USB 2.0, 2 x COM, Audio
Overview

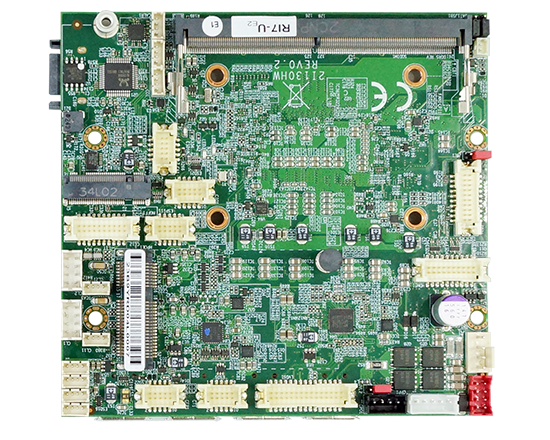

LEX SYSTEM 2I130HW is the 2.5" Plus SBC with Intel® 13th Gen Raptor Lake-U & 12th Gen Alder Lake-U i7/i5/i3/Celeron processor designed for high performance Edge Computing and AI computing. The 2I130HW combines Intel's new graphics architecture and up to 32GB DDR5 memory to ensure improved graphics performance. The 2I130HW also provides high-speed 2 x 2.5 GbE LAN ports, wide range 9~36VDC input , HDMI, eDP, LVDS display, touch screen controller & HD Audio, 4 x USB 3.2 (Type A), 4 x USB 2.0 , 2 x serial ports , 1 x Mini PCIe slot, 1x M.2 B -key supports NVMe with high flexible expansion via wafer type I/Os and also provides user hassle-free solution of integrating the SBC board within various mechanical enclosures.
Features
- Intel® 13th Gen Raptor Lake-P / U
Intel® 12th Gen Alder Lake-P / U i7 / i5 / i3 CPU - 1 x DDR5 SODIMM (Max. 32GB)
- Multiple Independent display: HDMI, eDP, LVDS
- 2 x Intel 2.5 GbE LAN, 4 x USB 3.2 Gen 1 x 1 (type A), 4 x USB 2.0
- 2 x COM, 4DI / 4DO, HD Audio
- 1 x Mini PCIe, 1 x M.2 B Key
- TPM 2.0
DDR5 horizontal type memory clip installation guide
| MODEL | 2I130HW |
|---|---|
| CPU |
Intel® 13th Gen Raptor Lake-P / U i7 / i5 / i3, Pentium CPU |
| MB Chipset | Intel® Raptor Lake / Alder Lake SoC |
| Graphics | Intel UHD Graphics |
| System Memory | 1 x DDR5 5200 / 4800 MHz SODIMM, Max 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 2242 (PCIe x2 / USB 2.0), Support NVMe 1 x Full Size Mini PCIe (SATA) |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI, 1 x eDP, 1 x Dual Channel, 48 bit LVDS Touch Screen controller |
| TPM | TPM 2.0 |
| LAN | 2 x Intel 2.5GbE I226-IT (internal) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Full Size Mini PCIe (PCIe / SATA / USB 2.0), 1 x M.2 B key Type 2242 (PCIe x2 / USB 2.0), Support NVMe |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 4 x USB 3.2 Gen 1 x 1 (Type A-external) 4 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus / I²C | 1 x SMBus / 1 x I²C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +9~36V |
| Dimension | 2.5" Plus (108 x 102 mm) |
| Operation Temperature (100 % CPU Usage) |
-40°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
Waterproof SYSTEM / Panel PC, OEM Chassis |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| M061R | Mini PCIe Card | PCIe to SATA x 2 RAID mini card |
| M113A+CIO116 | Digital I/O board | Optocouplerrr isolated 16DI 16DO solution |
| M212A-1S+CL001 | Networking / Communication | PCIe to GbE LAN |
| M212A-2S+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| M212A-1S+PW351 | PoE Module | 1 port PSE up to 25.5W |
| M212A-2S+PW352 | PoE Module | 2 port PSE up to 30.8W |
| M213A+CN052 | Networking / Communication | 1000Base-BX fiber board |
| M504B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954B | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| M954C | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| M113A-S+CIO116-B | Digital I/O board | Optocouplerrr isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocouplerr isolated 8DI 8DO board (SMBus interface) |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
