顯示＆音訊

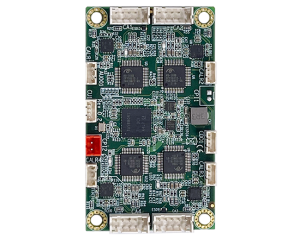

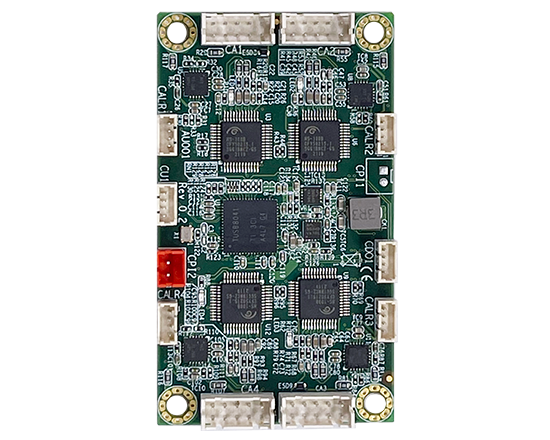

AU001
USB2.0 to 4 CH Audio MIC-in, Line-out & 4 Amplifier.
特色
- One USB2.0 single 1x4 pin 1.25mm wafer.
- Four Line-out & MIC-in 2x5 pin 2.0mm wafer.
- Four Amplifier 1x4 pin 1.25mm wafer.
- One +5V power input 1x2 pin 2.0mm wafer.
- One control Audio / Amplifier ON/OFF 1x4 pin 1.25mm wafer.
- Use TUSB8041 RGCR USB3.0 HUB.
- Use HS-100B USB audio single chip.
- Use TPA2012D2RTJ (2.1W/4Ω) amplifier single chip.
- Compliant with USB Audio Device class specification v1.0.
- Compliant with USB 2.0 Full-Speed operation.
| MODEL | AU001 |
|---|---|
| Type | USB 2.0 to 4 CH Audio with Amplifier |
| Interface | USB 2.0 |
| Function | 4 CH MIC in, Line out & 4 Audio AMP |
| Operating Temperature | 0°C ~ +70°C |
| Dimensions | 40 x 70 mm |
