嵌入式單板電腦

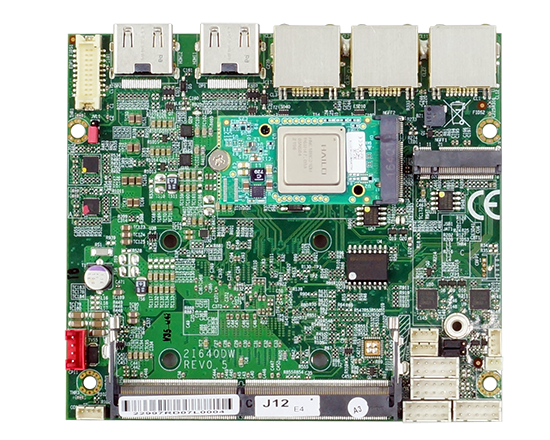

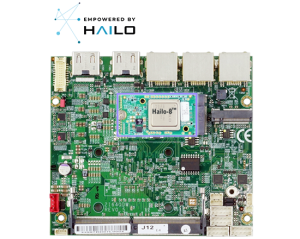

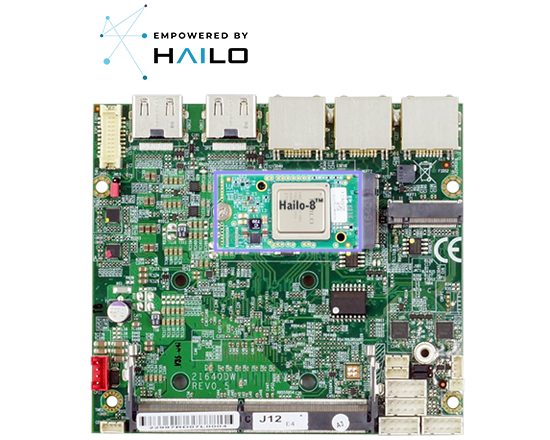

2I640DW + Hailo-8™ AI module

2.5" Plus SBC supports Intel® Elkhart Lake ATOM® x6000E Series,
2 x HDMI, 3 x Intel 2.5 Gb Ethernet, 4DI / 4DO, 5 x USB, 2 x COM,
2 x M.2, 1 x Nano SIM, SMBus,
Pre-installed M.2 Hailo-8™ AI Accelerator

總覽

LEX System 2.5吋(110 x 98 mm) 主機板：2I640DW-Hailo-8 採用 Intel Atom® x6000E 系列及 Celeron®（Elkhart Lake）系列處理器。 2I640DW 整合3 x 2.5GbE岡口、5 x USB、2 x 串列埠、2 x HDMI（或DP）顯示介面和2 x M.2 擴充槽提供理想的圖形效能平台，具有整合的物聯網功能、即時效能、可管理性和安全性。



此外，透過採用M.2插槽，2I640DW可以輕鬆安裝Hailo-8™ AI加速模組用於AI應用。 Hailo-8™ 邊緣 AI 模組透過最大限度地發揮邊緣 AI 的功能並幫助客戶加快上市時間，提供與 2I640DW 的高度相容性。 2I640DW 與 Hailo-8™ 模組的配對使開發人員能夠以更低的功耗運行複雜的深度學習和機器視覺應用。





特色

  • Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
  • Pre-installed M.2 Hailo-8™ AI Accelerator
  • 1 x DDR4 SODIMM socket, Max. 32GB
  • Independent display: 2 x HDMI (OEM to DP), 1 x eDP
  • 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0
  • 2 x COM, 4DI / 4DO, 2 x M.2, 1 x Nano SIM
  • TPM 2.0, SMBus

Watch Video

Watch Video

2I640DW + Hailo-8 AI module Datasheet
MODEL 2I640DW + Hailo-8™ AI module
CPU Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU
Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU
MB Chipset Intel® Elkhart Lake SoC
Graphics Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5
System Memory 1 x DDR4 3200 MHz SODIMM, Max. 32GB
Storage 1 x M.2 B Key Type 3042 / 2242 PCIe-SSD
1 x M.2 B Key Type 2242 SATA-SSD
BIOS Insyde UEFI BIOS
Display 2 x HDMI (OEM Option to DP)
TPM TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM
LAN 3 x Intel 2.5 GbE I225 (external)
Expansion Interface

1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0), 1 x Nano SIM
1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0 / SATA)
Expansion Options

CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT
CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control)
CN059 : USB to Line-out / Mic- in
CC007 : USB to 4 port COM
CIO116G : SMBus to 8DI + 8DO
PW351 : 1 port PoE PSE
PW352 : 2 port PoE PSE
PW301 : 802.3AF / AT PD module
PW205 : Wide Range power board (9~36V) with power Ignition on/off delay
PW206 : 12V / 24V DC to DC Redundant Power Board
PW022 : Wide Range power board (24V / 48V)
DP001 : eDP to VGA 　
eDP003 : eDP to DVI 　
eDP004 : eDP to HDMI
eDP001 : eDP to LVDS (OEM)
USB 2 x USB 3.0 (external) ; 3 x USB 2.0 (internal)
Serial IO

2 x RS232 / 422 / 485 (internal)

*COM1, COM2 pin9 5V / 12V (Option)
GPIO Hardware digital Input & Output, 4 x DI / 4 x DO
SMBus 1 x SMBus
WDT Hardware Watch Dog Timer, 0~255 sec programmable
Power Input Wide Range +9~24V
Dimension 2.5" Plus (110 x 98 mm)
Operation Temperature -20°C~70°C (100 % CPU Usage)
Operation Humidity 5~95%, non-condensing
Chassis (OEM I/O Expansion by request) Box PC: SKY 2, TERA
OS Support Windows® 10 IOT ; Windows® 11 IOT
Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container
