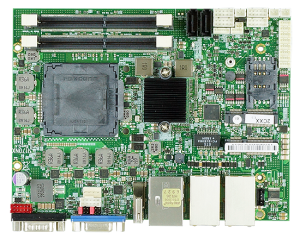

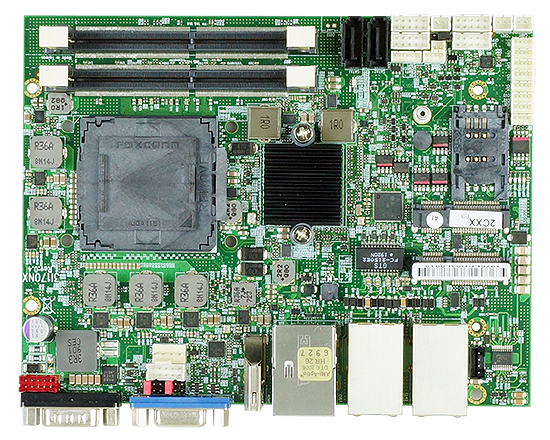

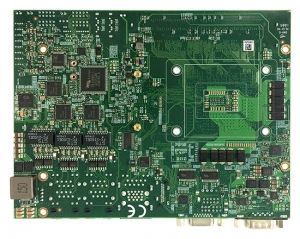

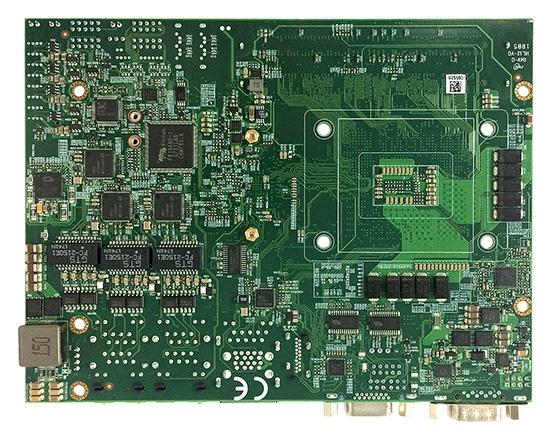

3I170NX

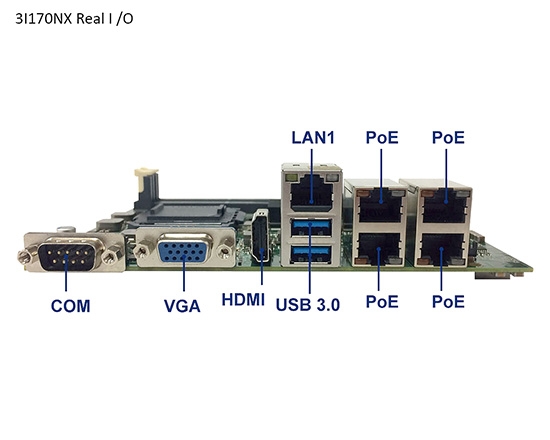

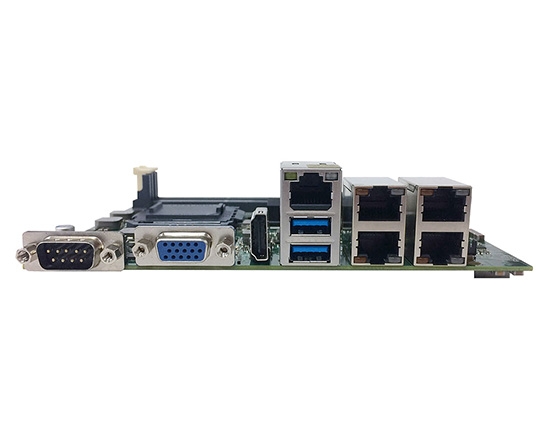

VGA, HDMI, 4 x PoE LAN, 1 x Intel Gb Ethernet,
8DI / 8DO, 10 x USB, 2 x COM, 2 x Mini PCIe,1 x SIM, SMBus
總覽
LEX SYSTEM 3I170NX 由第6 代/第7 代Intel® Core™ i3/i5/i7 和Celeron® 處理器（前身為Skylake-S /Kaby Lake-S）提供支持，內建5 x GbE（4 x PoE）用於視覺攝影機；是要求嚴格的機器視覺控制器應用的理想平台。 3I170NX 將這種處理能力與高達 64GB 的 DDR4 SODIMM RAM 和豐富的 I/O 功能相結合，包括 2 個 RS-232/422/485 串行端口、2 個 USB 3.0 和 8 個 USB 2.0 連接埠。 3I170NX 還具有顯示連接埠的靈活性，包括 HDMI 和 VGA。用戶還可以利用 3I170NX 的可擴充性，帶有兩個 mPCIe 插槽和一個 SIM 卡插槽擴充。寬電壓輸入（12-36V）以及支援寬工作溫度的特點，加上其緊湊的3.5吋外形尺寸，使3I170NX可輕鬆部署到智慧製造、監控、智慧交通和自動化領域等應用中。
特色
- 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S, i7 / i5 / i3 / Celeron CPU
- Intel® Q170 chipset
- 2 x DDR4 1866 / 2133 MHz SODIMM, Max. 64GB
- Multiple Independent display: VGA & HDMI
- 4 x PoE, 1 x Intel GbE LAN, 2 x USB 3.0, 8 x USB 2.0
- 2 x COM, 8DI / 8DO, 2 x Mini PCIe, 1 x SIM, SMBus
- TPM 2.0

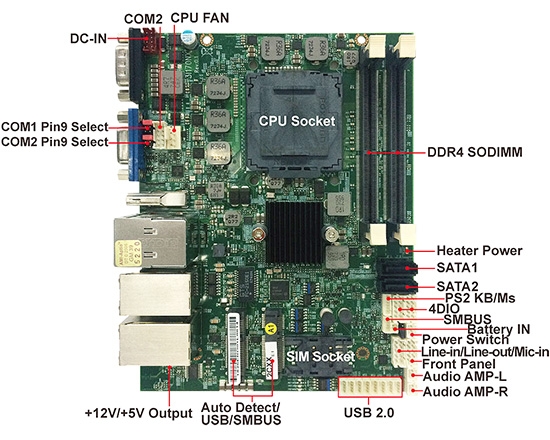

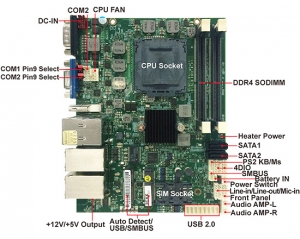

| MODEL | 3I170NX |
|---|---|
| CPU Type | 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Q170 chipset |
| Graphics | Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5 |
| System Memory | 2 x DDR4 1866 / 2133 MHz SODIMM, Max. 64GB |
| Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 2 x mini card socket for mSATA |
| BIOS | AMI UEFI BIOS |
| Display | 1 x VGA, 1 x HDMI |
| TPM | TPM 2.0 |
| LAN | 4 x Intel GbE (PoE) (external) 1 x Intel GbE I219LM (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Half size Mini PCIe (PCIe / mSATA / USB) 1 x SIM |
| Expansion Module |
Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video |
| USB | 2 x USB 3.0 (external) ; 8 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
1 x RS232 / 422 / 485 (external) *COM1, COM2 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| PS2 KB / MS | PS2 KB / MS (internal) |
| Power Input | Wide Range +12~36V |
| Dimension | 160 x 122 mm |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 6700TE) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), |
| Chassis (OEM I/O Expansion by request) | Box PC : SKY 3 |
