嵌入式單板電腦
2I740DW

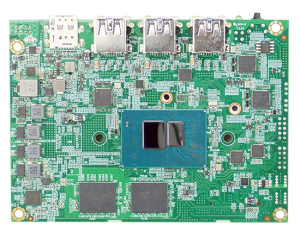

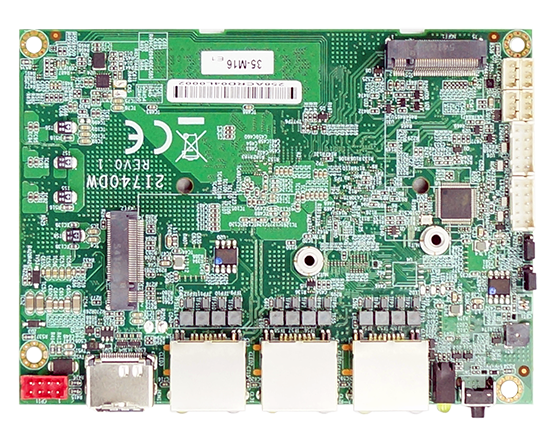

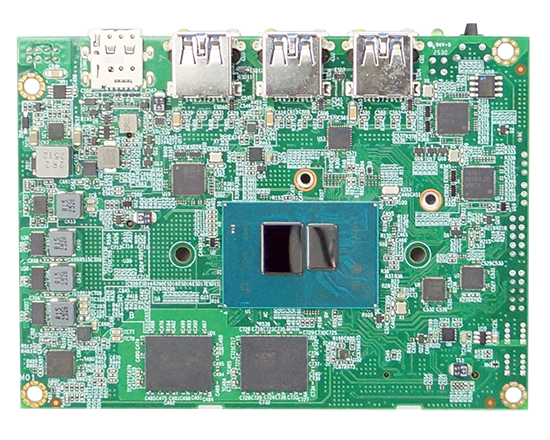

2.5" SBC supports Intel® Amston Lake ATOM® x7000 series CPU

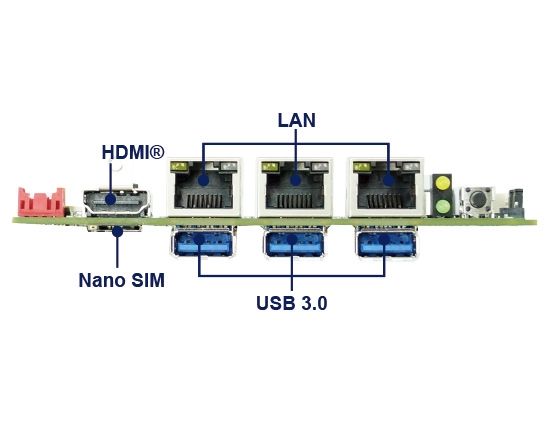

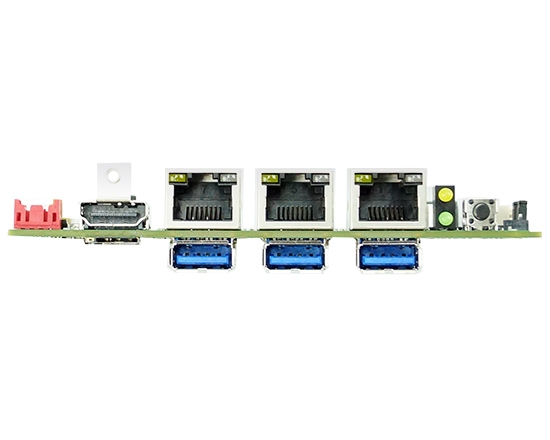

1 x HDMI®, 3 x Intel 2.5Gb Ethernet, 5 x USB, 2 x COM, 2 x M.2,
1 x Nano SIM
1 x HDMI®, 3 x Intel 2.5Gb Ethernet, 5 x USB, 2 x COM, 2 x M.2,
1 x Nano SIM
總覽
LEX System 2.5” Plus 單板電腦 (115.4 x 84.5 mm): 2I740DW 搭載 Intel Atom® x7000 系列處理器（代號 Amston Lake）。
2I740DW 集成 3 個 2.5GbE LAN、5 個 USB 介面、2 個 COM 埠、HDMI® 以及 2 個 M.2 擴充槽，在圖形效能、物聯網功能、即時效能、可管理性與安全性方面，提供理想的平台。
憑藉卓越的處理器效能、多組 2.5G 乙太網路埠以及 9-24V 寬範圍直流電源輸入，2I740DW 是 基於 OpenVINO 的 AI 加速平台，以及 先進邊緣 AI、智慧控制、工廠自動化（工業 4.0）、物聯網 (IoT) 與邊緣運算應用 的理想解決方案
特色
- Intel® Amston Lake ATOM® x7000 series CPU
- Onboard LPDDR5, Max. 32GB
- Independent display: HDMI®
- 3 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x USB 2.0
- 2 x COM, 2 x M.2, 1 x Nano SIM
- TPM 2.0
| MODEL | 2I740DW |
|---|---|
| CPU | Intel® Amston Lake ATOM® x7000 series CPU |
| MB Chipset | Intel® Amston Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.6 |
| System Memory | Onboard LPDDR5 4800 MHz , Max. 32GB |
| Storage | 1 x M.2 B Key Type 3042 / 2242 SATA-SSD 1 x M.2 B Key Type 2242 PCIe-SSD |
| BIOS | Insyde UEFI 64BIOS |
| Display | 1 x HDMI® |
| TPM | Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0 |
| LAN | 3 x Intel 2.5 GbE I226 (external) |
| Expansion Interface | 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0) 1 x M.2 B Key Type2242/3042 (SATA / USB 3.2 / USB 2.0 ) 1 x Nano SIM |
| Expansion Module | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic-in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) |
| USB | 3 x USB 3.2 Gen 1 (external) ; 2 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1~COM2 pin9 5V (Option) |
| SMBus / I2C | 1 x SMBus, 1 x I2C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~24V |
| Dimension | 2.5" Plus (115.4 x 84.5 mm) ; Weight: 85g |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: NET-II |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
