嵌入式單板電腦
3I140HW
3.5" Embedded SBC supports Intel® Core™ Ultra processors
(Meteor Lake-U/H) (Arrow Lake-U/H)
1 x HDMI®, 1 x LVDS or eDP (BIOS), 1 x Type C, 3 x Intel 2.5Gb Ethernet,
3 x M.2, 1 x High Speed Connector (PCIe x2)
4DI/4DO, 4 x USB3.2, 3 x USB 2.0, 4 x COM, 1 x Nano SIM,
2 x MIPI-CSI-2, Audio
(Meteor Lake-U/H) (Arrow Lake-U/H)
1 x HDMI®, 1 x LVDS or eDP (BIOS), 1 x Type C, 3 x Intel 2.5Gb Ethernet,
3 x M.2, 1 x High Speed Connector (PCIe x2)
4DI/4DO, 4 x USB3.2, 3 x USB 2.0, 4 x COM, 1 x Nano SIM,
2 x MIPI-CSI-2, Audio
總覽

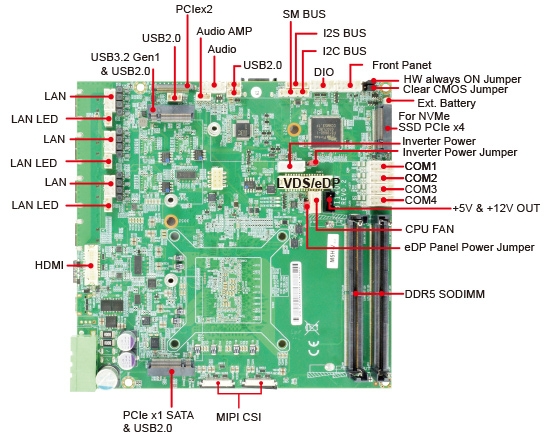

LEX SYSTEM 3I140HW 是一款 3.5 吋 Plus 單板計算機，搭載Intel® Core™ Ultra 7/5 系列處理器（Meteor Lake-U/H）（Arrow Lake-U/H），提供高效能邊緣運算與人工智慧運算能力。憑藉英特爾最新的圖形架構和最高 64GB DDR5 內存，3I140HW 可確保增強的圖形與計算性能。它提供 3 個 2.5GbE LAN 介面、寬範圍 9–36VDC 輸入、HDMI、LVDS/eDP、1 x Type C、2 個 MIPI-CSI-2、高清音訊、4 個 USB 3.2（Type A）、3 個 USB 2.0、4 個串列埠、3 個 M.2 插槽以及 1 個高速 PCIe x2 介面。透過靈活的 Wafer 型 I/O，3I140HW 可輕鬆整合至多種機械外殼中，提供多功能嵌入式解決方案。
特色
- Intel® Core™ Ultra 7/5 Series processors
(Meteor Lake-U/H) (Arrow Lake-U/H) - 2 x DDR5 SODIMM (Max.64GB)
- Multiple Independent display:
1 x HDMI®, 1 x LVDS or eDP (BIOS), 1 x Type C - 3 x Intel 2.5 GbE LAN, 4 x USB 3.2 Gen 1x1, 3 x USB 2.0
- 1 x M.2 M Key, 2 x M.2 BKey, 1 x Nano SIM, 4 x COM
- 1 x High Speed Connector (PCIe x2), 4DI/4DO, Audio
- 2 x MIPI-CSI-2, TPM 2.0, SMBus, I2C
| MODEL | 3I140HW |
|---|---|
| CPU | Intel® Core™ Ultra 7/5 Series processors (Meteor Lake-U/H) (Arrow Lake-U/H) |
| Chipset | Intel® Arc™ graphics ; Intel® UHD Graphics |
| System Memory | 2 x DDR5 SODIMM, Max 64GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2280 (PCIe x4), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI® (internal) ; 1 x LVDS or eDP (BIOS), 1 x Type C DP ALT Mode |
| TPM | Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0 |
| LAN | 3 x Intel 2.5GbE I226-IT (internal) |
| Audio | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe, (OEM to Type 3042) 1 x M.2 B key Type 2242 / 3042 (USB3.2 Gen 1x1 / USB2.0) (OEM to Type 3052) 1 x M.2 B key Type 2242 / 3042 (PCIe / SATA / USB 2.0) 1 x Nano SIM 1 x High Speed connector (PCIe x2) |
| Expansion Module | Converter Card:
CN064: M.2 B Keyto M.2 E Key 2230, WiFi 6 + BT |

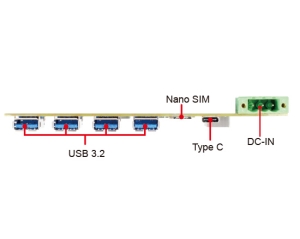

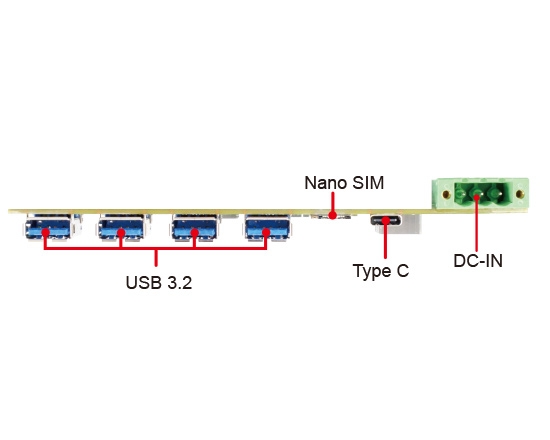

| USB | 4 x USB 3. 2 Gen 1 x 1 (external) 1 x Type C USB 3. 2 Gen 1 x 1 (external) (No USB-PD Support) ; 3 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (internal) ; eSPI *COM1~ COM4 pin9 5V / 12V (Option) |
| MIPI-CSI | 2 x MIPI-CSI-2 D-PHY |
| SMBus / I2C / I2S | 1 x SMBus ; 1 x 12C ; 1 x I2S (OEM) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +9~36V |
| Dimension | 3.5" Plus (146 x 150 mm) ; Weight: 180g |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (under specific environmental & CPU power consumption conditions) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Waterproof system, panel pc |
| OS Support | Windows 10 / 11 (64bit) Linux Ubuntu 22.04 / Kernel 5.15 |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073-S5+ME225-S | Capture Card | HDMI video capture card |
| CN073-S5+CU006-S | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S5+CN063 | Converter Board | USB 3.0 to 4 x M.2 B Key 3042/3052 slot with 4*SIM |
| CN075+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN075+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN075+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN075+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CC107 | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW209 | Power Board | Wide range DC IN with Surge stopper function |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
