無風扇嵌入式電腦系統
DIN-Rail 導軌系统
DIN-Rail 導軌系统
ROCK - 2I130DW
Fanless Embedded Computer with
13th Gen Intel® Raptor Lake-U
& 12th Intel® Alder Lake-U Processor
13th Gen Intel® Raptor Lake-U
& 12th Intel® Alder Lake-U Processor
總覽

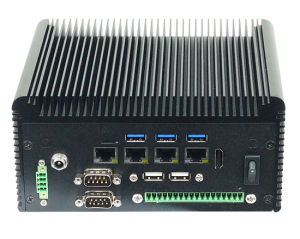

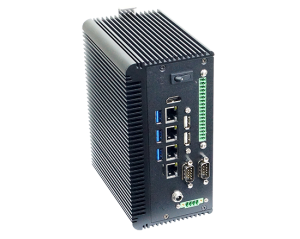

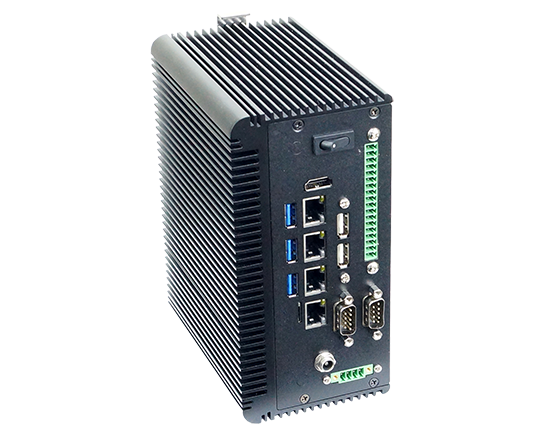

ROCK 2I130DW 是一款小型無風扇 DIN 導軌/桌上型計算機，尺寸為 173W x 130D x 85H mm。它配備第 13 代英特爾® Raptor Lake-U 和第 12 代英特爾® Alder Lake-U i7/i5/i3/Celeron 處理器，專為提供高效能邊緣人工智慧解決方案而設計。 ROCK 2I130DW 配備多個I/O：1 個HDMI、4 個2.5 Gb 乙太網路連接埠、3 個USB 3.2 連接埠、2 個USB 2.0 連接埠和2 個COM 連接埠以及用於工業通訊和控制的可選隔離數位I /O。此外，透過採用M.2插槽，ROCK 2I130DW可以充分利用WiFi 6、4G/5G無線通訊的頻寬，為AIoT和邊緣閘道應用提供廣域覆蓋和即時資料傳輸。
高性能與堅固耐用的機械設計的屬性也使 ROCK 2I130DW 成為在惡劣環境下需要高級運算的視覺檢測、視訊分析、智慧交通、智慧工廠、智慧醫療應用專案的理想邊緣 AI 解決方案。
特色
- Intel® 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU
Intel® 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU - 1 x DDR5 SODIMM (Max. 32GB)
- Multiple Independent display: 1 x HDMI
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x USB 2.0
- 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO
- Lab-tested and qualified by Intel® Edge Controls for Industrial (Intel® ECI) &
Time-Sensitive Networking (TSN)
| MODEL | ROCK - 2I130DW | |
|---|---|---|
| Motherboard | 2I130DW | |
| Dimension(WxDxH) | 173W x 130D x 85H mm | |
| Weight(Incl.M/B) | 2.2 kg | |
| Mounting | DIN-Rail Mount* System Mount* VESA Mounting* | |
| CPU | 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel Raptor Lake-U ; Alder Lake-U SoC | |
| Memory | 1 x DDR5 SODIMM socket, Max. 32GB | |
| Storage | M.2-SSD, HDD / SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (mSATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 4 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1, 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI | |
| DIO | 4 x DI / 4 x DO (Option) | |
| Optional Modules & Accessory |
*SATA Kit *DIN Rail Mounting Kit *System Mounting Kit *VESA Mounting Kit *4G / 5G, WiFi, BT, Module, Digital I/O, 2 / 4 PoE |
|
| Power | DC input : 9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
|
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
