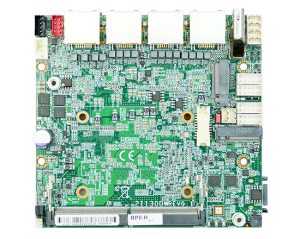

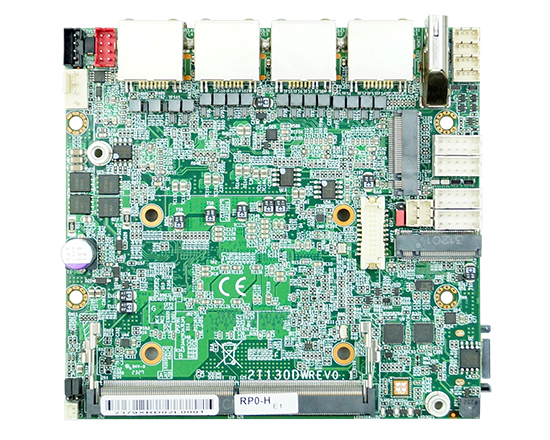

Single Board Computer
2I130DW
2.5" Plus Embedded SBC supports
Intel® 13th Gen Raptor Lake-U / ;
Intel® 12th Gen Alder Lake-U i7 / i5 / i3 CPU

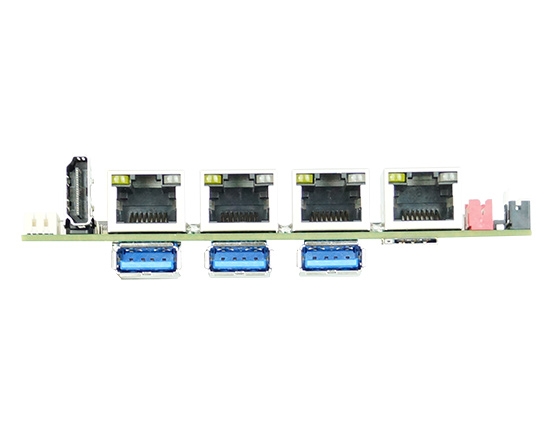

1 x HDMI®, 1 x eDP, 4 x Intel 2.5Gb Ethernet, 2 x M.2,1 x Nano SIM
4DI / 4DO, 3 x USB 3.2, 4 x USB 2.0, 2 x COM
Intel® 13th Gen Raptor Lake-U / ;
Intel® 12th Gen Alder Lake-U i7 / i5 / i3 CPU
1 x HDMI®, 1 x eDP, 4 x Intel 2.5Gb Ethernet, 2 x M.2,1 x Nano SIM
4DI / 4DO, 3 x USB 3.2, 4 x USB 2.0, 2 x COM

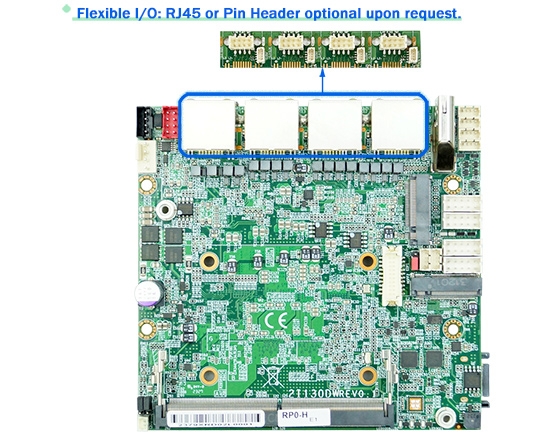

Overview
LEX SYSTEM 2I130DW is the 2.5" SBC with Intel® 13th Gen Raptor Lake-U & 12th Gen Alder Lake-U i7/i5/i3/Celeron processor designed for high performance Edge Computing and AI computing. The 2I130DW combines Intel's new graphics architecture and up to 32GB DDR5 memory to ensure improved graphics performance. The 2I130DW also provides high-speed 4 x 2.5 GbE LAN ports, wide range 9~36VDC input , HDMI®, eDP, 3 x USB 3.2, 4 x USB 2.0 , 2 x serial ports , 1 x M.2 B-Key & 1x M.2 M -key supports NVMe. The compact form factor also makes the 2I130DW a small, rugged and ideal platform for implementing artificial intelligence solutions for user intelligent transportation, factory automation and telemedicine applications
Features
- Intel® 13th Gen Raptor Lake-U ;
Intel® 12th Gen Alder Lake-U i7 / i5 / i3 CPU - 1 x DDR5 SODIMM (Max. 32GB)
- Multiple Independent display: HDMI®, eDP
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2 Gen 1 x 1 (type A), 4 x USB 2.0
- 2 x COM, 4DI/4DO, *2 x M.2, 1 x Nano SIM
- TPM 2.0
Lab-tested and qualified by Intel® Edge Controls for Industrial (Intel® ECI) &
Time-Sensitive Networking (TSN)
DDR5 horizontal type memory clip installation guide

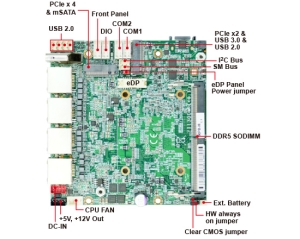

| MODEL | 2I130DW |
|---|---|
| CPU |
Intel® 13th Gen Raptor Lake-U i7 / i5 / i3, Pentium CPU |
| MB Chipset | Intel® Raptor Lake / Alder Lake SoC |
| Graphics | Intel UHD Graphics |
| System Memory | 1 x DDR5 5200 / 4800 MHz SODIMM, Max 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2280 (mSATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI®, 1 x eDP |
| TPM | TPM 2.0 |
| LAN | 4 x Intel 2.5GbE I226 (external) |
| Expansion Interface | 1 x M.2 M key Type 2280 (mSATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0), 1 x Nano SIM |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI® eDP001 : eDP to LVDS (OEM) |
| USB | 3 x USB 3.2 Gen 1 x 1 (Type A-external) 4 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus / I²C | 1 x SMBus / I²C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +9~36V |
| Dimension | 2.5" Plus (108 x 102 mm) |
| Operation Temperature (100 % CPU Usage) |
-40°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
SKY 2 |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073+ME225 | Capture Card | HDMI video capture card |
| CN073+CL006 | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| M113A-S+CIO116-B | Digital I/O board | Optocouplerrr isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocouplerr isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP001 | Display & Audio board | eDP to LVDS |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
