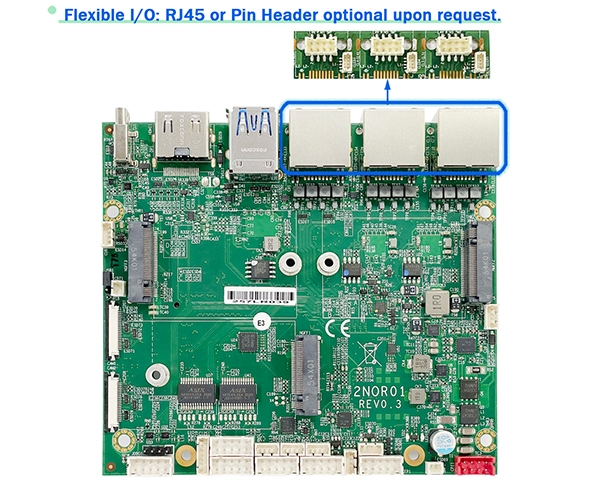

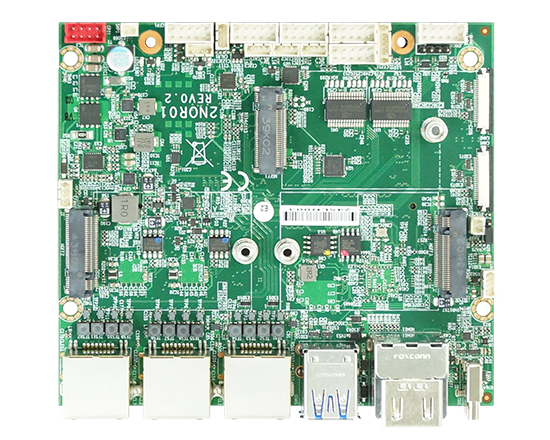

ARM-based SBC
2NOR01
Jetson Orin™ Nano (Super) / NX SoM

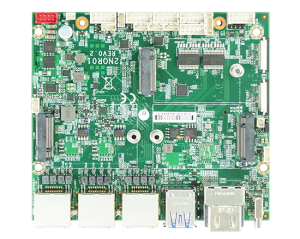

Overview
LEX SYSTEM 2NOR01 leverage the NVIDIA Jetson Orin NX / Nano (Super) modules to deliver AI performance with 40 up to 100 (TOPS) at the edge which is uniquely suited to AI video compute-intensive applications.

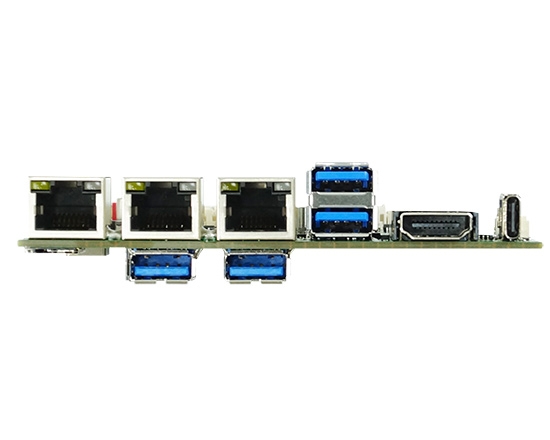

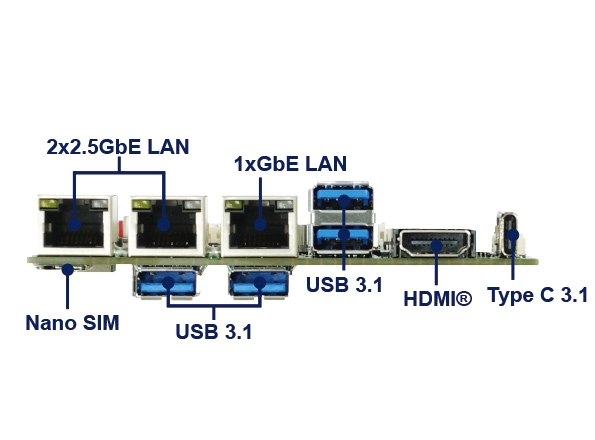

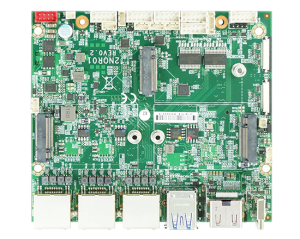

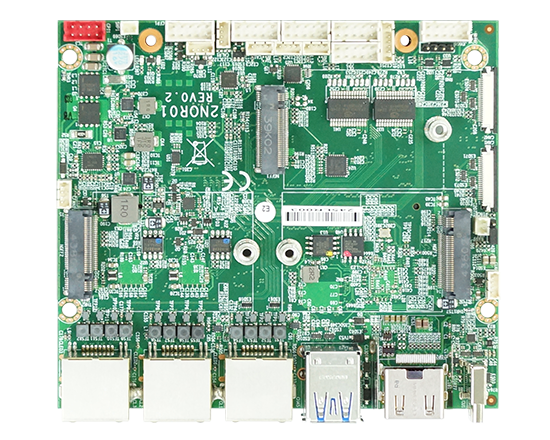

2NOR01 delivers I/O including 3 x LAN, 1 x HDMI®, 1 x Nano SIM, 4 x USB 3.1, 1 x Type C USB 3.1/2.0(OTG), 1 x USB 2.0,3 x M.2, 2 x COM ,1 x CANBus & HD Audio , 2 x MIPI-CSI for implementing AI video solutions and can fulfill requirements in various applications.

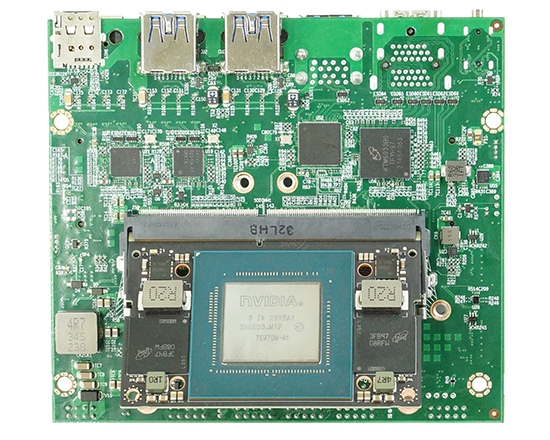

Features
CPU Board:
- NVIDIA Jetson Nano (Super) : 4 / 8GB LPDDR5, 20 / 40 TOPs
- NVIDIA Jetson NX: 8 / 16GB LPDDR5, 70 / 100 TOPs
- AI Accelerator: NVIDIA® Jetson Orin™ Nano (Super) / Orin™ NX
- 1 x HDMI 2 x 2.5GbE, 1 x GbE
- 4 x USB 3.1, 1 x Type C USB 3.1 / 2.0 (OTG), 1 x USB 2.0
- Mic-in / Line-out ; AMP 2W
- 2 x RS232 (Option RS422), 1 x CANBus

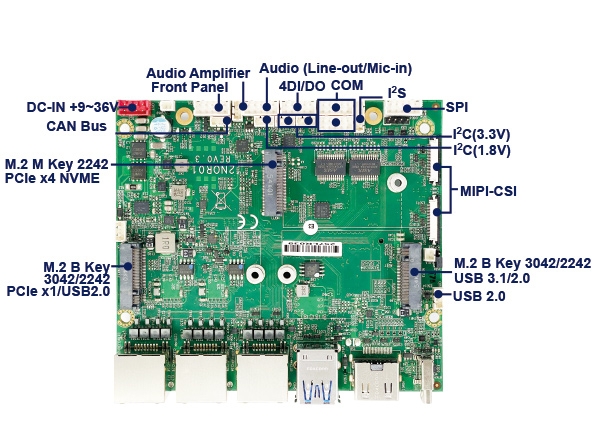

- 1 x M.2 M key 2 x M.2 B key, 1 x SIM, 4DI / 4DO
- SPI, I2S, I2C, USB 2.0, 2 x MIPI-CSI
| MODEL | 2NOR01 |
|---|---|
| CPU |
8-core Arm® Cortex®-A78AE 2.0 GHz |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| AI Accelerator |
NVIDIA Jetson Orin NX: 70 / 100 TOPs |
| System Memory | Jetson Orin NX: LPDDR5, 8 / 16GB Jetson Orin Nano (Super): LPDDR5, 4 / 8GB |
| Storage | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe |
| Display | 1 x HDMI |
| LAN | 2 x Intel 2.5 GbE I226IT ; 1 x GbE |
| Audio | Support Line-out / Mic-in Two channel Class D Audio Amplifier 2W |
| Expansion Interface | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe 1 x M.2 B key Type 3042 (PCIe x 1/ USB 2.0) ; WiFi / Bluetooth or PCIe 1 x M.2 B key Type 3042 (USB 3.1 / 2.0) ; 4G / 5G, GPS or USB Device 1 x SIM |
| Expansion Options | NF212A : M.2 B + M Key 2242 PCIe to GbE LAN NF212B : M.2 B + M Key 3042 PCIe to Dual GbE LAN PW353 : 4 port PoE Out (RJ45) PW354 : 4 port PoE Out (M12) NF226A : M.2 B + M Key 2242 PCIe to 2.5G LAN NF226B : M.2 B + M Key 3042 PCIe to Dual 2.5G LAN CC007 : USB to 4 x RS232 / 485 / 422 |
| USB | 4 x USB 3.1 (external) ; 1 x USB 2.0 (internal) 1 x USB 3.1 / 2.0 (Type C, OTG) |
| Serial IO | 2 x RS232 (Option RS422) 1 x CANBus |
| SPI, I2C | SPI, I2S, I2C |
| Camera interface | 2 x MIPI-CSI |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| Power Input | Wide Range +9~36V |
| Dimension | 2.5" Plus (110 x 98 mm) |
| Operation Temperature (100 % CPU Usage) |
-25°C~60°C (100% CPU Usage, not-underclocking) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
SKY 2, ROCK |
| OS Support | Linux |
|
Others |
Function Category |
Description |
|---|---|---|
|
CIO108 |
Digital I/O board |
Optocoupler isolated 4DI 4DO Board (4 SSR DI / 2 SSR DO + 2 delay DO) |
|
CIO208 |
Digital I/O board |
Optocoupler isolated 4DI 4DO Board |
|
CIO308 |
Digital I/O board |
Optocoupler isolated 4DI 4DO Board (Optocouplerr DI / 2 SSR DO + 2 Relay DO) |
|
CIO408 |
Digital I/O board |
Optocoupler isolated 4DI 4DO Board with DC12V output up to 40W |
|
M113A-S+CIO116-B |
Digital I/O board |
Optocoupler isolated 16DI 16DO solution (SMBus interface) |
|
CIO116-G |
Digital I/O board |
Optocoupler isolated 8DI 8DO board (SMBus interface) |
|
CN059 |
Display & Audio board |
USB to Audio module |
|
AU002 |
Display & Audio board |
USB to Audio with Audio AMP |
|
CC007 |
Serial Board |
Non-Isolated USB to 4 port RS232/422/485 board |
|
PW351 |
PoE Module |
1 port PSE up to 25.5W |
|
PW352 |
PoE Module |
2 port PSE up to 30.8W |
|
PW205 |
Power Board |
Wide range DC IN with CPC function |
|
PW206 |
Power Board |
DC to DC Redundant Power Board |
|
PW208 |
Power Board |
Wide range DC IN witn Surge stopper function |
|
DP001 |
Display & Audio board |
eDP to VGA |
|
eDP001 |
Display & Audio board |
eDP to LVDS |
|
eDP003 |
Display & Audio board |
eDP to DVI |
|
eDP004 |
Display & Audio board |
eDP to HDMI |
|
Part Number |
Sensor |
Resolution |
View Angle |
Chromaticity |
Shutter Type |
Interface |
|---|---|---|---|---|---|---|
|
onsemi AR0144 |
1MP |
33° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0144 |
1MP |
83° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0234 |
2MP |
32° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0234 |
2MP |
83° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0234 |
2MP |
128° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0521 |
5MP |
34° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0521 |
5MP |
85° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0521 |
5MP |
140° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
34° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
34° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
85° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
85° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
140° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
140° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
44° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
74° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
119° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
156° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
42° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
42° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
72° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
72° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
108° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
108° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
150° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
150° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR1335 |
13MP |
85° |
Color |
Rolling |
MIPI CSI-2 |
