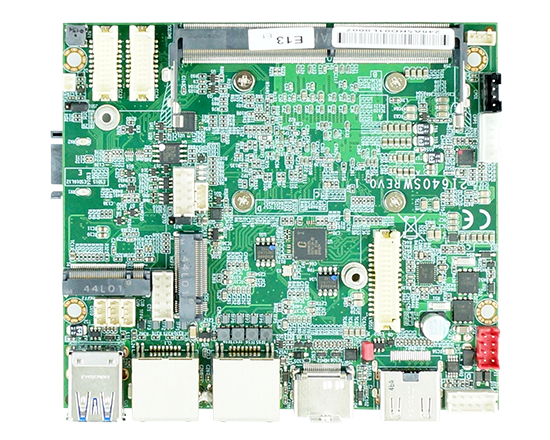

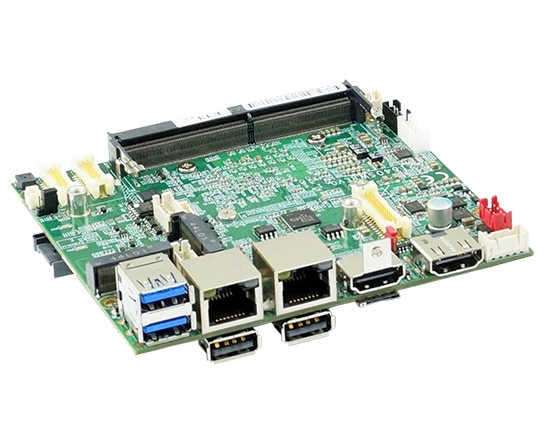

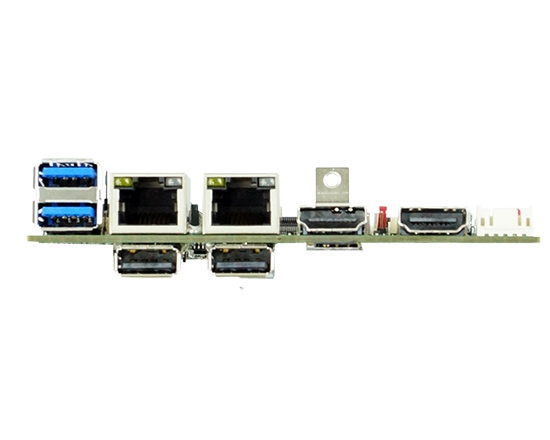

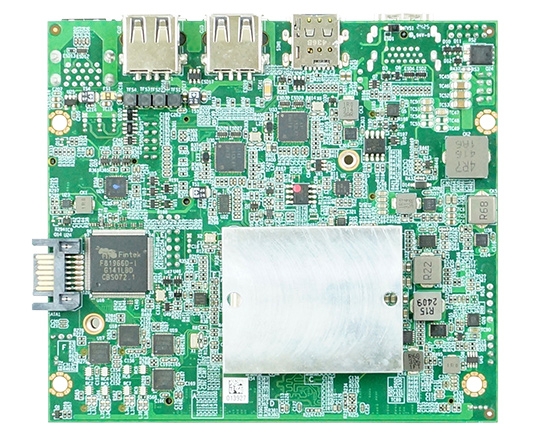

Single Board Computer
2I640SW
2.5" Embedded IPC Board supports
Intel® Elkhart Lake ATOM® x6413E / J6412 CPU

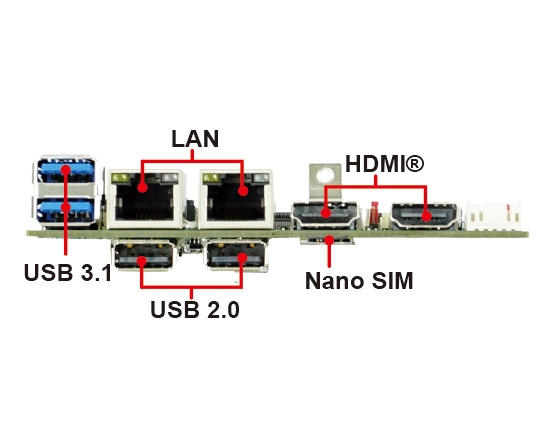

2 x HDMI®, LVDS, 2 x Intel 2.5 Gb Ethernet, 7 x USB, Touch Screen,
4 x COM, 2 x M.2, 1 x Nano SIM, 4DI/4DO
Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
2 x HDMI®, LVDS, 2 x Intel 2.5 Gb Ethernet, 7 x USB, Touch Screen,
4 x COM, 2 x M.2, 1 x Nano SIM, 4DI/4DO
Overview
2I640SW is a 2.5” plus (110 x 98 mm) embedded board and base on Intel Atom® x6000E Series and Celeron® J (formerly Elkhart Lake )Series processors. Running with Intel® UHD Graphics ,2I640SW provide high-performance and full –features with integrated 2 x 2.5 GbE LAN, 7 x USB, 4 x COM Port , 2 x HDMI® (1 can OEM to DP) , LVDS display interface, Touch Screen and 2 x M.2, 1 x Nano SIM expansion slot offers the ideal platform for graphics performance with integrated IoT features, real-time performance, manageability, and security.
The compact size feature makes 2I640SW well suited for many space-limited and thermally constrained embedded applications, such as In-Vehicle Infotainment, Intelligent Control, Factory Automation Industry 4.0,Internet of Things (IoT) and Edge Computing applications.

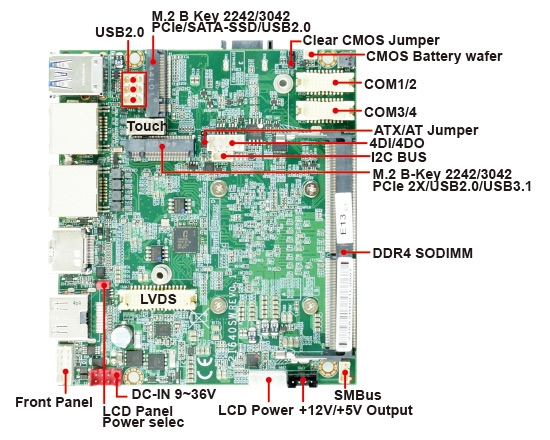

Features
- Intel® Elkhart Lake ATOM® x6413E /J6412 CPU
- 1 x DDR4 SODIMM Max 32GB
- Independent display: 2 x HDMI®, LVDS / eDP
- 2 x Intel 2.5 GbE LAN, 2 x USB 3.1, 5 x USB 2.0
- 4 x COM, 2 x M.2, 1 x Nano SIM
- Touch Screen, 4DI/4DO
- TPM 2.0 (Firmware)
| MODEL | 2I640SW |
|---|---|
| CPU | Intel® Elkhart Lake ATOM® x6413E /J6412 CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | 1 x DDR4 SODIMM Max 32GB |
| Storage | 1 x SATA 1 x M.2 B Key Type 2242 / 3042 (PCIe / SATA-SSD / USB 2.0), Support NVMe SSD |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI® (1 can OEM to DP), 1 x LVDS / eDP |
| Touch Screen | USB interface Touch Screen controller |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 2 x Intel 2.5 GbE I226 (external) |
| Expansion Interface | 1 x M.2 B Key Type 2242 / 3042 (PCIe x2 / USB 3.1/ USB 2.0) 1 x M.2 B Key Type 2242 / 3042 (PCIe / SATA / USB 2.0) 1 x Nano SIM |
| Expansion Module | Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video M.2 Module : 4G / 5G, SATA, PCIe By Cable : Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card |
| USB | 2 x USB 3.1 (external) ; 2 x USB 2.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (internal) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V |
| Dimension | 2.5" plus (110 x 98 mm) ; Weight: 105g |
| Operation Temperature (100% CPU Usage) |
-20°C~70°C (100 % CPU Usage) ; -40°C by x6413E CPU |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | TERA ; SKY 2 ; NET-II |
| OS Support | Windows® 10 IOT (64bit), Windows®11 Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073+ME225 | Capture Card | HDMI video capture card |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CN073+CL006 | Converter Board | USB 3.0 to 4 x USB 3.0 |
| M113A-S+CIO116-B | Digital I/O board | Optocoupler isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP001 | Display & Audio board | eDP to LVDS |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
