ARM-based SBC
2NOR02
Overview

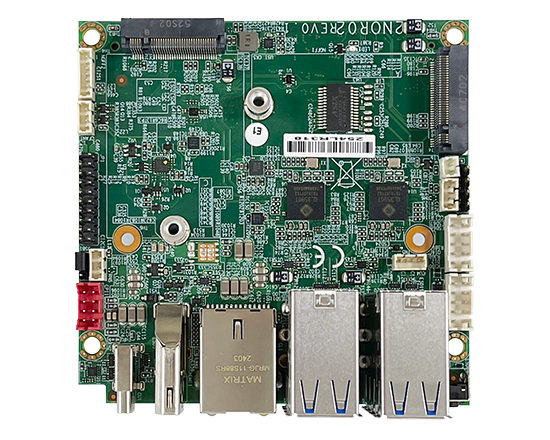

The LEX SYSTEM compact 2NOR02 carrier board harnesses the power of NVIDIA Jetson Orin NX / Nano (Super) modules to deliver outstanding AI performance, ranging from 40 to 100 TOPS at the edge. Purpose-built for compute-intensive AI video applications, the 2NOR02 offers a comprehensive set of I/O interfaces, including 1 x GbE, HDMI®, 8 x USB 3.1, 1 x USB Type-C (USB 3.1/2.0 OTG), 1 x RS232, 2 x M.2 slots, and Nano SIM (OEM) connectors. With its wide-range DC-IN power support, the 2NOR02 is perfectly suited for implementing AI-driven video solutions and meeting the evolving demands of Edge AI deployments.
Features
CPU Board :
- NVIDIA Jetson Nano(Super): 4 / 8GB LPDDR5, 20 / 40 TOPs
NVIDIA Jetson NX: 8 / 16GB LPDDR5, 70 / 100 TOPs - AI Accelerator: NVIDIA® Jetson Orin™ Nano (Super) / Orin™ NX
- 1 x HDMI®, 1 x GbE

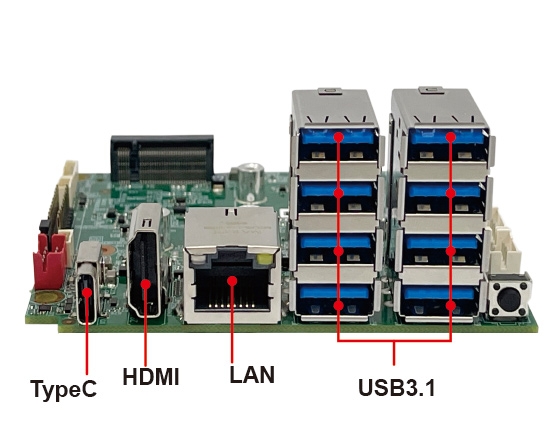

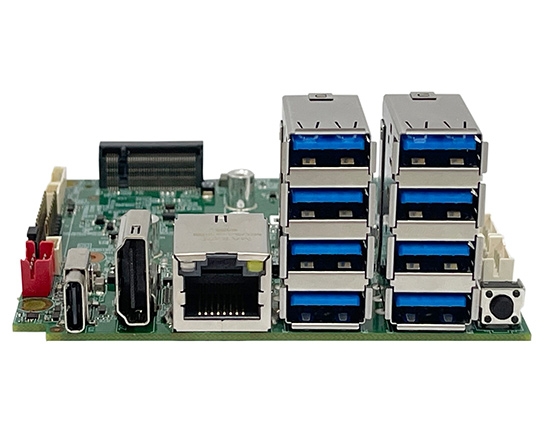

- 8 x USB 3.1, 1 x Type C USB 3.1 / 2.0 (OTG), 1 x USB 2.0
- 1 x RS232 (OEM to RS422)

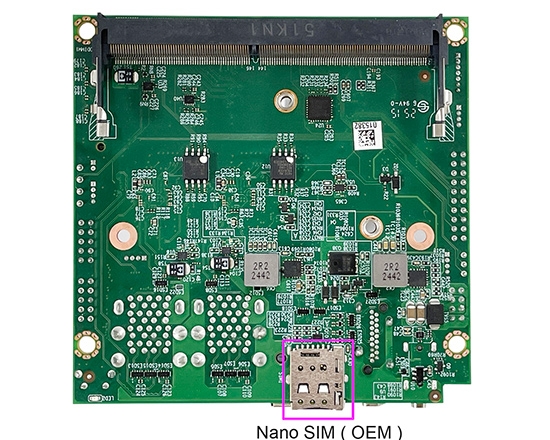

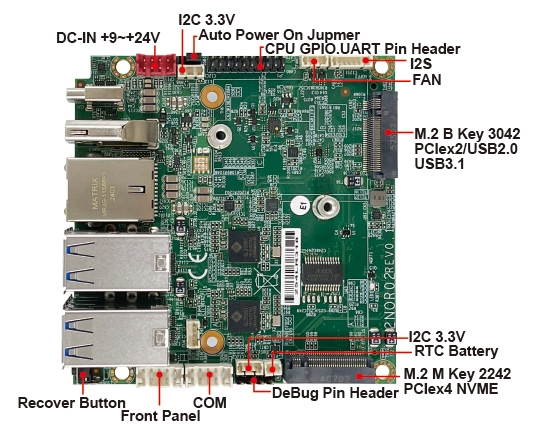

- 1 x M.2 M key, 1 x M.2 B key, 1 x Nano SIM (OEM)
- URAT, I2S, 2 x I2C
| MODEL | 2NOR02 |
|---|---|
| CPU |
8-core Arm® Cortex®-A78AE 2.0 GHz |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| AI Accelerator |
NVIDIA Jetson Orin NX: 70 / 100 TOPs |
| System Memory | Jetson Orin NX: LPDDR5, 8 / 16GB Jetson Orin Nano(Super): LPDDR5, 4 / 8GB |
| Storage | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe |
| Display | 1 x HDMI® |
| LAN | 1 x GbE (RJ45) |
| Expansion Interface | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe 1 x M.2 B key Type 3042 (PCIe x 2 / USB 2.0) (OEM To USB3.1 / 2.0) ; 1 x Nano SIM (OEM) |
| USB | 8 x USB 3.1 Type A(external) ; 1 x Type C USB 3.1 / 2.0 (OTG) 1 x USB 2.0 (internal) |
| Serial IO | 1 x RS232 (OEM Option RS422) |
| URAT, I2C, I2S | 1 x URAT (internal) 2 x I2C (internal) 1 x I2S (internal) |
| Power Input | DC-IN +9V~24V |
| Dimension | 85 x 83 mm |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
Box PC: PALM |
| OS Support | Linux |
|
Model |
Function Category |
Description |
|---|---|---|
|
Networking / Communication |
PCIe to GbE LAN |
|
|
NF212B+CL002 |
Networking / Communication |
PCIe to Dual GbE LAN |
|
PoE Module |
1 port PSE up to 25.5W |
|
|
PoE Module |
2 port PSE up to 30.8W |
|
|
Networking / Communication |
PCIe to 2.5G LAN |
|
|
NF226B+CL002 |
Networking / Communication |
PCIe to Dual 2.5G LAN |
|
PoE Module |
1 port PSE up to 25.5W |
|
|
PoE Module |
2 port PSE up to 30.8W |
|
|
CN073-S3+ME225-S |
Capture Card |
HDMI video capture card High Speed Micro Coaxial Cable |
|
Display & Audio board |
USB to Audio module |
|
|
Display & Audio board |
USB to Audio with Audio AMP |
|
|
Serial Board |
Non-Isolated USB to 4 port RS232/422/485 board |
|
|
Power Board |
Wide range DC IN with CPC function |
|
|
Power Board |
DC to DC Redundant Power Board |
|
|
Power Board |
Wide range DC IN witn Surge stopper function |
|
Part Number |
Sensor |
Resolution |
Chromaticity |
Shutter Type |
Lens |
Enclosure |
Output Format |
|---|---|---|---|---|---|---|---|
|
onsemi AR0144 |
1MP |
Color |
Global |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0144 |
1MP |
Color |
Global |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0144 |
1MP |
Color |
Global |
S-Mount |
Board Level |
USB Type-C |
|
|
onsemi AR0145 |
1MP |
Mono |
Global |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0145 |
1MP |
Mono |
Global |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0145 |
1MP |
Mono |
Global |
S-Mount |
Board Level |
USB Type-C |
|
|
onsemi AR0234 |
2MP |
Color |
Global |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0234 |
2MP |
Color |
Global |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0234 |
2MP |
Color |
Global |
S-Mount |
Board Level |
USB Type-C |
|
|
onsemi AR0521 |
5MP |
Color |
Rolling |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0521 |
5MP |
Color |
Rolling |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0521 |
5MP |
Color |
Rolling |
S-Mount |
Board Level |
USB Type-C |
|
|
onsemi AR0522 |
5MP |
Color, Mono |
Rolling |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0522 |
5MP |
Color, Mono |
Rolling |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0522 |
5MP |
Color, Mono |
Rolling |
S-Mount |
Board Level |
USB Type-C |
|
|
onsemi AR0821 |
8MP |
Color |
Rolling |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0821 |
8MP |
Color |
Rolling |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0821 |
8MP |
Color |
Rolling |
S-Mount |
Board Level |
USB Type-C |
|
|
onsemi AR0822 |
8MP |
Color, Mono |
Rolling |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0822 |
8MP |
Color, Mono |
Rolling |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR0822 |
8MP |
Color, Mono |
Rolling |
S-Mount |
Board Level |
USB Type-C |
|
|
onsemi AR1335 |
13MP |
Color |
Rolling |
S-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR1335 |
13MP |
Color |
Rolling |
C-Mount |
Closed Housing |
USB Type-C |
|
|
onsemi AR1335 |
13MP |
Color |
Rolling |
S-Mount |
Board Level |
USB Type-C |
